Specifications
5liter plastic bottle making machineadvanced technology
good qualiy
competive price
HDPE bottle making machine
5liter plastic bottle making machine
Technical Parameters: ( ABLB 90 )
Max. Product volume |
30 liters |
Output capacity |
50~80pc/h |
Screw diameter |
90mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
37 KW |
Screw heating capacity |
18 KW |
No.of heating zone |
4 zones |
Output of HDPE |
130 KG/H |
Oil pump drive power |
30 KW |
Clamping force |
260 KN |
Max.size of mold |
700X950mm |
Mold stroke |
450-1000mm |
Max.die diameter |
340mm |
Die heating power |
7.6 KW |
Die heating segments |
4 zones |
Blowing pressure |
0.8mpa |
Air volume |
1.0 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
90 L/MIN |

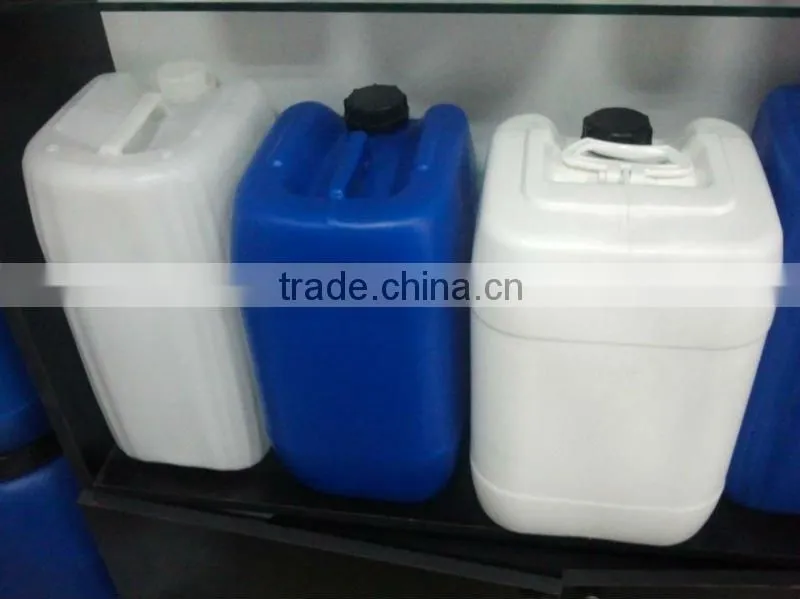

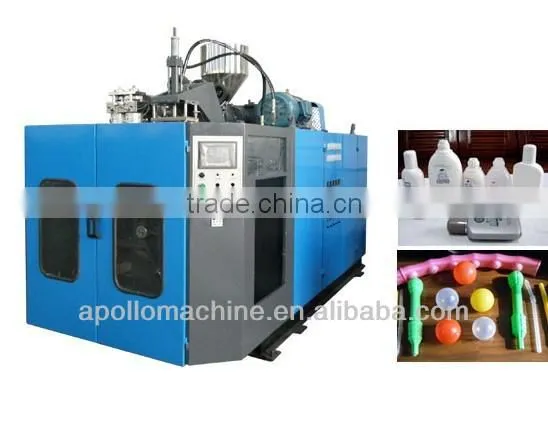

Some pics of machine and final products
Payment Info. HDPE bottle making machine
Advising bank: UAgricultural Bank of China, Suzhou Branch
Account No: 10525814040010761
Swift Code: ABOCCNBJ103
Beneficiary: Zhangjiagang Apollo Machinery Co., Ltd
DELIVERY:
Delivery no later than 45 days, after we received the deposit.
Packing:
Standard export packing for sea freight by 40’ CY
WARRANTY:
We warranty the quality of this machine for 12 months ,if there is any problem with the machine ,or any main parts are broken,we will repair it or replace new for free.
TRAINNING:
The seller should train two or three operating man for free. (Travel and hotel is by buyer’s expenses.)
INSTALLATION AND TEST
The buyer should place the machine to the right position and inform the supplier after the machine reach the buyer’s factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation, and hotel and so on in BUYER’S side. And the buyer will pay USD40/day/person as technician labor cost when he leaves factory until leave client’s plant.
VALIDITY OF OUR OFFER:
The offer is valid for any order placed within a period of 30 days. Unless otherwise stated, all conditions and terms are based on this list.
The offer is offered for the buyer’s need in selecting and not act as the enclosure of contract. The contract is the only standard.
The particular technical data are shown in the enclosure. If there is some further need please get in touch with us immediately.
