Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > 5 Liter Oil Bottle Blow Molding Machine

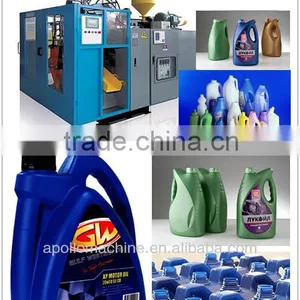

5 Liter Oil Bottle Blow Molding Machine

Name: 5 Liter Oil Bottle Blow Molding Machine
Brand: 5 liter oil bottle blow molding machine
SKU: 131201151
Availability: InStock

5 Liter Oil Bottle Blow Molding Machine thumbnail-1

5 Liter Oil Bottle Blow Molding Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Bottle

Plastic Processed:

Contact Supplier Request Quote Chat Now

Zhangjiagang Apollo Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Bottle

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name 5 liter oil bottle blow molding machine

Model Number ABLB75

Voltage 220V/415V/380V

Power(W) 31KW

Dimension(L*W*H) 3.8X2.2X2.8M

Weight 8TON

Certification CE/SGS

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

5 liter oil bottle blow molding machine
advanced technology
excellent production team
short delivry time

5 liter oil bottle blow molding machine

5L PE blow moulding machine

Model No.: ABLB75Ⅱ(Double station single die head)

ABLB75Ⅱ5L PE blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles,detergent bottles ,cosmetic bottles, and other plastic containers not over 7.5L.

The features of this machine:

(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the duct volume is up to 7.5L.

(2)Double station single die head design,Stable and efficient.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

(5)Multiple screw available for double layer or tranparent liquid lever line.

(6)Auto deflashing device available,can remove the extra parts of bottles.

(7)Auto lubricant system controlled by PLC.

Main parts of Machine


Explanation

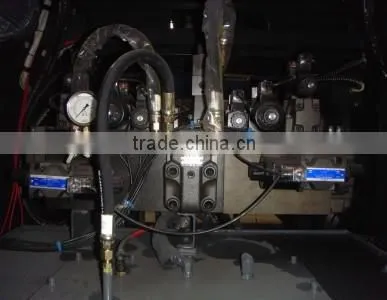

Oil Pump

Oil pump From Japan YUKEN driving the machine

Computer control system (PLC)

Japanese Mitisubishi PLC

Used to control all electrial components and touch screen

Die head

Single die head

Stable and easy to maintenance

Auto deflashing unit

This device is able to remove the extra parts of products

Product after auto-deflashed

Perfect product

Save your manual

Cost.

Electric Cabinet

This part is the full electric components of the machine

The main components of the machine.( ABLB75Ⅱ)

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO

Technical Parameters: ( ABLB75Ⅱ)

Max. Product volume	7.5 liters
Output capacity	150~180pc/h
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	7 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	148-568mm
Mold stroke	400 X 450mm
Max.die diameter	160mm
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	3.8x2.2x2.8m
Weight of machine	8 ton
