Aluminum Door and Window Machine
US$ 3,000 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Better
Model Number:
LJJ-140
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Window Cutting MachineUS$ 950 - 1,050MOQ: 1 Set -
Single Head Welding Machine PVC Doors and Windows MachineryUS$ 1,900 - 2,100MOQ: 1 Set
-
PVC Window and Door Four Heads Seamless Welding Machine Upvc Profile Welding Machine-vinyl Window Welding MachineUS$ 7,900 - 8,300MOQ: 1 Set
-
Double Head Welding Machine for Upvc Windows and DoorsUS$ 1,100 - 1,900MOQ: 1 Set
-
UPVC Window Door Frame Process MachineUS$ 950 - 1,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Better
Model Number
LJJ-140
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Specifications
Corner Connector Cutting Saw
1.CE&ISO
2.Power supply:380V 50Hz
3.Motor power:2.2kw
4.Less resistance

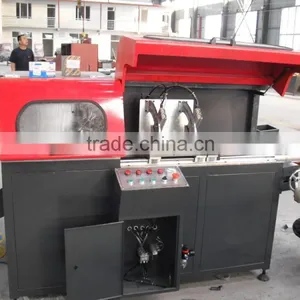

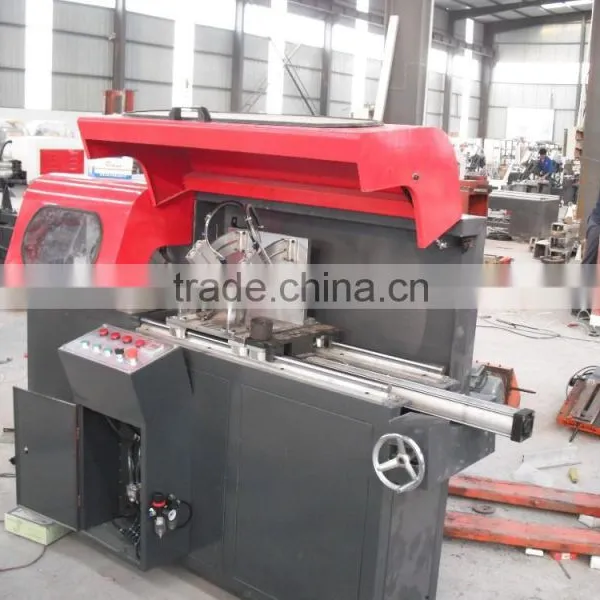

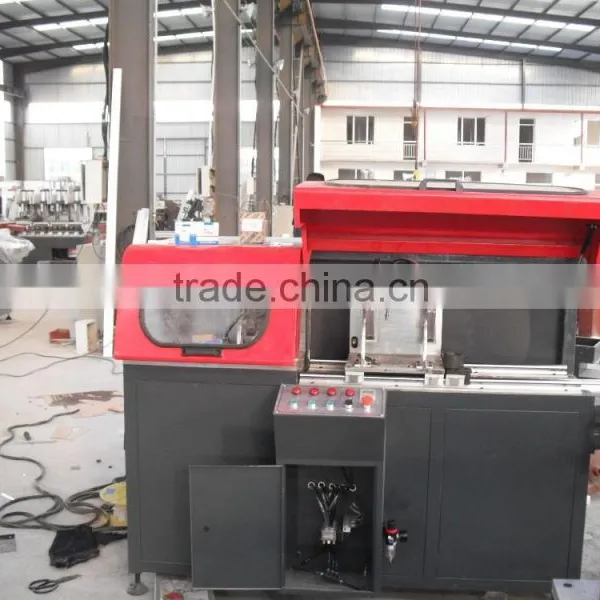

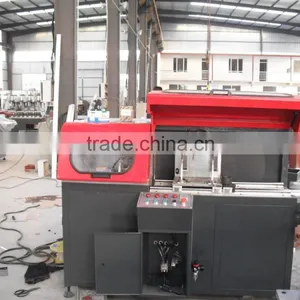

Corner Connector Cutting Saw
1.Descriptions:
- It is a full automatic machine specially used to cut the profiles of aluminum doors and windows at angles.
- After you manually install the profiles, all the other operations are automatic .There is digital display of cut quantity.
- The main spindle of machine is manufactured by the specialized manufacturer of main spindle of the machining center.
- The guiding and clamping device ensures no residual sharp comers even in cutting 3mm long comers
- Hydraulic damping cylinder is equiped to drive the feeds for cutting the machine body adopts integral construction with good rigidity.
2.Technical Date:
| Power supply | 380V 50Hz |
| Cutting motor power | 2.2kw |
| OPeration air pressure | 0.4 ~ 0.6Mpa |
| BLade rotational speed | 2840 r/min |
| Saw blade specification | D=450mm d=30mm |
| Cutting length | Min3mm Max100mm |
| Contour dimension(L×W×H) | 1200×1100×1500mm |
| Cutting width×height | 140×280mm |
| Machine weight(about) |
850kg
|

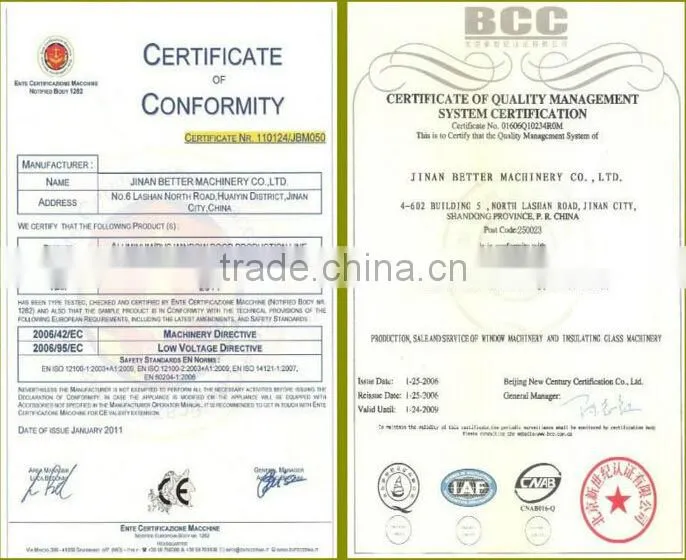

3.Certifications:

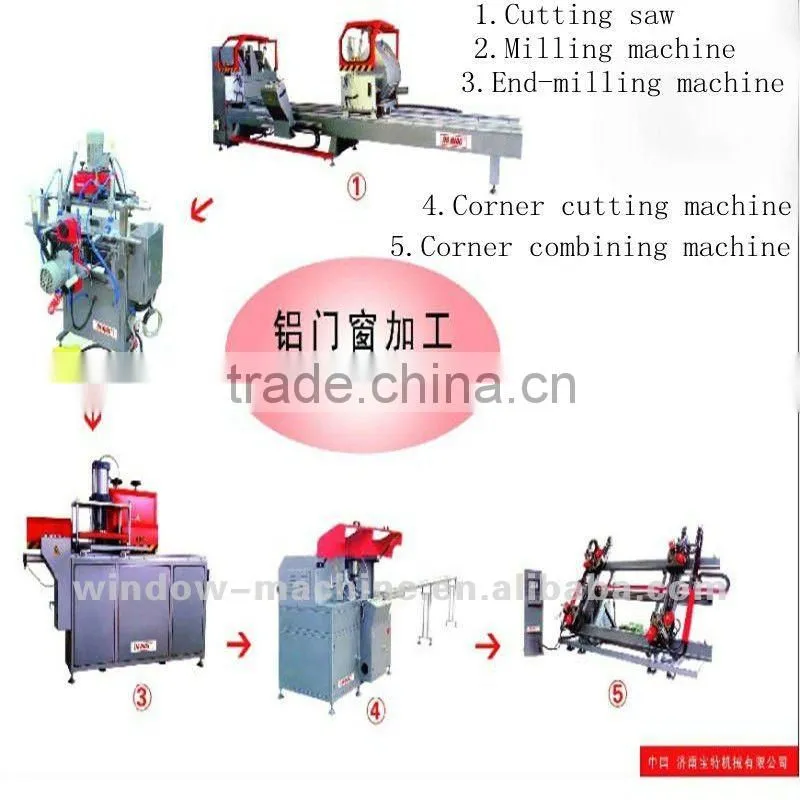

4.Processing steps for aluminum door and window

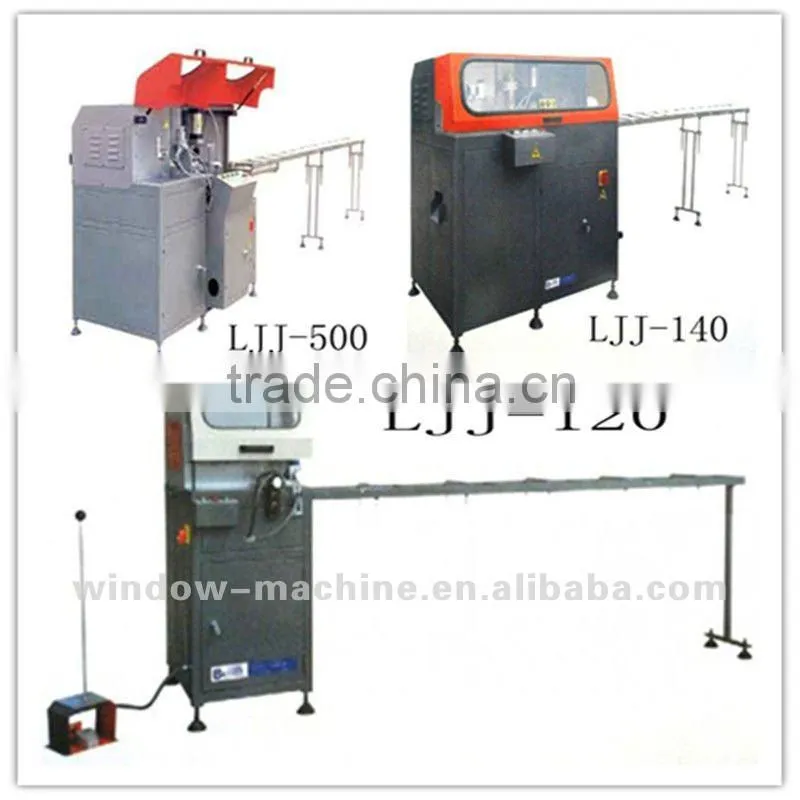

5.Other Corner Connector Cutting Saws
6.Manufactured sample
