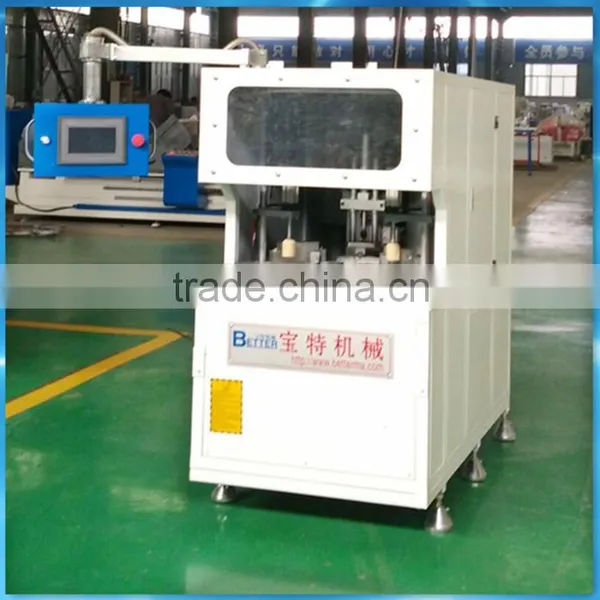

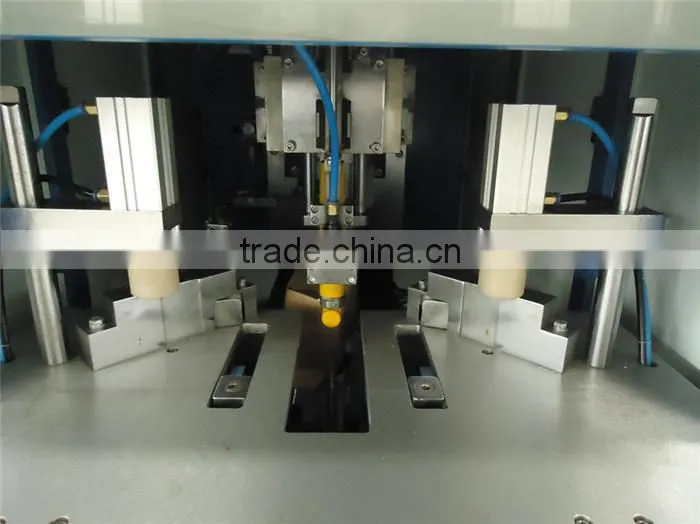

UPVC Profiles window Corner Cleaning Machines,model:JQK04-120

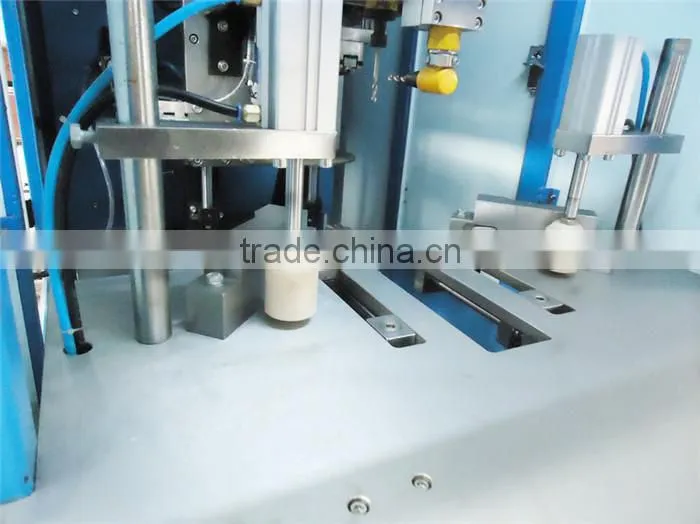

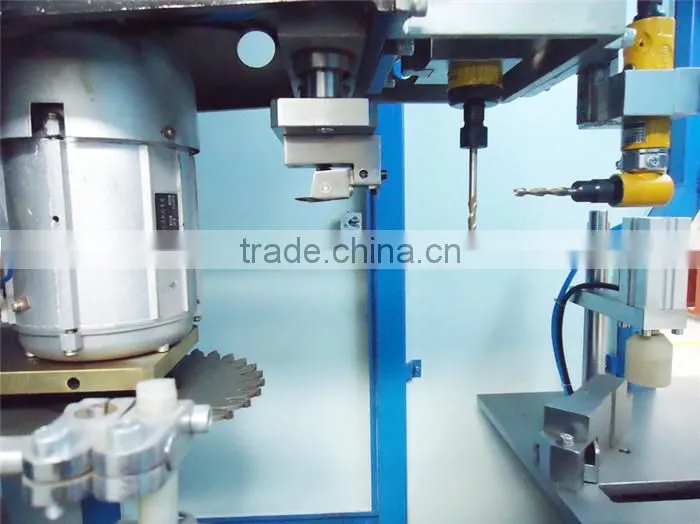

The machine is used for profile welding seam cleaning,perfect cleaning and high process accuracy due
to size error compensation function.Imported servo drive system,computer control system,touch screen
operate and so on.Easy programming with monitoring system.Can store more than 100 processing programs
according to different profiles.Can clean outside vertical surface,up bottom welding seam,internal bevel
section ,seam in the track of the sliding profile,rubber seam groove part and so on.This machine has features
of easy adjustment and high automation, It is an ideal equipment for large scale and various profiles.This CNC corner cleaning machine can be equipped with 3 cutters,5 cutters or 6 cutters according to your needs.The 3 cutters type can clean upper,lower surface and external side welded seams.The 5 cutters type can clean upper,lower surface,external side and rubber strip grooves.The 6 cutters type can clean upper,lower surface,external side and internal side, rubber strip grooves.
Working Air Pressure | 0.5-0.8Mpa |
Air Consumption | 200L/min |
Power Supply | As required |
Input Power | 1.55kw |
Processing profile height | 30-150mm |
Processing profile width | 20-150mm |
Groove processing depth | ≤0.3mm |
Outside Dimension | 1620*1000*1500mm |
Weight(about) | 600kg |

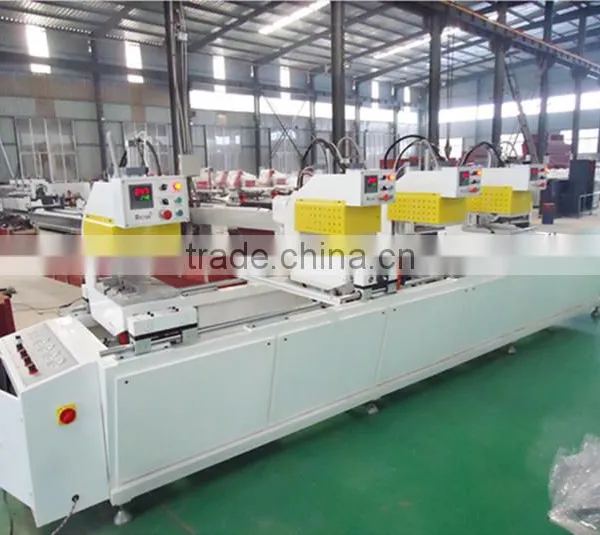

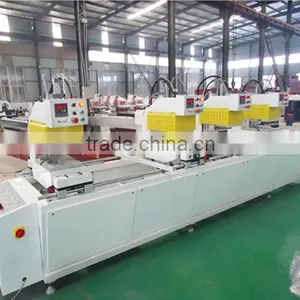

Seamless welding machines---One / two / three / four head
Seam (normal) welding machines---variable angle / one / two / three / four head

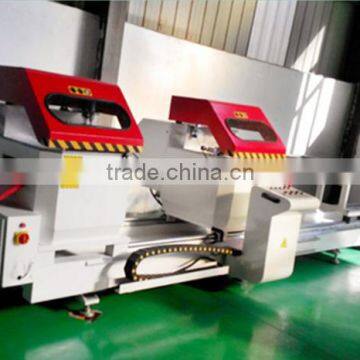

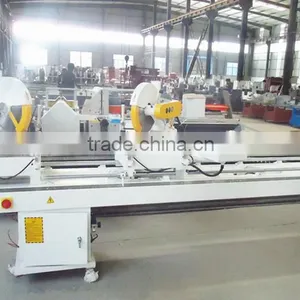

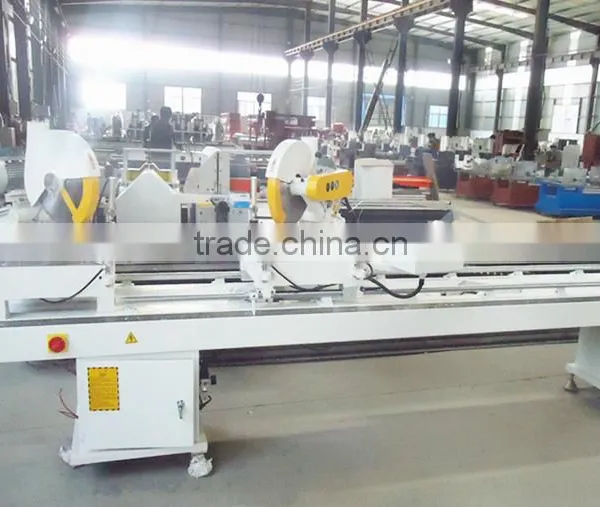

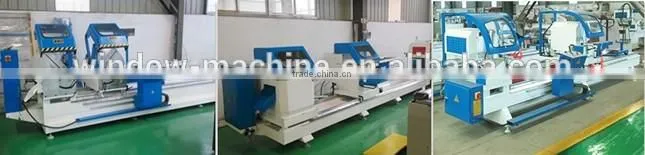

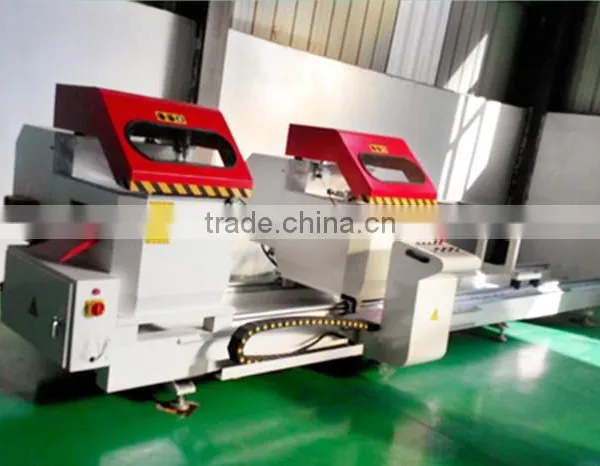

Cutting machines---Double head / Single head

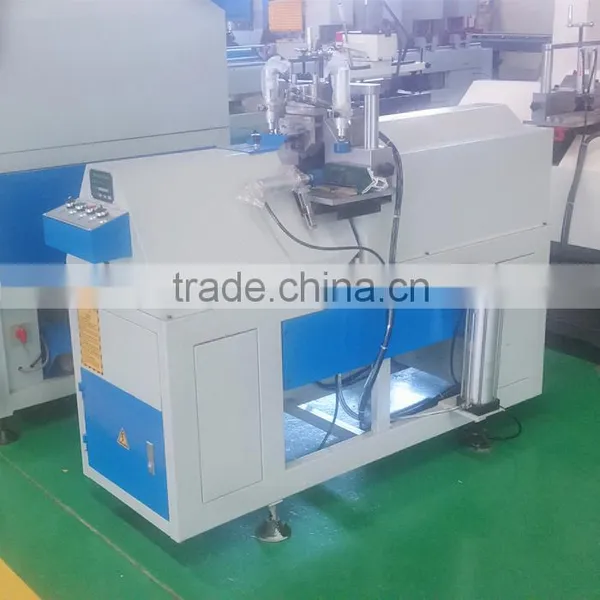

Steel reinforcement screw fixing machine,V corner cleaning machine,Arc bending machine

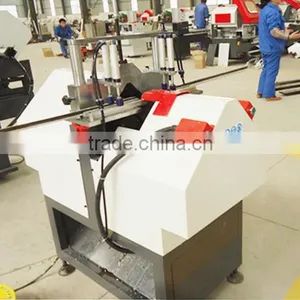

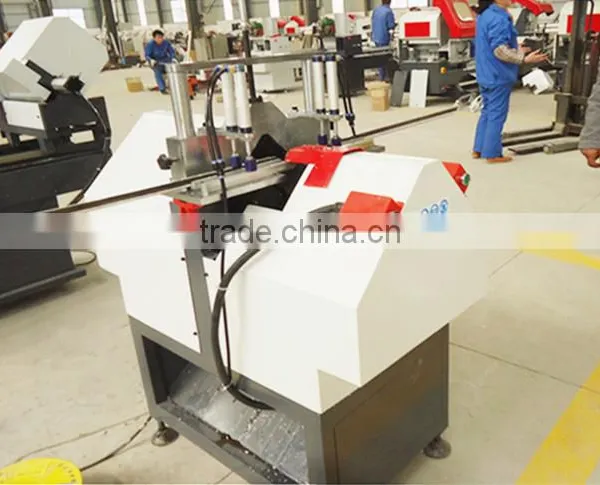

End milling machine,Lock hole and copy router milling machine
