Specifications
Double Glass Machine /Butyl Extruder1.Total power:5kw
2.CE&ISO
3.Automatic alu-frame locate
4.Reliable operation stable

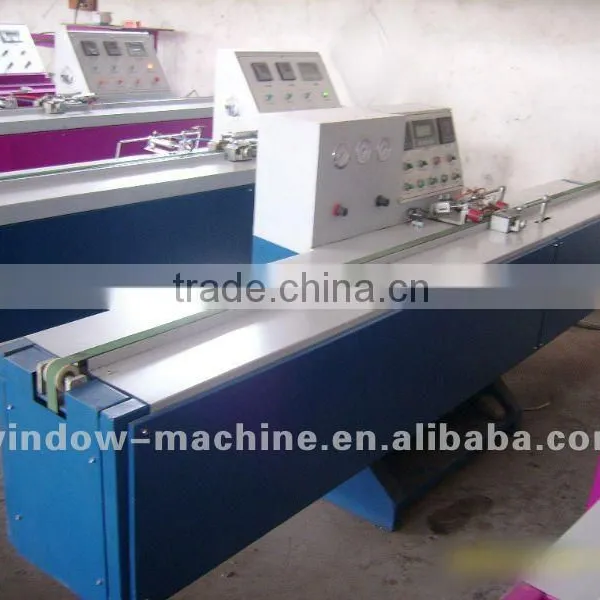

Butyl extruder machine Double glazing glass machine /Butyl Extruder
1.Descriptions:
1.The machine is the specialized equipment to apply the hot molten butyl sealant to both sides of the aluminum spacing frame unifoumly.
2. The only thing the operator needs to do is to hold the aluminum spacing frame and all the other operations(rolling. transfer. etc.)can be completed automatically as programmed, and hence convenient operation, stable and reliable operation, good effects of sealant extrusion and high production efficiency,
3.The machine adopts man-machine interface and it is indispensable to dualseal double-glazing glass manufacturing
2.Technical Date:
| Power Supply |
380V 50Hz
|
| Total power |
5kw
|
| Transmit speed |
7 m/min
|
| Temperature |
110°C-150°C
|
| Operation air pressure |
0.5~0.8Mpa
|
| Squeeze pressure |
12~15Mpa
|
| Adjustable range |
4-20mm
|
| Contour dimension(L×W×H) |
3300×800×1400mm
|
| Machine weight(about) |
850kg
|
3.Certification:
4.Processing steps
5.Other machines
6.Manufactured sample
