Low Sulfur Oil Output Continuous Waste Tire Oil Pyrolysis Plant
Brief Introduction
This pyrolysis production line is applied to process the tire scraps into liquid fuel oil, which achieves the high efficiency continuous production with great safety, zero environment performance, good society effect result and economic benefit.
The whole production line mainly includes: tire pretreatment system, constant temp heating system, continuous running pyrolysis system, closed-type carbon char discharging system, emission controlling system etc.

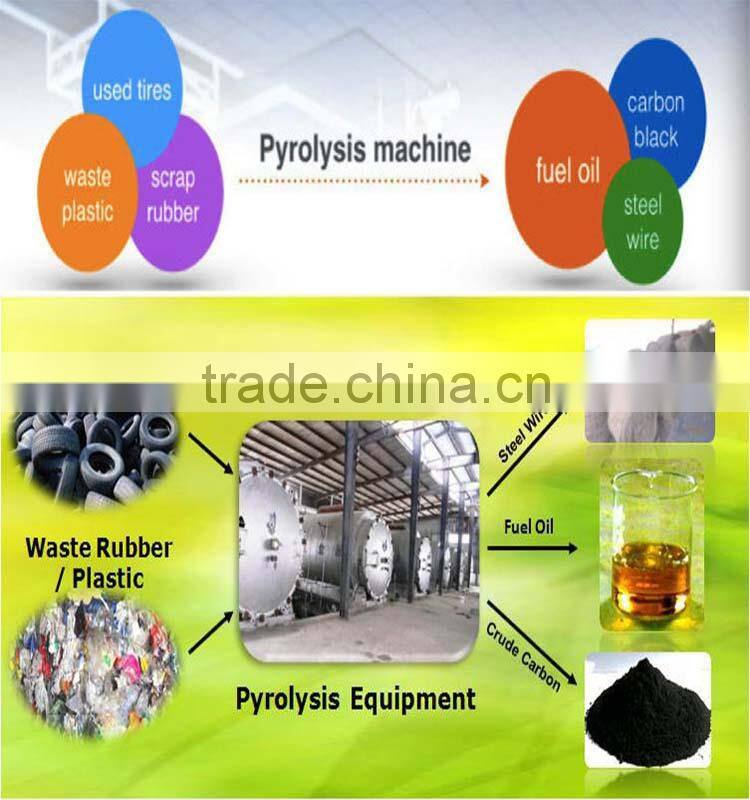

Working Flow Of The Pyrolysis System

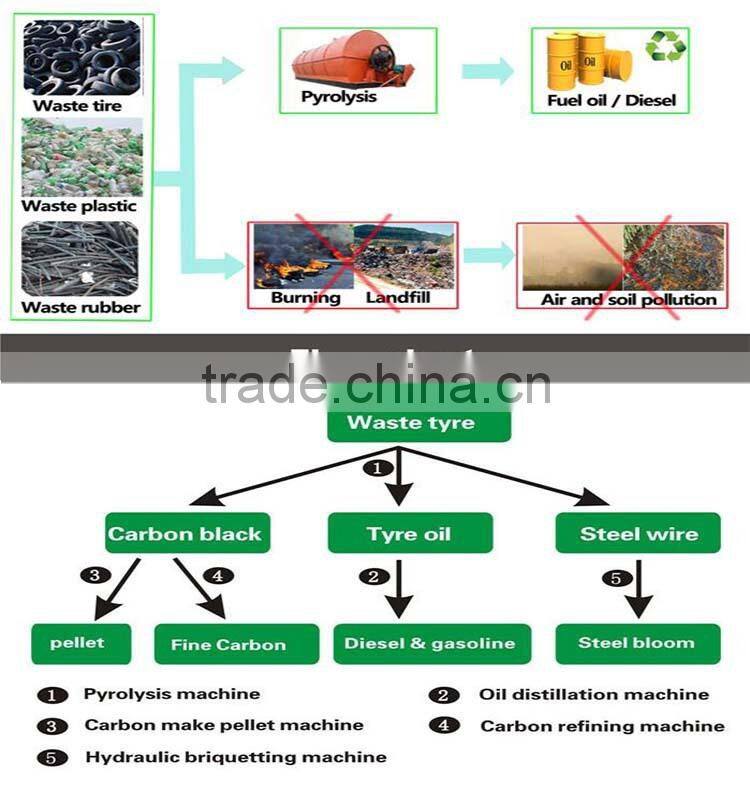

Products From The Pyrolysis Plant (Material: Waste Tyre)
NO. |
Name |
Percentage |
Usage |
1 |
Tyre oil |
45% |
* can be sold directly. * make diesel and gasoline by using oil distillation machine. * can be as fuel. |
2 |
Carbon black |
30% |
* can be sold directly. * make fine carbon by using carbon black refining machine. * make pellet by using carbon pelleting machine. |
3 |
Steel wire |
15% |
* can be sold directly. * make steel bloom by using hydraulic press-packing |
4 |
Oil gas |
10% |
* can be as fuel burn by using gas burn system (pyrolysis machine included) *extra gas also can be storage as fuel for other heating. |
All Kinds OF Fuel Can Be Used For Heating
Tyre Oil Parameter

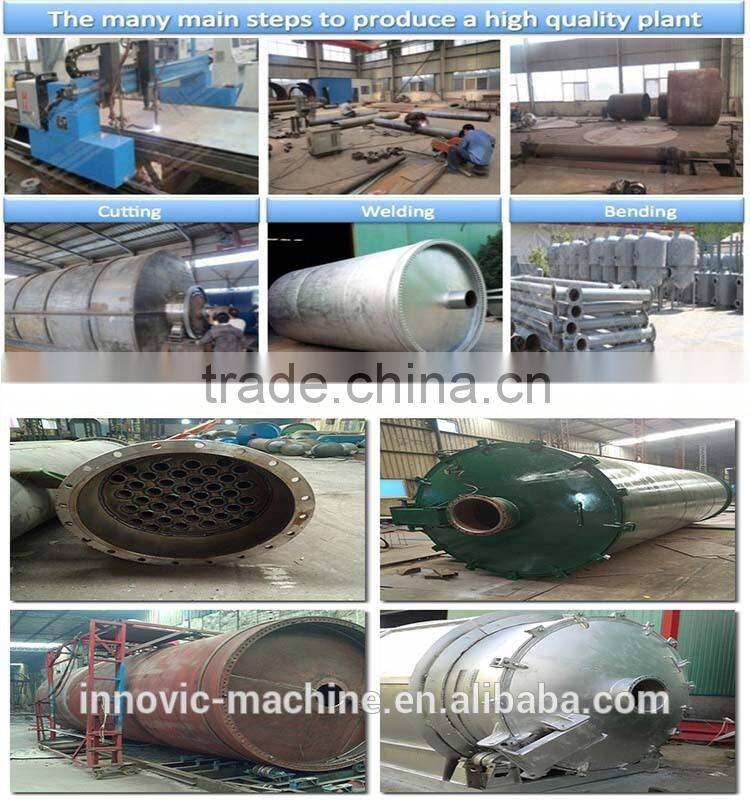

Workshop And Product

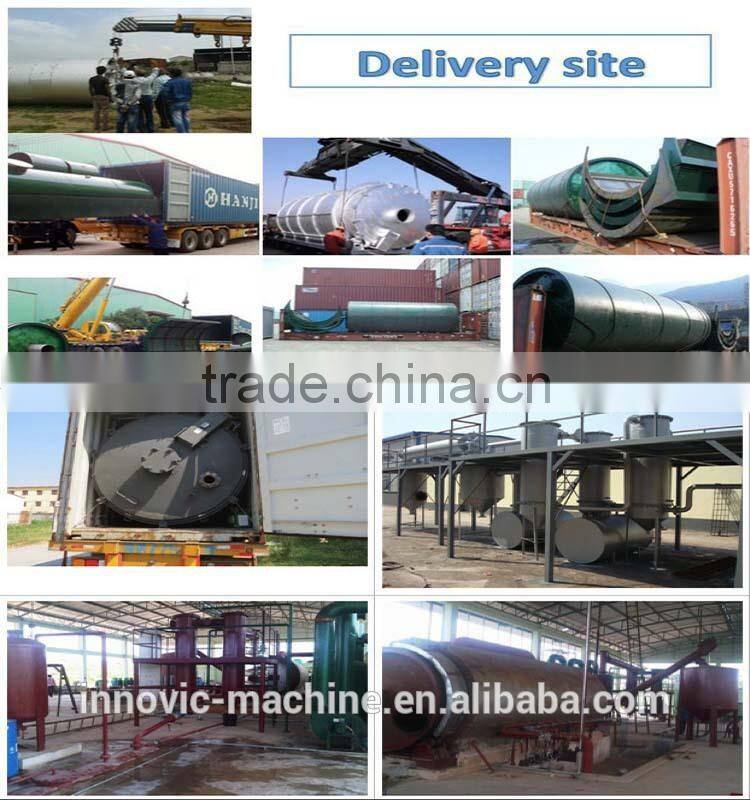

Delivery And Installation
After-Sale Services
1, Tracking service for products for two years, and lifetime warranty;
2, we provide maintenance and replacement service ;
3, Reminding for the service life of the wearing parts, we just provide the wearing parts paid as its cost;
4, we will send 1-2 engineers to customer’s site for installation and training for free.
Certifications
