Help CenterDirect Heating Mode Waste Tire Recycling Plant for Tire Pyrolysis Heavy Oil/carbon Black and Steel
Related Products
-
Tyre Pyrolysis to Oil Machine With Short Investment Payoff PeriodUS$ 35,000 - 70,000MOQ: 1 Set -
20T/Day Continuous Tyre Pyrolysis MachineUS$ 35,000 - 70,000MOQ: 1 Set
-
Continuous Tire Recycling Machine for Crude OilUS$ 35,000 - 70,000MOQ: 1 Set
-
2015 Custom-made Waste Tire Pyrolysis MachineUS$ 35,000 - 70,000MOQ: 1 Set
-
New Design Continuous Waste Tire Recycling EquipmentUS$ 15,000 - 50,000MOQ: 1 Set
A. The model of our waste tire recycling plant:
| No. | Reactor size(mm) |
Weight(MT) |
Volume(M3) |
Capacity( MT/D) |
1 |
2200*2200*6000 |
27 |
23 |
5 |
2 |
2200*2200*6600 |
29 |
25 |
6 |
3 |
2600*2600*6000 |
32 |
32 |
8 |
4 |
2600*2600*6600 |
34 |
35 |
9 |
5 |
2800*2800*6000 |
35 |
37 |
10 |
6 |
2800*2800*6600 |
38 |
41 |
12 |
B. The technical parameter of waste tire recycling plant:
1 |
Model |
2200-6000 |
2200-6600 |
2600-6600 |
2800-6000 |
2800-6600 |
2 |
Capacity |
5 Ton/D |
6 Ton/D |
9 Ton/D |
10 Ton/D |
12 Ton/D |
3 |
Power |
8-11kw |
8-11kw |
12-17kw |
12-17kw |
12-17kw |
4 |
Material |
tyre/rubber/plastic |
||||
5 |
Structural form |
Horizontal rotation |
||||
6 |
Operating pressure |
Constant pressure |
||||
7 |
Reactor speed |
0.4 turn /minute |
||||
8 |
Mode of cooling |
Water cooling |
||||
9 |
Type of drive |
Internal gear drive |
||||
10 |
Noise dB(A) |
≤85 |
||||
11 |
Heating mode |
Direct heating |
||||
12 |
Dispatch period |
20 days after receiving the down payment |
||||
C. The main parts of waste tire recycling plant:
1) Rotatable reactor 10)Cooling pool 19) Water pump
2) Machine cove 11)Induced Draft fan
3) Main machine base 12) Speed reduce
4) Oil-gas separator 13)Dust removing system
5) Catalyst tower 14)Waste gas burners
6) Coil cooling system 15)Blowers
7) Light oil tank 16)Electric cabinet
8) Heavy oil tank 17)Pressure meter
9) Water sealing tank 18)Temperature meter
D. The flow chart of waste tire recycling plant:
Waste tire broken → automatic feed → catalytic cracking → oil water separation → cooling liquid → carbon black emission
→ carbon black processing → crude oil → flammable gas recovery → flammable gas combustion → desulfuration removal.

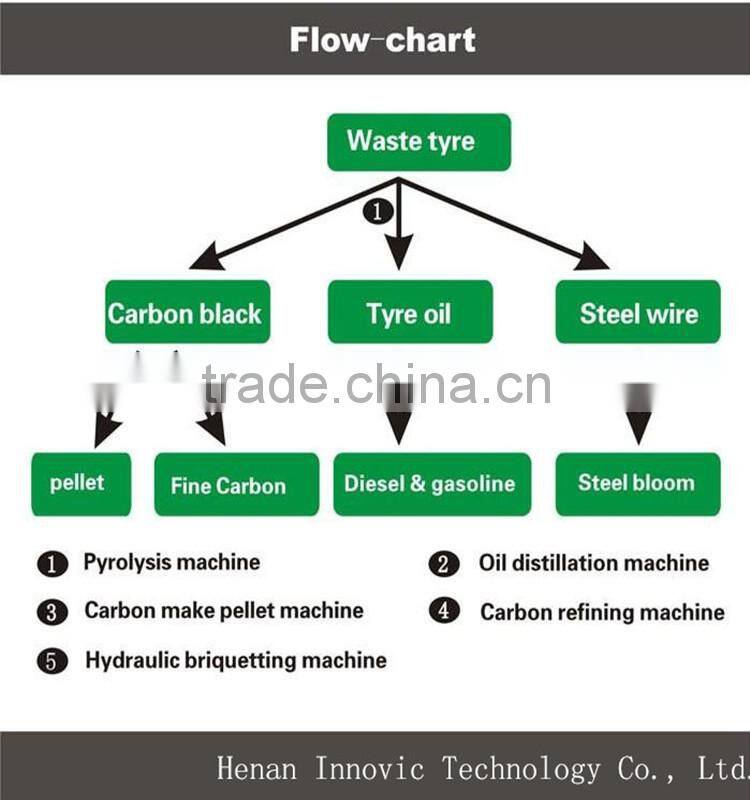

E. The output percentage and usages:
No. |
Name |
Percentage |
Usage |
|
1 |
Tyre oil |
45% |
a.can be sell directly b.make diesel and gasoline by using oil distillation plant c.can be as fuel |
|
2 |
Carbon black |
30% |
a.can be sell directly b.make fine carbon by using carbon black refining machine c.make pellet by use carbon make pellet machine |
|
3
|
Steel wire |
15% |
a.can be sold directly b.make steel bloom by using hydraulic press-packing |
|
4 |
Oil gas |
10%
|
a.can be as fuel burn by use gas burn system(including pyrolysis machine) b.extra gas also be storage as fuel for other heating |

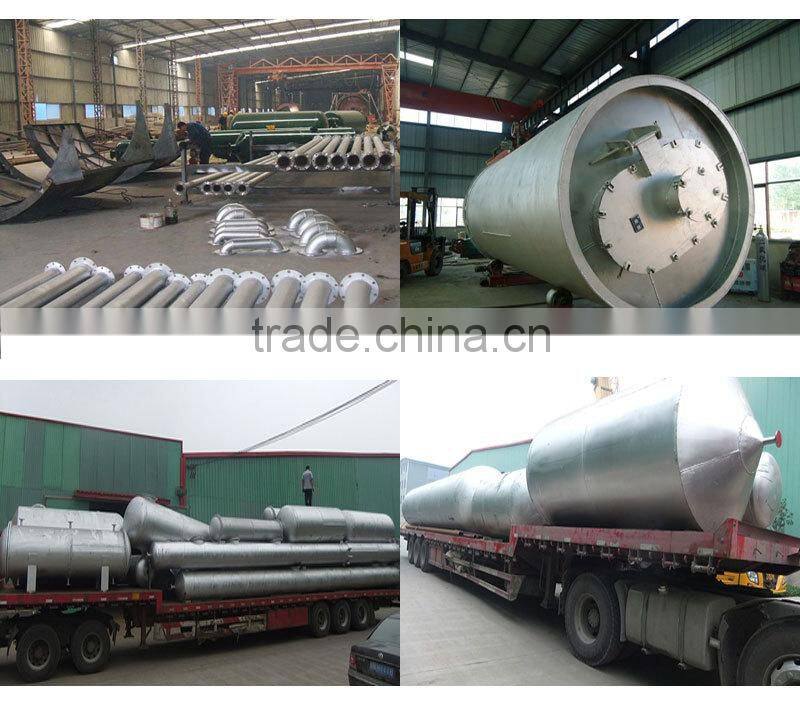

F. Delivery for waste tire recycling plant:
G. The overseas installation for waste tire recycling plant:

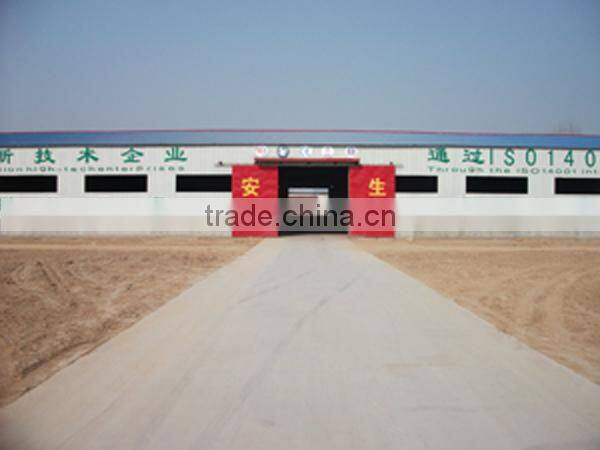

H. The waste tire recycling plant factory:
The machine itself cover 200-300 square meters(length 20-30M ; Width 15M).
Add raw material stay, carbon black stay, big oil tank zone ,workers rest room and simple office. At least 600-800square meters.
1.Quality warranty period:
One year warranty for the chamber of the distillation machines,and lifetime maintenance for complete set of machines. pay the double air tickets, accommodation and food.
2.According to the requirement of the buyer, our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
