Home > Products > Pyrolysis Oil > Normal pressure water cooling used tyre waste plastic pyrolysis plant
Normal pressure water cooling used tyre waste plastic pyrolysis plant
- 30 Set / Sets per Month
- Lianyungang china
- T/T Credit Card
Product Details
| Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
| Place of Origin: | Henan, China | Brand Name: | INNOVIC | Model Number: | IN-BT |
| Voltage: | 380V | Power(W): | 15kw | Dimension(L*W*H): | 6600*2600*2600mm |
| Weight: | 30 T | Certification: | CE ISO SGS | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
A. The model of our pyrolysis plant:
| No. | Reactor size(mm) | Weight(MT) | Volume(M3) | Capacity( MT/D) |
1 | 2200*2200*6000 | 27 | 23 | 5 |
2 | 2200*2200*6600 | 29 | 25 | 6 |
3 | 2600*2600*6000 | 32 | 32 | 8 |
4 | 2600*2600*6600 | 34 | 35 | 9 |
5 | 2800*2800*6000 | 35 | 37 | 10 |
6 | 2800*2800*6600 | 38 | 41 | 12 |
B. The technical parameter:
1 | Model | 2200-6000 | 2200-6600 | 2600-6600 | 2800-6000 | 2800-6600 |
2 | Capacity | 5 Ton/D | 6 Ton/D | 9 Ton/D | 10 Ton/D | 12 Ton/D |
3 | Power | 8-11kw | 8-11kw | 12-17kw | 12-17kw | 12-17kw |
3 | Material | tyre/rubber/plastic | ||||
4 | Structural form | Horizontal rotation | ||||
5 | Operating pressure | Constant pressure | ||||
6 | Reactor speed | 0.4 turn /minute | ||||
7 | Mode of cooling | Water cooling | ||||
8 | Type of drive | Internal gear drive | ||||
9 | Noise dB(A) | ≤85 | ||||
10 | Heating mode | Direct heating | ||||
11 | Dispatch period | 20 days after receiving the down payment | ||||
C. The main parts of pyrolysis plant:
1) Rotatable reactor 10)Cooling pool 19) Water pump
2) Machine cove 11)Induced Draft fan
3) Main machine base 12) Speed reduce
4) Oil-gas separator 13)Dust removing system
5) Catalyst tower 14)Waste gas burners
6) Coil cooling system 15)Blowers
7) Light oil tank 16)Electric cabinet
8) Heavy oil tank 17)Pressure meter
9) Water sealing tank 18)Temperature meter
D. 3D Pyrolysis plant of pyrolysis plant:
E. The flow chart of pyrolysis plant:
F. Delivery for pyrolysis plant:
G. The overseas installation for pyrolysis plant:

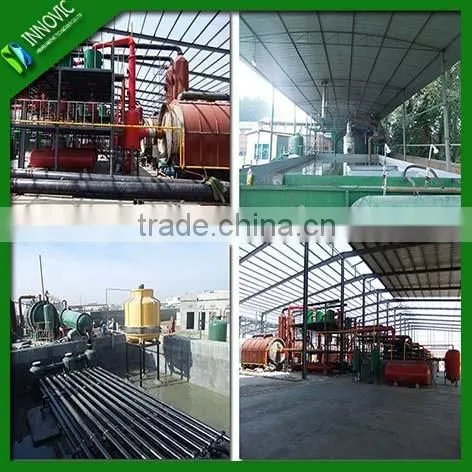

H. The pyrolysis factory:
The machine itself cover 200-300 square meters(length 20-30M ; Width 15M).
Add raw material stay, carbon black stay, big oil tank zone ,workers rest room and simple office. At least 600-800square meters.
Warranty :
We guarantee of 1 year for the whole machine,except wear piece.
Installation:
We will give the foundation drawings to buyer after make the order and send engineer when buyer get the machine. The engineer mainly install the machine and training your workers.
After-sales service:
- 24 hours technical support by e-mail.
- Dispatch engineer within 10 days.
Catalyst formula:
We will supply the catalyst formula after you order the machine,you can buy them at your local.
Contact Us
- Henan Innovic Technology Co., Ltd.
- Contact nameKevin Zhang
- Phone86-371-55013768
- AddressNO.159 HUA YUAN ROAD Zhengzhou,Henan
