Safe Waste Tire Recycling Plant for Tire Pyrolysis Heavy Oil

Safe Waste Tire Recycling Plant for Tire Pyrolysis Heavy Oil thumbnail-1
Safe Waste Tire Recycling Plant for Tire Pyrolysis Heavy Oil photo-1
US$ 42,000 - 50,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Machine
Tire Machine Type:
Tire Recycling Machine
Contact Supplier Request Quote Chat Now
Henan Innovic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tire Machine
Tire Machine Type Tire Recycling Machine
Place of Origin Henan, China
Brand Name INNOVIC
Model Number HYFT
Voltage 380V
Power(W) 8-11kw
Dimension(L*W*H) 6000*2200*2200*16mm
Weight 25 T
Certification CE ISO SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Safe waste tire recycling plant for tire pyrolysis heavy oil
How should we process waste tire/rubber/plastic?
Safe waste tire recycling plant for tire pyrolysis heavy oil




Product Description



Safe waste tire recycling plant for tire pyrolysis heavy oil

A. The model of our waste tire recycling plant:



 No.

Reactor size(mm)

Weight(MT)

Volume(M3)

Capacity( MT/D)

1

2200*2200*6000

27

23

5

2

2200*2200*6600

29

25

6

3

2600*2600*6000

32

32

8

4

2600*2600*6600

34

35

9

5

2800*2800*6000

35

37

10

6

2800*2800*6600

38

41

12



B. The technical parameter of waste tire recycling plant:



1

Model

2200-6000

2200-6600

2600-6600

2800-6000

2800-6600

2

Capacity

5 Ton/D

6 Ton/D

9 Ton/D

10 Ton/D

12 Ton/D

   3

Power

8-11kw

8-11kw

12-17kw

12-17kw

12-17kw

    4

Material

tyre/rubber/plastic

    5

Structural form

Horizontal rotation

   6

Operating pressure

Constant pressure

   7

Reactor speed

0.4 turn /minute

   8

Mode of cooling

Water cooling

   9

Type of drive

Internal gear drive

  10

Noise dB(A)

≤85

  11

Heating mode

Direct heating

12

Dispatch period

20 days after receiving the down payment





C. The main parts of waste tire recycling plant:



1) Rotatable reactor              10)Cooling pool           19) Water pump



2) Machine cove                  11)Induced Draft fan



3) Main machine base            12) Speed reduce



4) Oil-gas separator                13)Dust removing system



5) Catalyst tower                   14)Waste gas burners



6) Coil cooling system            15)Blowers



7) Light oil tank                     16)Electric cabinet



8) Heavy oil tank                   17)Pressure meter



9) Water sealing tank              18)Temperature meter

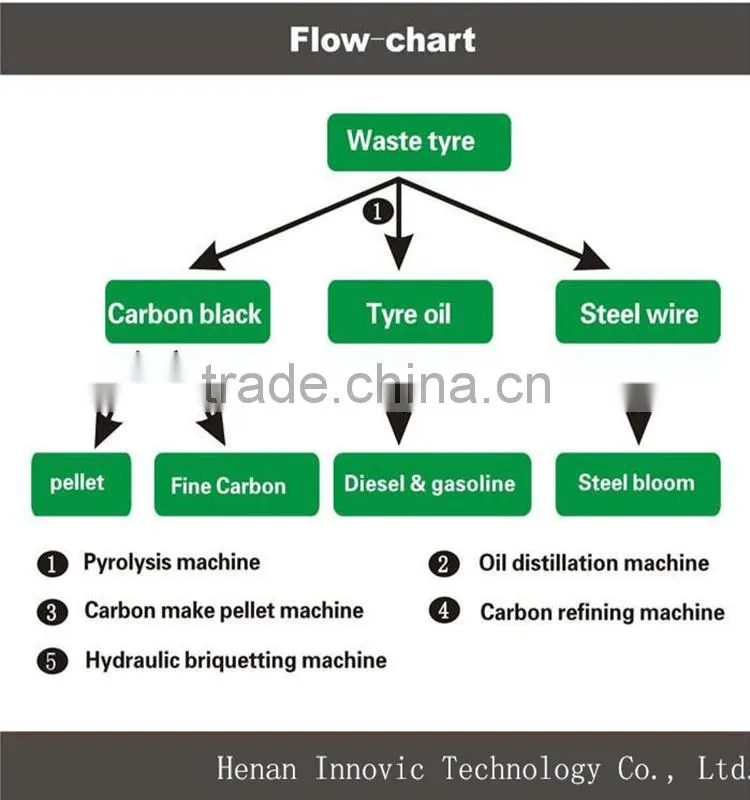

D.  The flow chart of waste tire recycling plant:



Waste tire broken → automatic feed → catalytic cracking → oil water separation → cooling liquid → carbon black emission



 → carbon black processing → crude oil → flammable gas recovery → flammable gas combustion → desulfuration removal.





E. The output percentage and usages:





No.

Name

Percentage

Usage



1



Tyre oil



45-50%

a.can be sell directly

b.make diesel and gasoline by using oil distillation plant

c.can be as fuel



2



Carbon black



35%

a.can be sell directly

b.make fine carbon by using carbon black refining machine

c.make pellet by use carbon make pellet machine



3





Steel wire



10%

a.can be sold directly

b.make steel bloom by using hydraulic press-packing



4



Oil gas



5-10%



a.can be as fuel burn by use gas burn system(including pyrolysis machine)

b.extra gas also be storage as fuel for other heating



 Safe waste tire recycling plant for tire pyrolysis heavy oil






F. Delivery for waste tire recycling plant:



Safe waste tire recycling plant for tire pyrolysis heavy oil

G. The overseas installation for waste tire recycling plant:



Safe waste tire recycling plant for tire pyrolysis heavy oil

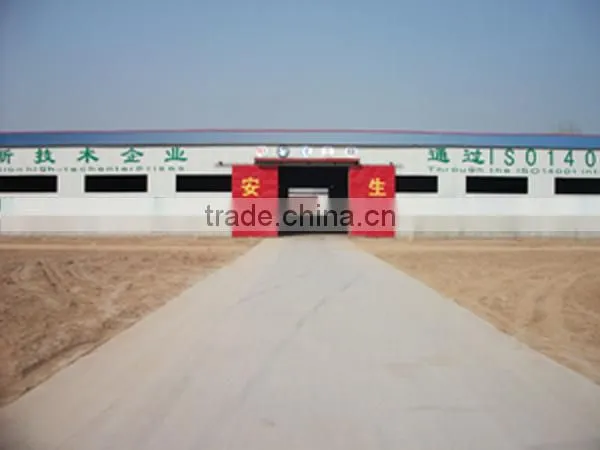

H. The waste tire recycling plant factory:

Safe waste tire recycling plant for tire pyrolysis heavy oil

Safe waste tire recycling plant for tire pyrolysis heavy oil

The machine itself cover 200-300 square meters(length 20-30M ; Width 15M).

Add raw material stay, carbon black stay, big oil tank zone ,workers rest room and simple office. At least 600-800square meters.
