Semi-continuous high oil yield waste tire/rubber/plastic reycling pyrolysis plant to crude oil for sale
A: Introduction to pyrolysis plant:

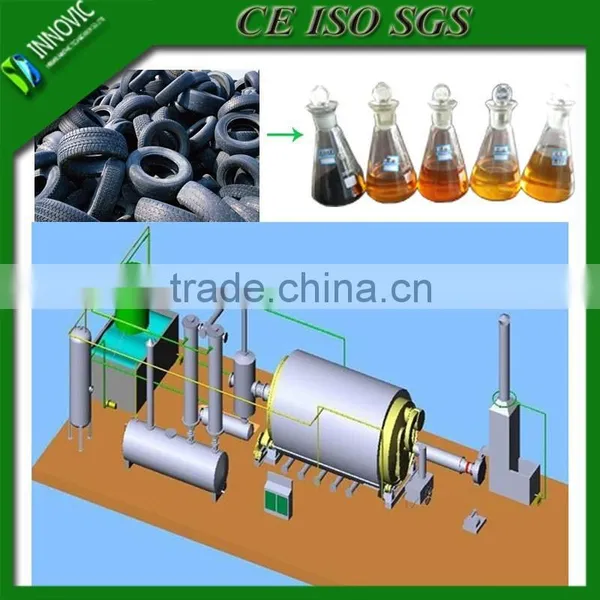

This plant is a processing unit that makes use of pyrolysis of massive waste tyre to get liquid oil. This process unit is made up of heating system, horizontal type rotating reactor, reduced pressure oil and gas dust removal system, cooling system, surplus gas treatment system, high temperature sealing feeding and deslagging system, electric control system of intelligent digital display and so on.
B: The advantages of pyrolysis plant:
1. Coarse distillation system
The unit of coarse distillation tower in the vacuum drum, its internal structure, which can effectively improve the quality of products, not only the density is small, but the liquidity of crude oil is great, oil color is lighter.
2.High temperature sealing feeding and heat sealing slag system
The advantage of the system is that the system can complete sealing feeding and slagging under the condition of high temperature, can not only improve the production efficiency, but greatly reduce the energy consumption.
3.Electric control system of intelligent digital display
This system is intelligent digital display can show temperature and pressure of all parts, with intelligent alarm function, can reduce unnecessary waste of resources caused by artificial reason.
4. Desulfurization and dust removal system
The system can not only be white when giving out the flue gas, can greatly reduce the concentration of sulfur dioxide in flue gas due to using water containing soda when spraying.

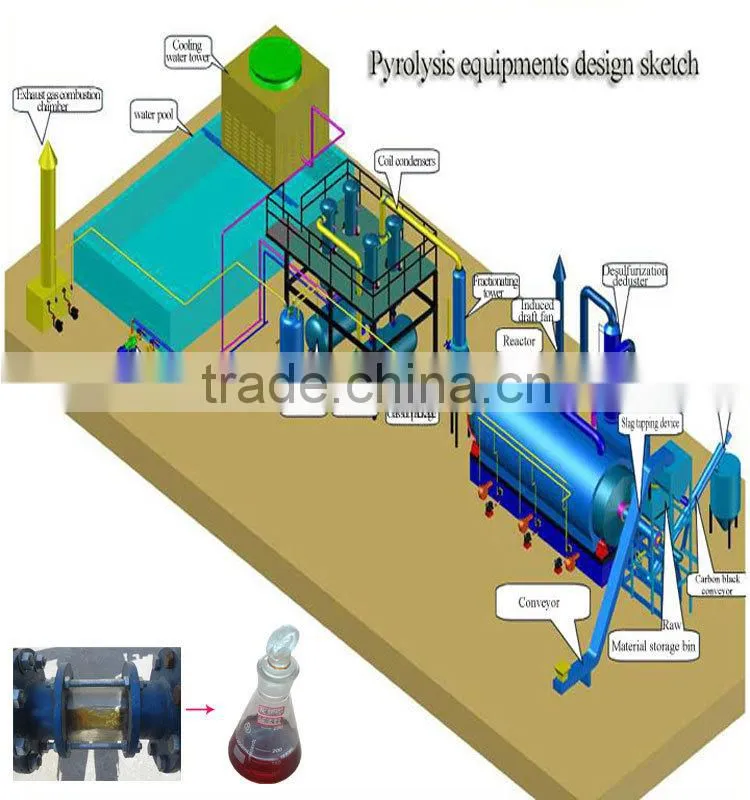

C: The main device of waste tire pyrolysis plant:
The Main Parts And Specification Of waste tire Pyrolysis Plant | |||||
No |
Name |
Quantity (set) |
Specification |
Remarks |
|
1 |
Reactor |
1 |
Φ2200*7500*δ16mm |
28.5m3, Q245R Q345R |
|
2 |
Vacuum dust removal tank |
1 |
Φ800*1900*δ5.0mm |
0.85m3, Q245R Q345R |
|
3 |
Fractionating tower |
1 |
Φ530*2500*δ5.0mm |
0.55m3, Q245R Q345R |
|
4 |
Coil condensers |
4 |
Φ530*3000*δ3.5mm |
2 Pieces; heat exchange area 12m2*2 |
|
Φ630*2000*δ3.5mm |
2 pieces; heat exchange area 18m2*2 |
||||
5 |
Oil storage tank |
2 |
Φ1200*5000*δ3.5mm |
5.5m3, Q245 Q345R |
|
6 |
Water seal |
1 |
Φ900*1900*δ3.5mm |
0.95m3, Q245R Q345R |
|
7 |
Slag remover |
1 |
Φ325*2500*δ10.0 mm |
4kw, input quantity: 8m3/h |
|
8 |
Raw material storage bin |
2 |
1200*1200*1000*δ2.5 mm |
1.5m3; 2.2kw |
|
9 |
Slag storage tank |
1 |
Φ1200*2100*δ2.5 mm |
1.9m3 |
|
10 |
Screw feeder |
1 |
Φ325*4500*δ3.5mm |
3.0 kw, feeding capacity: 3m3/h |
|
11 |
Conveyor |
1 |
5000*500*5500mm |
2.2kw |
|
12 |
Electric knife type valve |
3 |
Model: DN250*1.0Mpa |
Material: cast steel |
|
13 |
Desulfurization deduster |
1 |
Φ5300*2500*δ3.5 mm |
Q245R Q345R |
|
14 |
Desulfurization precipitator alkali storage tank |
1 |
2000*1200*800*δ3.5 mm |
Q245R Q345R |
|
15 |
Electric control cabinet |
1 |
|
3 terms;Intelligent digital alarm display, manual response |
|
D: The fuel to waste tire pyrolysis plant reactor:
NO. |
Fuel |
Note |
1 |
Coal |
/ |
2 |
Firewood |
/ |
3 |
Oil(fuel oil, tyre oil, heavy oil etc..) |
Use oil burner |
4 |
Natural gas |
Use gas burner |
5 |
electricity |
Electric stove wire |
6 |
Carbon black pellet |
We can supply carbon make pellet machine |
E: End product percentage:
|
Raw Materials |
Furnace Oil Rate |
Carbon black |
Steel |
Waste Gas |
Used tyres,scrap tyres |
Big truck tyres |
45%--50% |
25%-30% |
10% |
10%-15% |
Car tyres |
40%-45% |
30%-35% |
10% |
10%-15% |
|
Bicycles and motorcycles tyres |
30%--35% |
35%-40% |
|
15%-25% |
F: Tyre oil parameter:
Item |
Unit |
Data |
Density |
g/cm3 |
0.82-0.83 |
Freezing Point |
oC |
10 |
flash point |
oC |
45 |
Kinematic viscosity |
mPa.s |
8 |
Combustion valuek |
kJ/kg |
9500 |

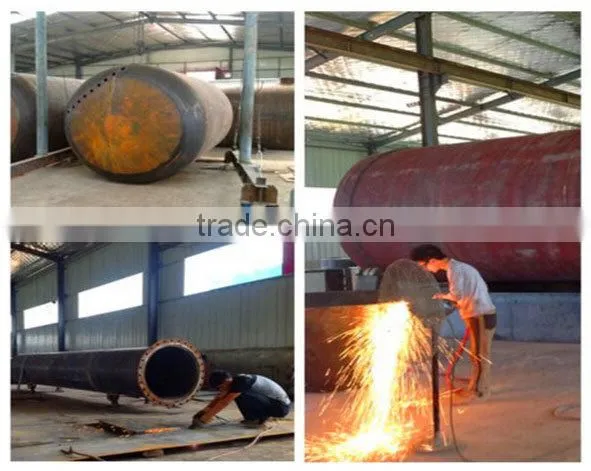

G: Pyrolysis plant manufacturing process:
G: Delivery time:
25-30 days after receiving the deposit for per set.
H: The machine installation(charge and time):
We will give the foundation drawings to buyer after make the order .we will send engineer when buyer get the machine. The engineer mainly install the machine and training your workers.
Charges: Buyer book ticket , supply food and accommodation to engineer and pay our engineer USD 100 per day.
Installation time: It depends workers working efficiency, normally about 25-30 days.
I: Warranty:
We warranty the complete machine 1 year. The maintance is all life.
We use the Q245 / Q345 national standard boiler plate .The boiler steel plate,can bear highest temperature 700℃ when pyrolysis.
If machine has some problems under the right operation (not inculding the wearing parts) , we send engineer to buyer site to provide maintance, it is free within 1 year.
