A. The model of our tyre pyrolysis plant:
| No. | Reactor size(mm) |
Weight(MT) |
Volume(M3) |
Capacity( MT/D) |
1 |
2200*2200*6000 |
27 |
23 |
5 |
2 |
2200*2200*6600 |
29 |
25 |
6 |
3 |
2600*2600*6000 |
32 |
32 |
8 |
4 |
2600*2600*6600 |
34 |
35 |
9 |
5 |
2800*2800*6000 |
35 |
37 |
10 |
6 |
2800*2800*6600 |
38 |
41 |
12 |
B. The technical parameter of tyre pyrolysis plant:
1 |
Model |
2200-6000 |
2200-6600 |
2600-6600 |
2800-6000 |
2800-6600 |
2 |
Capacity |
5 Ton/D |
6 Ton/D |
9 Ton/D |
10 Ton/D |
12 Ton/D |
3 |
Power |
8-11kw |
8-11kw |
12-17kw |
12-17kw |
12-17kw |
4 |
Material |
tyre/rubber/plastic |
||||
5 |
Structural form |
Horizontal rotation |
||||
6 |
Operating pressure |
Constant pressure |
||||
7 |
Reactor speed |
0.4 turn /minute |
||||
8 |
Mode of cooling |
Water cooling |
||||
9 |
Type of drive |
Internal gear drive |
||||
10 |
Noise dB(A) |
≤85 |
||||
11 |
Heating mode |
Direct heating |
||||
12 |
Dispatch period |
20 days after receiving the down payment |
||||
C. The main parts of tyre pyrolysis plant:
1) Rotatable reactor 10)Cooling pool 19) Water pump
2) Machine cove 11)Induced Draft fan
3) Main machine base 12) Speed reduce
4) Oil-gas separator 13)Dust removing system
5) Catalyst tower 14)Waste gas burners
6) Coil cooling system 15)Blowers
7) Light oil tank 16)Electric cabinet
8) Heavy oil tank 17)Pressure meter
9) Water sealing tank 18)Temperature meter

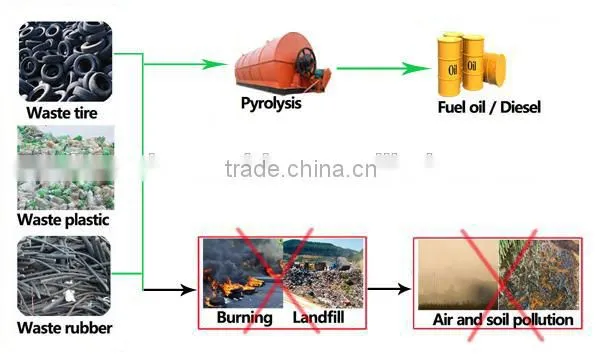

D. The flow chart of tyre pyrolysis plant:
Waste tyre broken → automatic feed → catalytic cracking → oil water separation → cooling liquid → carbon black emission
→ carbon black processing → crude oil → flammable gas recovery → flammable gas combustion → desulfuration removal.
E. The features of our waste tyre pyrolysis plant:
Safety
- Pressure gauge, alarming device, safe valve.
- We have anticlogging device, in case of jam, there will be antomatic alaiming, automatic exhaust and automatic decompression.
- Using 245R/345R boiler plate. The thickness of part by fire is 14/16/18mm, other parts is 12mm.
- Automatic welding, processing according to standard of head of pressure vessel.
- With proprietary vacuum system, it is much safer on condition of negative pressure.
Energy saving
- Exhaust gas recycle to furnace.
- Continuous feeding with automatic feeder, no gas leak.
Environmental protection
- Built-in slagging, seal with water, no solid pollution.
- With dust removal equipment there is no air pollution.

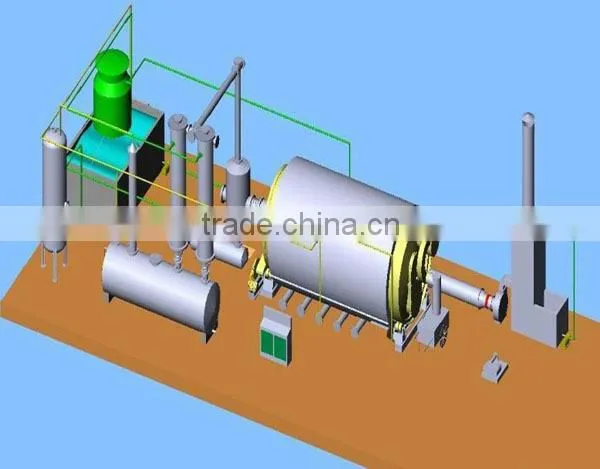

F. 3D waste tire pyrolysis machine:

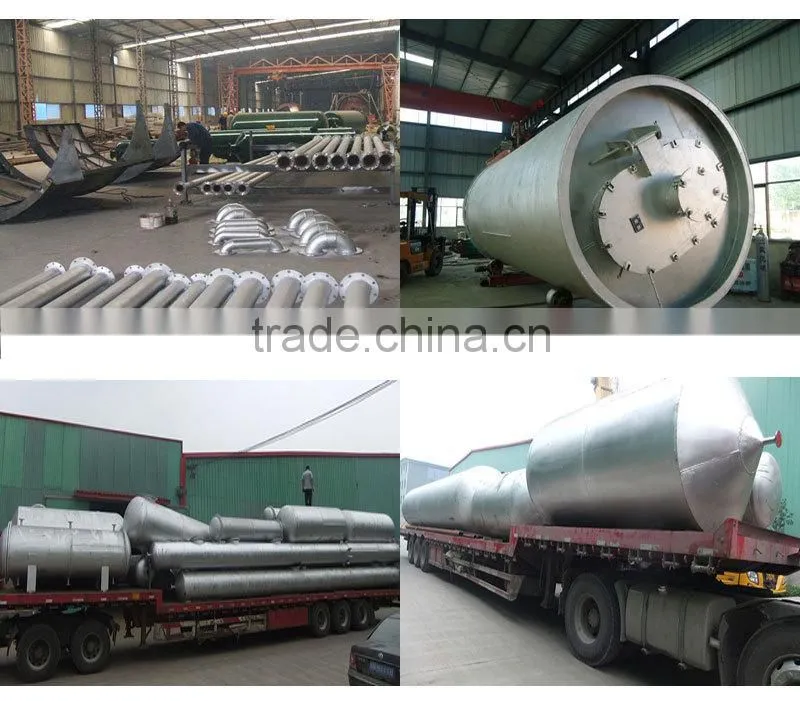

G. Delivery for waste tire pyrolysis oil machine:

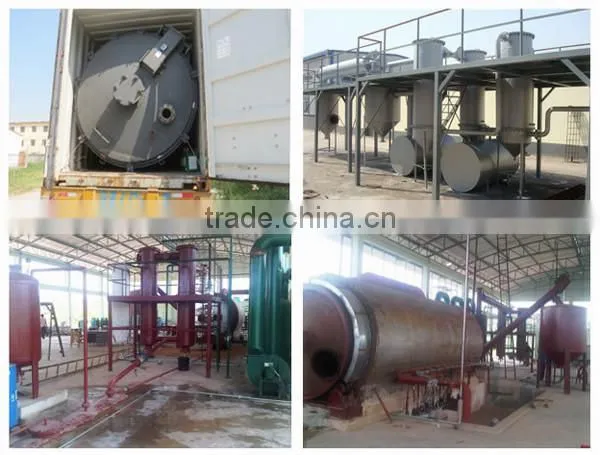

H. The overseas installation for waste tire pyrolysis machine:

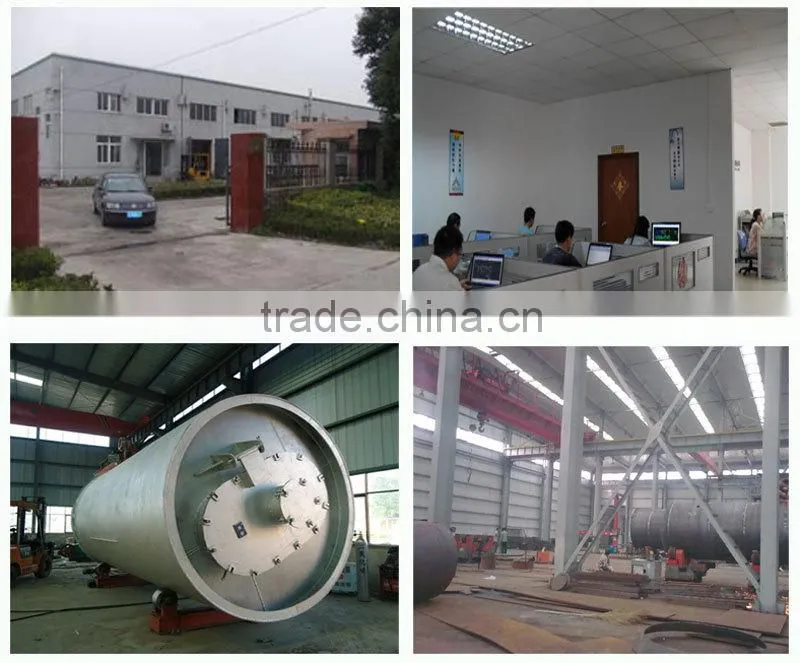

I. The waste tire pyrolysis machine factory:
The machine itself cover 200-300 square meters(length 20-30M ; Width 15M).
Add raw material stay, carbon black stay, big oil tank zone ,workers rest room and simple office. At least 600-800square meters.
1.Quality warranty period:
One year warranty for the chamber of the distillation machines,and lifetime maintenance for complete set of machines. pay the double air tickets, accommodation and food.
2.According to the requirement of the buyer, our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
