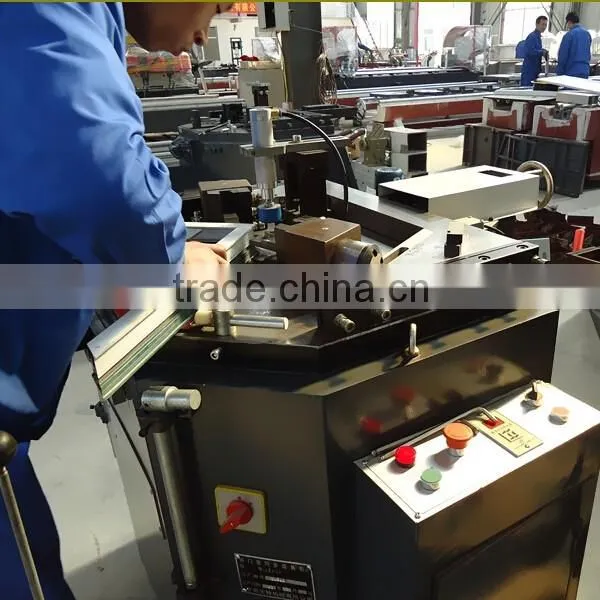

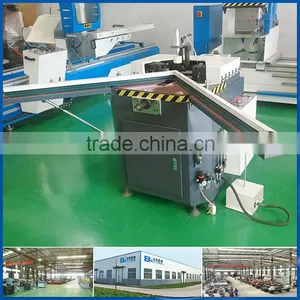

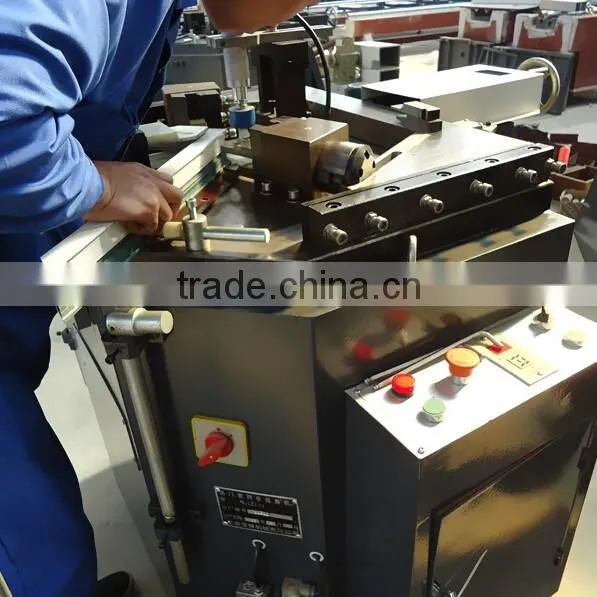

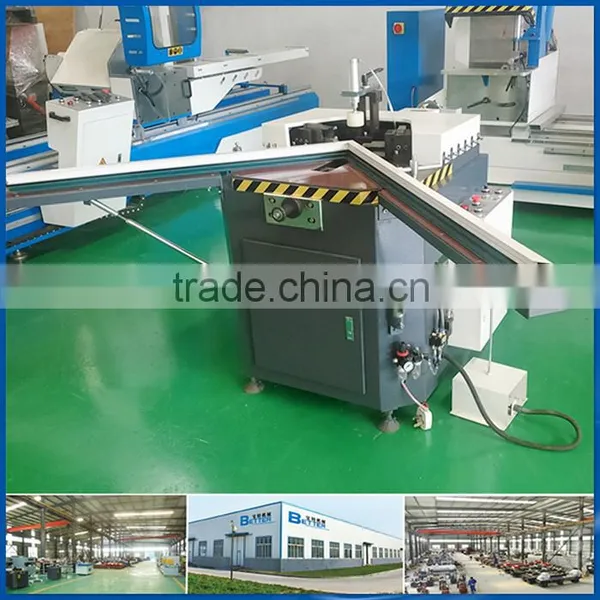

Aluminum Windows and Doors Processing Machine,Model:LZJ-03

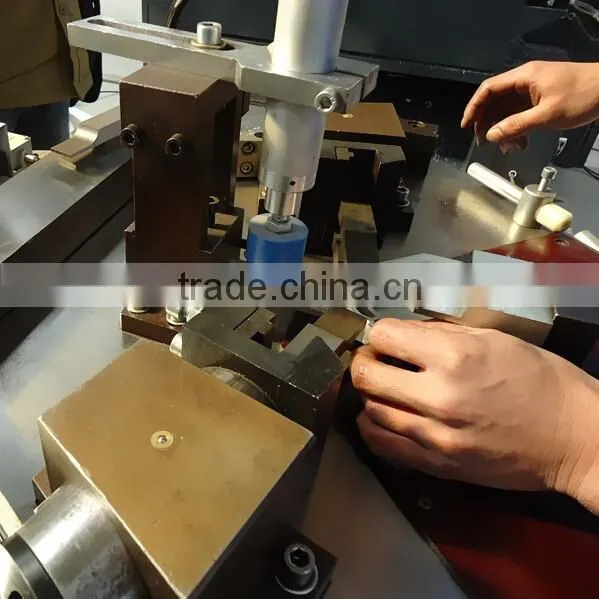

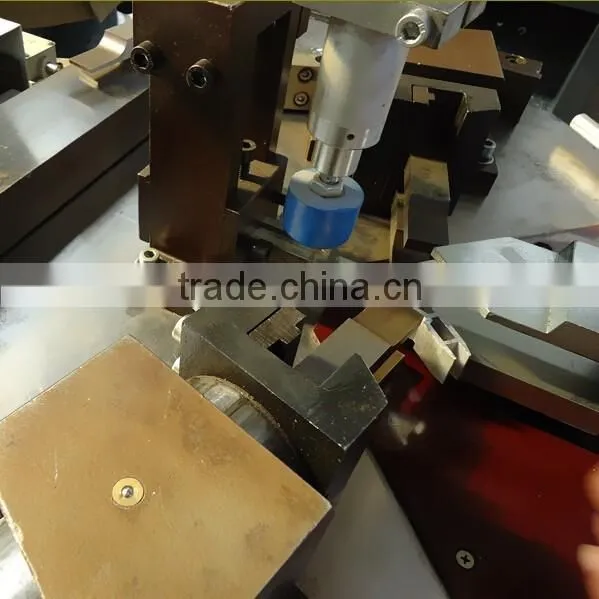

The machine is used for corner punching and riveting combination of aluminum profiles.crimping at 90 degree.The left and right crimping knives, driven by hydraulic system through a joint action device, feed synchronously, which guarantees the accuracy and strength of corner crimping and improve the quality of aluminum doors and windows greatly. Place a corner connector into the cavity of the two profiles before corner crimping, and the hydraulic crimping knives make permanently cold deformation on aluminum profile outer layers.Single head aluminum corner crimping machine is basic equipment for aluminum doors and windows, easy operate, economical and practical.
Operation air pressure |
0.5-0.8Mpa |
Air Consumption |
2L/min |
Power Supply |
As required |
Motor power |
2.2kw |
Working air pressure |
0.4-0.6Mpa |
Contour dimension(L*W*H) |
1100*1000*1200mm |
Weight(about) |
400kg |
Cutting machine---Double head
Copy router milling machine
End milling machine
Corner connector cutting saw machine

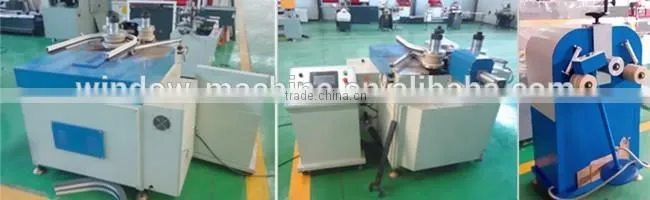

Bending machine---manually / CNC automatic
Double / four corner combining machine
