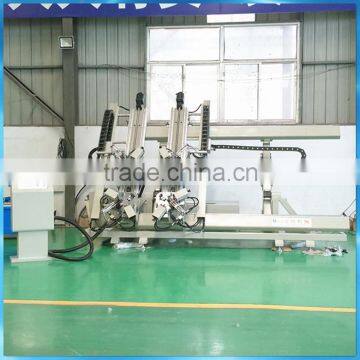

Hot Sale Vertical Aluminum profiles Four Head Corner Crimping Machine,ZJ-CNC-100x1800x3000
The machine is used for corner punching and riveting combination of aluminum profiles at 90 degree.Complete the connection of four corners in one operation with high production efficiency.The frame is specially jointed by steel with high quality and special process.The CNC system imported from Lenze, Germany, with high quality ensures the speed and accuracy. The moment control function of the service system can auto press the four corners ,ensuring the processing effect.The corner combining blade can be adjusted according to the requirement of different profile.One time corner crimping can control the seam and plane, make the quality foresight.The control system service system make the connect no-seam and improve the control accuracy.
Voltage |
As request |
Rating power |
4 Kw |
Rating oil pressure |
15 Mpa |
Air consumption pressure |
0.5-0.8 Mpa |
Air consumption |
0.45 L once |
Capability of oil box |
60L |
Corner crimping journey |
0-50mm |
Max frame dimension |
1800 mm*3000 mm |
Min frame dimension |
480mm*480 mm |
Profile width |
95mm |
Error of finished windows |
≤1mm |
Connection seam error |
≤0.15mm |
Contour dimension(L*W*H) |
4700*2000*2600mm |
Weight(about) |
2500Kg |
Automatic cutting machines--- Double / Single
Corner connector cutting saw machine
End milling machine
Copy router milling machine
Call / Wechat:0086-15168813950
Skype:gorge.zhou
Whats app:008618606396657
Send Inquiry to This Supplier
