4 Platens Rotating Fruit Tray Machine
4 Platens Rotating Fruit Tray Machine is a fully automatic production line.
If the machine works 10 hours a day, it will use materials 1.4-1.68 ton per day. (for example: 70g wet egg tray, capacity is 2000-2400 pieces per hour )
There are 4 systems, pulping, forming, drying and packing. .
This machine is controlled by PLC, highly automation, easily learned, convenient services, and can widely use in different business.
* Introduction
1. Pulping system:
This is the first step to making fruit tray.
We put the waste paper to pulper to make pulp, after some support equipment and 3 pulp pools, the pulp concentration will become 0.8%-1%.

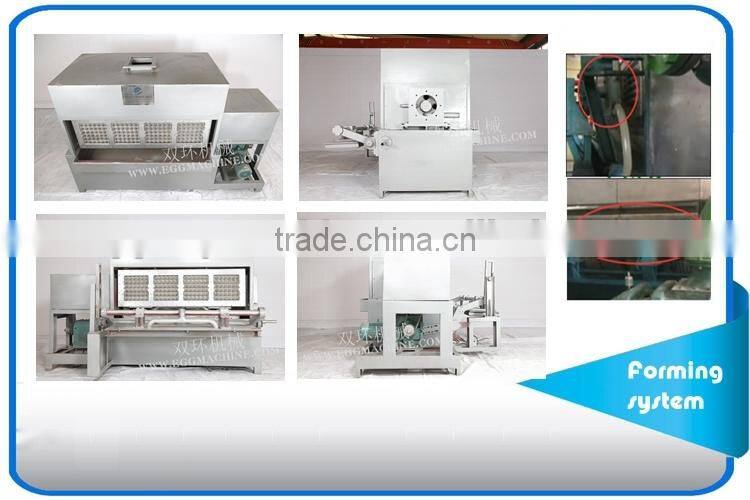

2. Forming system:
In Forming system, forming machine and the support equipments make the pulp become the fruit tray.
In order to protect the fruit and make the tray smooth, It will install a machine back of forming machine.
4 Platens Rotating Fruit Tray Machine —— SHZ-2000.
| Model | Mold (forming + transferring) | Platen Size |
| SHZ-2000 | 4X4 + 4 pcs |
1450 x 450mm |
3. Drying system & Hot-pressing & Packing system
We have 3 kinds of drying system.
A. Single Brick Drying Line
Brick drying line posses lots of advantages, its structure is new, design is reasonable, low one-time investment, high heat efficiency, long life time, easy maintenance and safe service.
The fuel can be designed to steam, heat transfer oil, natural gas, coal gas, anthracite, low smoke firewood and coal, firewood, tree bark, bamboo etc. according to clients requirement.
B. Single Metal Drying Line
Metal Drying Line has beautiful appearance and easy for installation. It can be designed according to the productivity, type of products and factory layout as well as according to the local fuel such as steam, coal, natural gas and heat conduction.
The construction of single metal drying line is compact, reasonable and convenient for users maintain and adjust. It has adopted chain, chain wheel and tracked board as conveyor belt transmission, so it won’t occur drifting of belt conveyor.
C. Multi Metal Drying Line
The new design of our multi-layer drying line is good looking and requires smaller floor area, it’s easy to install, applicable to the drying of variety of products and high energy efficiency.
The drying line can be designed to 4, 6 or 8 as the floor space, capacity and various products. Also the fuel can be steam, coal gas, natural gas, teat-transfer oil, coal and so on.
| Model | Single Metal Drying Line | Multi Metal Drying Line | Single Brick Drying Line |
| SHZ-2000 | outline dimension 36X3.1X2.5M |
outline dimension 12X1.9X3.5M |
outline dimension 38X3.1X2.5M |
* Advantages
1 |
High automation, low labor cost |
2 |
Low production cost |
3 |
Energy saving(by 30%-50% compared with other manufacture) |
4 |
Water saving(complete water treatment system equipped) |
5 |
Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer) |
6 |
Stable final product quality(same weight, same dimention, strong and good look) |
* Application
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best egg tray production line design
* cost/benefit analysis
* to support factory layout
* desigh and make egg tray sample (charge, but if you ordering can offset the purchase price)
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
Our company is a professional manufactuer on various kind of pulp molding machine in China for over 30 years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from factory visiting,ordering to deliver goods and after-sales service.
Our guarantees: providing the best services in order to satisfy every reasonable demands of customers, providing complete services including factory design, installment and debugging of machine until accomplishment of the conforming products.
Packaging
Wrapped with corrugated sheets ,then fixed by steel wires in the container.
Shipping
1. Different machine models, different container size.
2. We accept any kind of transportation.
3. We provide timely logistics information for you.
