SH Machinery industrial package machine paper production egg box tray equipment

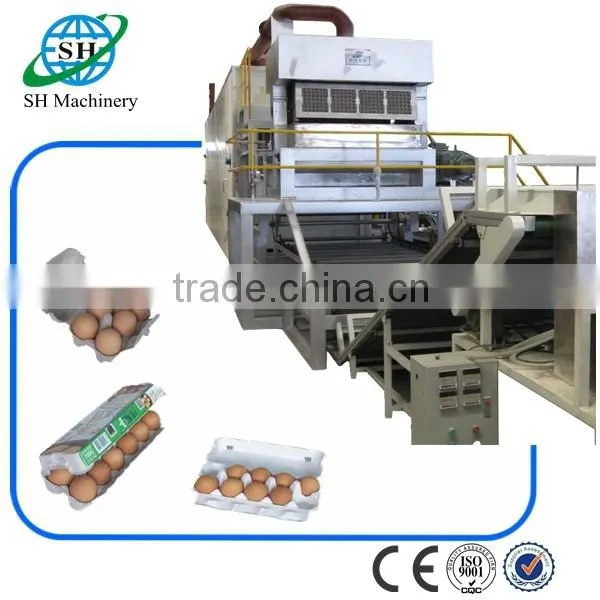

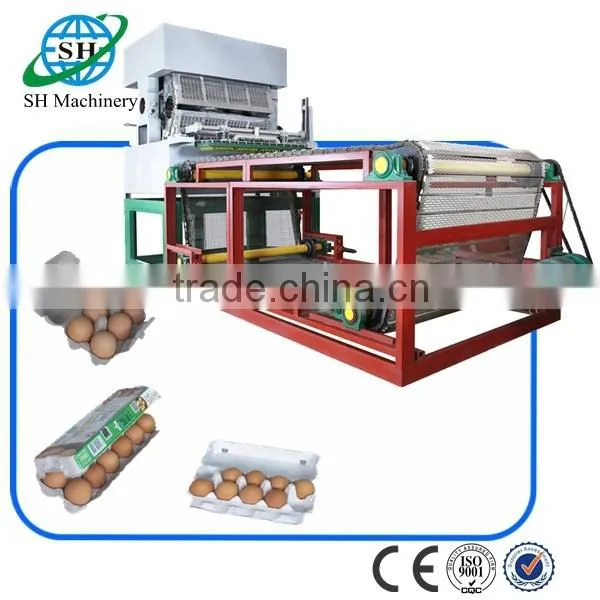

Tiltering Seedling Tray Machine is a kind of pulp molding machine.
This model are SHF-1000/ SHF-1500/ SHF-2000, there are pulping, forming, drying, hot-pressing and packing systems in it.
If the machine works 10 hours a day, it will use materials 0.6-0.7/1.05-1.26/1.4-1.47 ton per day. (for example: 70g wet egg tray, capacity is 900-1000/1500-1800/2000-2100 pieces per hour )
This machine is controlled by PLC, highly automation, easily learned, convenient services, and can widely use in different business.
* Introduction

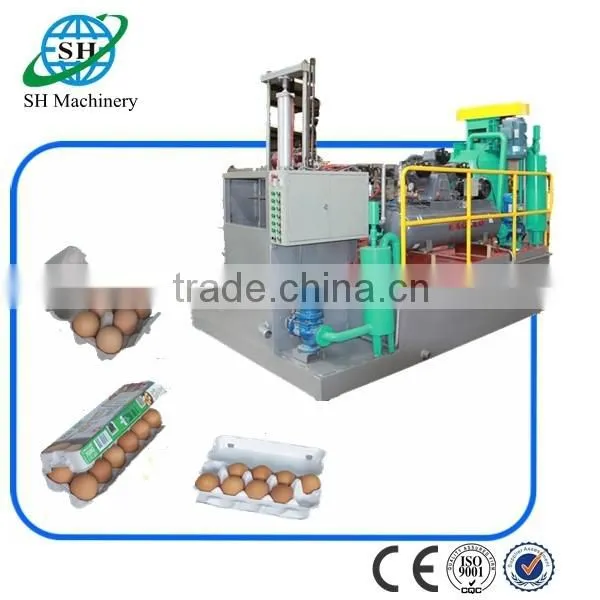

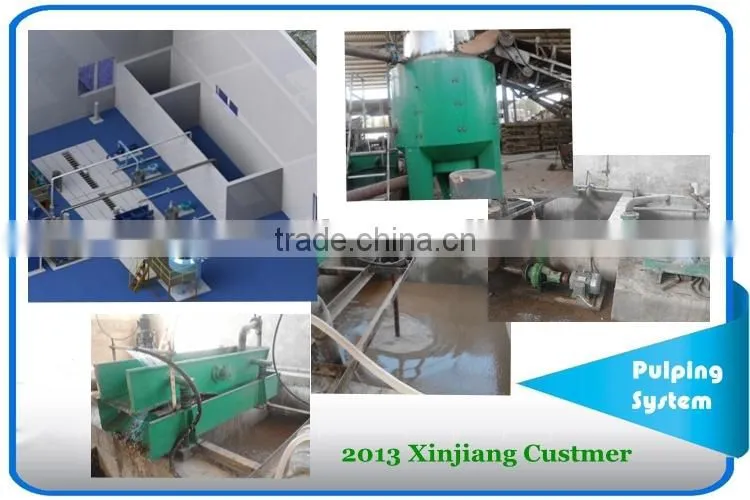

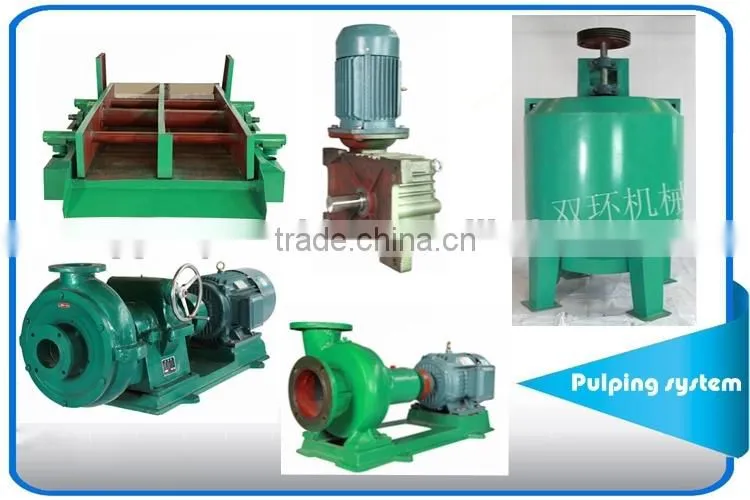

1. Pulping system:
We put the waste paper to pulper to make pulp, after some support equipment and 3 pulp pools, the pulp concentration will become 0.8%-1%.

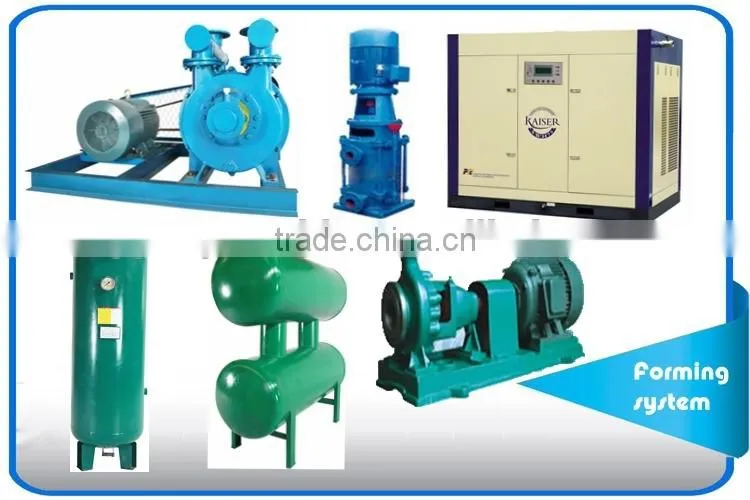

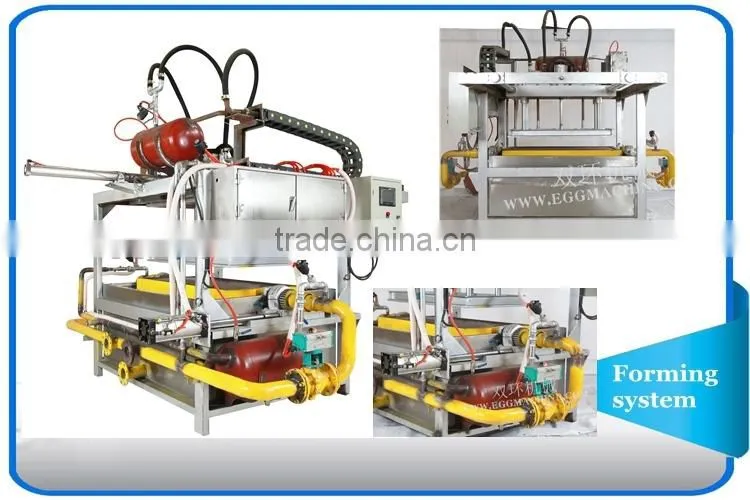

2. Forming system:

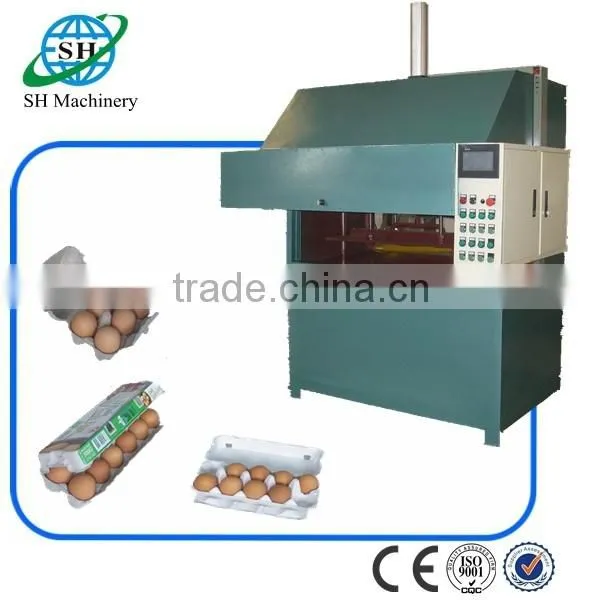

In Forming system, forming machine and the support equipment make the pulp become the products.
Tiltering Seedling Tray Machine: SHF-1000/ SHF-1500/ SHF-2000
| Model | Mold (forming + transferring) |
Platen Size |
| SHF-1000 | 3 + 3 pcs | 1300X520 mm |
| SHF-1500 | 12 + 6 pcs |
1430X720 mm |
| SHF-2000 | 16 + 8 pcs | 1630X780 mm |

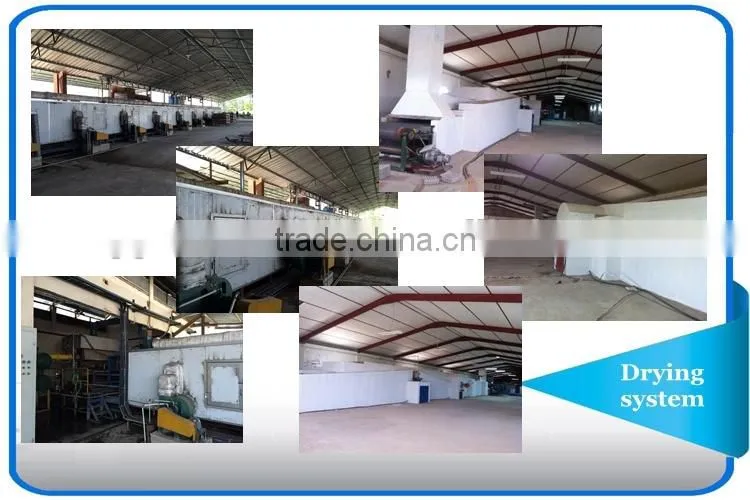

3. Drying system
A. Single Brick Drying Line
Brick drying line posses lots of advantages, its structure is new, design is reasonable, low one-time investment, high heat efficiency, long life time, easy maintenance and safe service.
The fuel can be designed to steam, heat transfer oil, natural gas, coal gas, anthracite, low smoke firewood and coal, firewood, tree bark, bamboo etc. according to clients requirement.
B. Single Metal Drying Line
Metal Drying Line has beautiful appearance and easy for installation. It can be designed according to the productivity, type of products and factory layout as well as according to the local fuel such as steam, coal, natural gas and heat conduction.
The construction of single metal drying line is compact, reasonable and convenient for users maintain and adjust. It has adopted chain, chain wheel and tracked board as conveyor belt transmission, so it won’t occur drifting of belt conveyor.
Model |
Single Metal Drying Line |
Single Brick Drying Line |
| SHF-1000 | outline dimension 35X10X4.5M |
outline dimension 35X10X4.5M |
| SHF-1500 | outline dimension 43X10X4.5M | outline dimension 43X10X4.5M |
| SHF-2000 | outline dimension 47X10X4.5M |
outline dimension 47X10X4.5M |

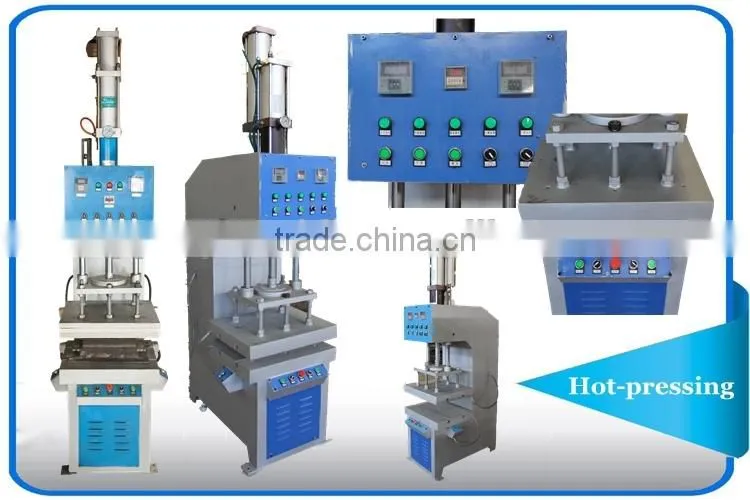

4. Hot-pressing system
Hot-pressing machine can make the products smooth.
* Customer witness
* Advantages
| 1 | The pulp basin is made by stainless steel AISI 304, which is highly resistant to corrosion, such as nitric acid, oxidizing acid, reducing acid, seam corrosion, so that forming machine can avoid chemical composition corrosion in the pulp. |
| 2 | Spur gear used in the forming machine has high transmission efficiency and exact gear ratios |
| 3 | Operation is simple and easy ,especially suitable for who is the new learner. |
* Application
Our company is a professional manufactuer on various kind of pulp molding machine in China for over 30 years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from factory visiting,ordering to deliver goods and after-sales service.
Our guarantees: providing the best services in order to satisfy every reasonable demands of customers, providing complete services including factory design, installment and debugging of machine until accomplishment of the conforming products.
We supply customers all over the world with best quality products:

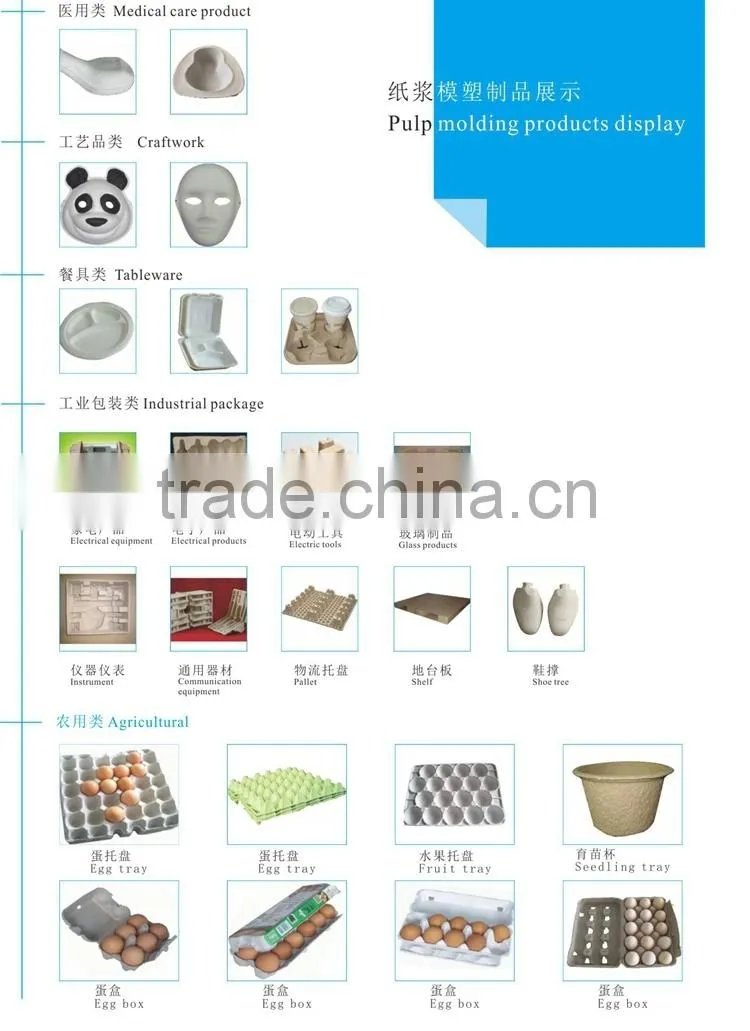

1. Pulp molding product lines such as egg tray/egg carton production line, fruit tray production line, pulp molding industrial package production line.
2. Molds for pulp molded products.
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best egg tray production line design
* cost/benefit analysis
* to support factory layout
* desigh and make egg tray sample (charge, but if you ordering can offset the purchase price)
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
Packaging
Wrapped with corrugated sheets ,then fixed by steel wires in the container.
Shipping
1. Different machine models, different container size.
2. We accept any kind of transportation.
3. We provide timely logistics information for you.
