21.8 TONMINI EXCAVATORa, Engine : Cummins
b, Max. bucket breakout force-ISO(kN):158

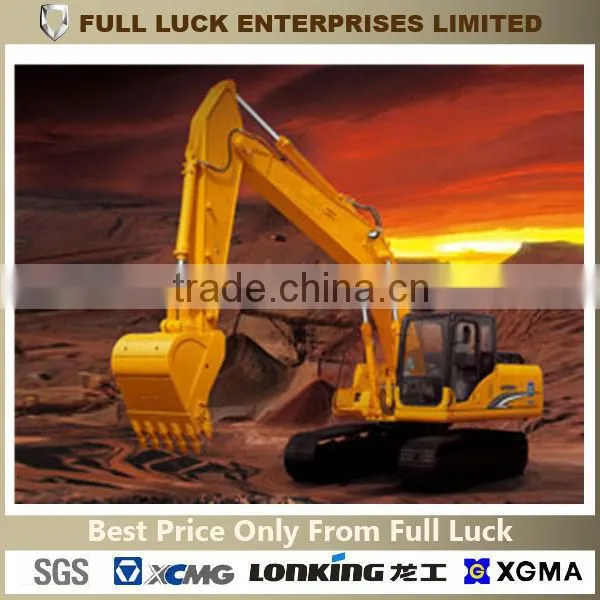

21.8 TON MINI EXCAVATOR
FULLWON is one of the leading truck and construction equipment distributors and exporter in China.Fullwon cooperates with leading truck manufactures and suppliers of brand name VOLVO, RENAULT TRUCK, SINOTRUCK ,LONKING and ISUZU.
Focus on the oversea market development, Fullwon is the professional exporter for heavy duty trucks, construction equipments,and spare parts in China.To face global markets sales, except complete equipment sales, we pay more attention to technology consultation and after-sale service. Technician overseas market technical guidance and training service, complete and scientific spare parts supply system are provided by us to meet different purchasing requirements from clients.
For secondhand construction equipment exportation business, we provide service including complete painting for equipment, wire sorting for equipment, quick-wear parts sales and so on.
MINI EXCAVATOR
- After-sales Service
- In-house training and workshop
- Technical consultation service
- International Logistics Service
- Purchase solution
- Maintenance Program
- Sourcing service
- 54 items will be inspected including appearance, painting, welding, dimension, major assemblies and cabin.
- Road-testing including the working status of engine, transmission, hydraulic system, electrical system, light system, brake system and so on.

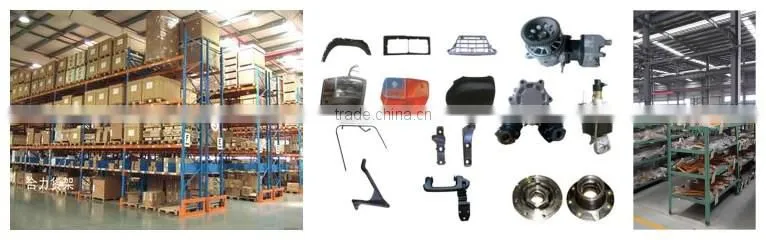

- Spare parts supply
| Specifications | CDM6225 | ||
| Engine | Model | Cummins6BTAA5.9-C | |
| Rated power | 112kW (150hp) /1950 rpm | ||
| Max. torque | 614 N.m/1500 rpm | ||
| Bore× Stroke | 102mm×120mm | ||
| Displacement | 5.9 L | ||
| Comment | Maintain the rated power at 2300m elevation. | ||
| Operating weight | Summary | Operating weight:21800kg The operating weight includes the weight of 5675 mm standard boom,2920 mm standard arm, 1.0m3 standard bucket,600 mm track shoes,lubricating oil, coolant,the full diesel oil tank and the rest standard configuration units. |
|
| Ground pressure | 51 kPa | ||
| Fluid capacity | Fuel tank | 380 L | |
| Cooling system | 23 L | ||
| Engine oil | 18 L | ||
| Swing drive unit | 3.8 L | ||
| Traveling gear | 2×3.3 L | ||
| Hydraulic oil tank | 280 L | ||
| Swing mechanism | High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position. |
||
| Swing speed :11.6 rpm | |||
| Travel drive | Summary | The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface, The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking. |
|
| Taveling speed | 3.0 -5.2 km/h | ||
| Gradeability | 35°(70%) | ||
| MaximumTraction | 222 kN | ||
| Traveling mechanism | Standard track shoe width | 600 mm | |
| No. of track shoe | 47 (each side) | ||
| No. of carrierrollers | 2 (each side) | ||
| No. of track rollers | 8 (each side) | ||
| Hydraulic system | Main pump | Duplex axial variable plunger pump | |
| Pilot pump | gear pump (integrated in main pump) | ||
| Max. flow of system | 2×208 L/min | ||
| Max. pressure of equipment | 34.3 MPa | ||
| Max. pilot pressure | 3.9 MPa | ||
| Operating equipment | Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control. |
||
| Electrical system | System voltage:24 V Battery:12 V,120 A×2 | ||
MINI EXCAVATOR will be transported by Ro-Ro , Bulk ,Container,Contrainer frame.
