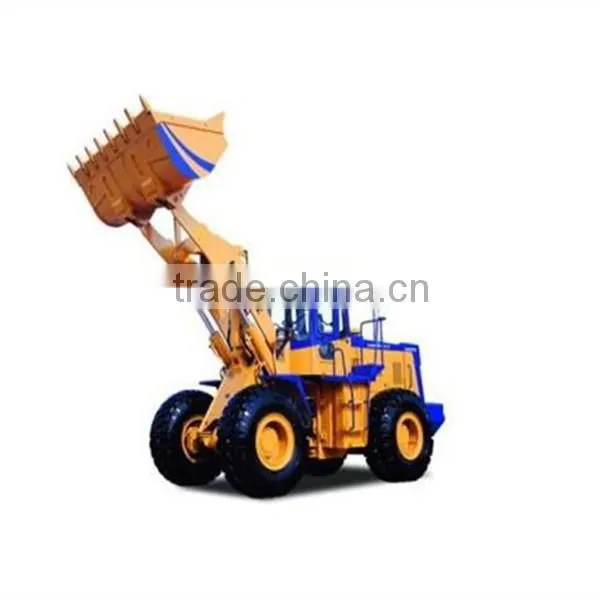

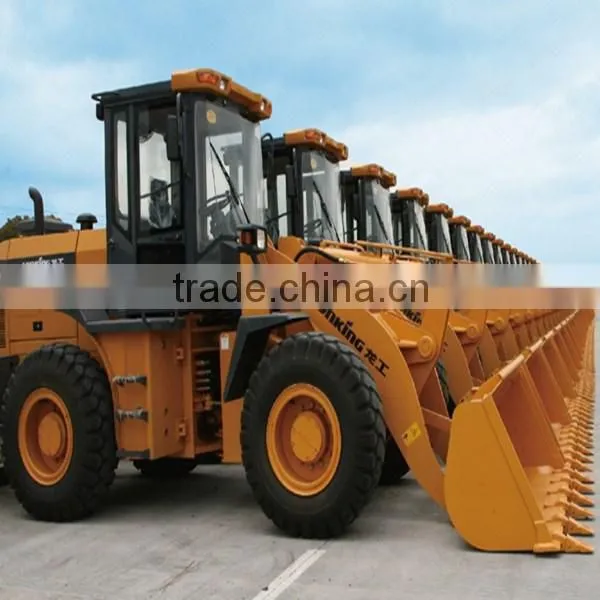

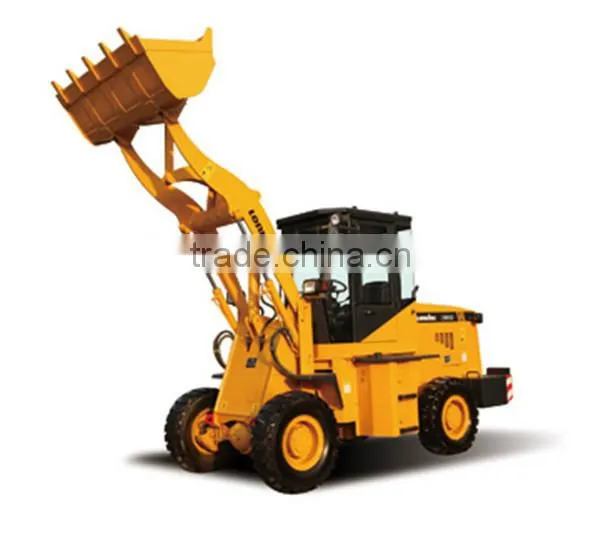

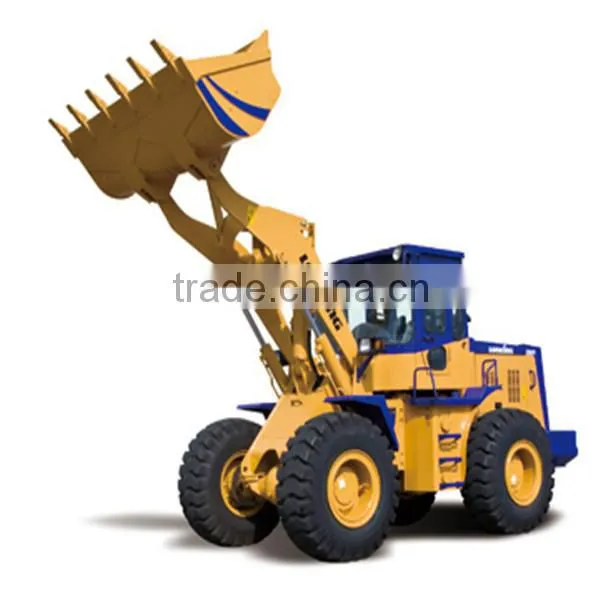

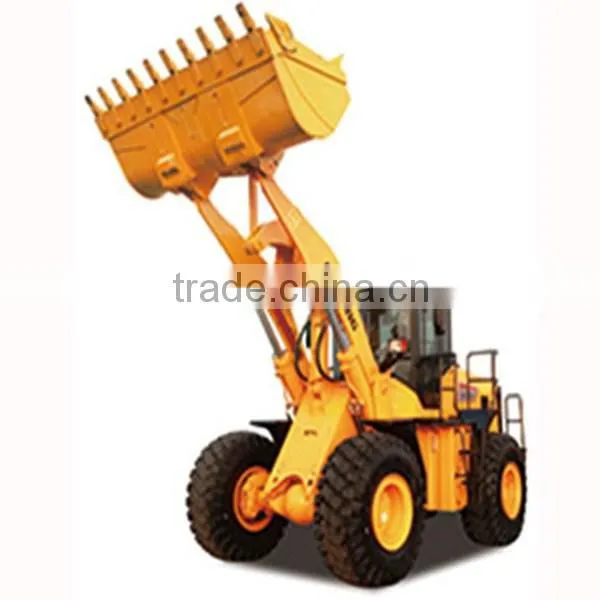

LONKING WHEEL LOADER

LONKING WHEEL LOADER thumbnail-1
LONKING WHEEL LOADER thumbnail-2
LONKING WHEEL LOADER thumbnail-3
LONKING WHEEL LOADER thumbnail-4
LONKING WHEEL LOADER thumbnail-5
LONKING WHEEL LOADER thumbnail-6
LONKING WHEEL LOADER photo-1
LONKING WHEEL LOADER photo-2
LONKING WHEEL LOADER photo-3
LONKING WHEEL LOADER photo-4
LONKING WHEEL LOADER photo-5
LONKING WHEEL LOADER photo-6
US$ 30,000 - 40,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
LONKING LOADER
Model Number:

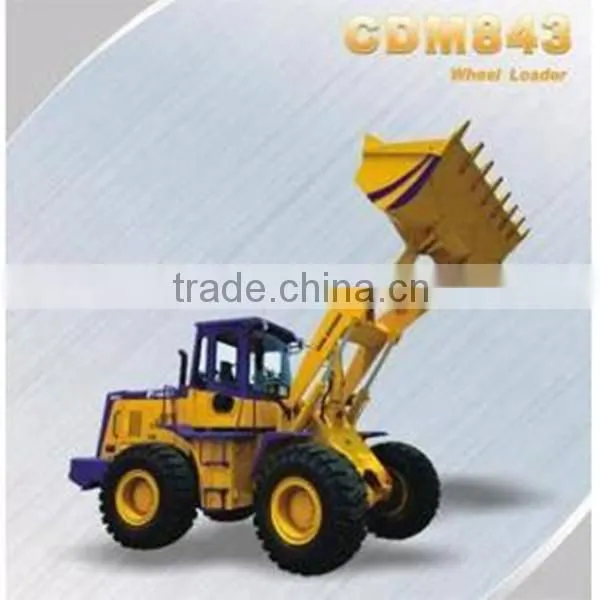

CDM843 LOADER
Contact Supplier Request Quote Chat Now
Full Luck Enterprises Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name LONKING LOADER
Model Number CDM843 LOADER
Place of Origin Shanghai, China
Type Front Loader
Moving Type Wheel Loader
Rated Load 4000kg
Certification ISO, CE
Warranty 1 year
After-sales Service Provided Overseas service center available

Specifications

LOADER
1, High Reliability
2, High Efficiency and Energy Conservation
3,Safety ,Comfortable Operation

LOADER





Product Description



Overall Data     Steering System
Bucket Capacity (m3) 2.3   Type Hydraulic Load Sensing System
Rated Payload(kg) 4000   Cylinders-bore×Stroke(mm) 2-90×340
Operating Weight(kg) 13000±300   Steering Pump Gear Pump
Traction Force(kN) 120±3   System Pressure(MPa) 16
Breakout Force(kN) 115±3   Flowrate(L/min/rpm) 138/2200
Travel speeds (km/h):   Steering Angle ±35°
  I II       Hydraulic System
Forward 11.5 36.0        Lift Cylinders-bore×Stroke(mm) 2-125×769
Reverse 16.0          Tilt Cylinder-bore×Stroke(mm) 1-160×495
Engine WEICHAI WP6G175E22   Model of Implement Pump Gear Pump
Rated Power(kW/rpm) 129/2200   Flowrate(L/min/rpm) 110/2200
Peak Torque(Nm/rpm) 680/1400-1600   System Pressure(MPa) 16
Starting Voltage(V) 24   Pilot Control System Pressure (MPa) 2.5
Drive Train     Hydraulic Cycle Time, Rated Load in Bucket(in second):
Torque Converter Single-stage, Duo-turbine, 4-element   Raise(Loaded) Dump Lower(Empty) Total
Torque Ratio 4.0   6.0  1.2 4.3 11.5
Transmission Planetary Powershift Transmission   Electrical System
Gear 2F/1R   System Voltage(V) 24
Pressure of Transmission(MPa) 1.2~1.5   Battery (2 in series)(Ah) 120
Main Reducer Spiral Bevel, 1-stage Reduction   Lamp Voltage(V) 24
Final Reducer Planetary Reduction   Service Refill Capacity
Tire 20.5-25 L-3 16PR   Fuel Tank(L) 240
Brake System     Hydraulic Tank(L) 240
Service Brake Single Circuit Caliper,Dry Brake   Crankshaft(L) 17
Setting Pressure (MPa) 0.78   Transmission(L) 45
Parking Brake Flexible Shaft Controlled Caliper   Front Axle(L) /Rear Axle(L) 23/23
Emergency Brake Flexible Shaft Controlled Caliper   Air Conditioning System
Standard/optional equipment   Heating Capacity(W) 5800 (±10%)
Standard Optional    Cooling Capacity(W) 4500 (±10%)
Lonking Transmission Lonking Axle  Standard Bucket Pilot Control Enlarged Bucket(N)-2.3m³
Overall Data     Steering System
Bucket Capacity (m3) 2.3   Type Hydraulic Load Sensing System
Rated Payload(kg) 4000   Cylinders-bore×Stroke(mm) 2-90×340
Operating Weight(kg) 13000±300   Steering Pump Gear Pump
Traction Force(kN) 120±3   System Pressure(MPa) 16
Breakout Force(kN) 115±3   Flowrate(L/min/rpm) 138/2200
Travel speeds (km/h):   Steering Angle ±35°
  I II       Hydraulic System
Forward 11.5 36.0        Lift Cylinders-bore×Stroke(mm) 2-125×769
Reverse 16.0          Tilt Cylinder-bore×Stroke(mm) 1-160×495
Engine WEICHAI WP6G175E22   Model of Implement Pump Gear Pump
Rated Power(kW/rpm) 129/2200   Flowrate(L/min/rpm) 110/2200
Peak Torque(Nm/rpm) 680/1400-1600   System Pressure(MPa) 16
Starting Voltage(V) 24   Pilot Control System Pressure (MPa) 2.5
Drive Train     Hydraulic Cycle Time, Rated Load in Bucket(in second):
Torque Converter Single-stage, Duo-turbine, 4-element   Raise(Loaded) Dump Lower(Empty) Total
Torque Ratio 4.0   6.0  1.2 4.3 11.5
Transmission Planetary Powershift Transmission   Electrical System
Gear 2F/1R   System Voltage(V) 24
Pressure of Transmission(MPa) 1.2~1.5   Battery (2 in series)(Ah) 120
Main Reducer Spiral Bevel, 1-stage Reduction   Lamp Voltage(V) 24
Final Reducer Planetary Reduction   Service Refill Capacity
Tire 20.5-25 L-3 16PR   Fuel Tank(L) 240
Brake System     Hydraulic Tank(L) 240
Service Brake Single Circuit Caliper,Dry Brake   Crankshaft(L) 17
Setting Pressure (MPa) 0.78   Transmission(L) 45
Parking Brake Flexible Shaft Controlled Caliper   Front Axle(L) /Rear Axle(L) 23/23
Emergency Brake Flexible Shaft Controlled Caliper   Air Conditioning System
    Heating Capacity(W) 5800 (±10%)
  Cooling Capacity(W) 4500 (±10%)




OPTIONS: OPTIONS OF OPERATING WEIGHT ITON, 2TON, 3TON, 5TON, 6TON.

 LONKING WHEEL LOADER

LONKING WHEEL LOADERLONKING WHEEL LOADER



LONKING WHEEL LOADERLONKING WHEEL LOADERLONKING WHEEL LOADER

Company Information



FULLWON is one of the leading truck and construction equipment distributors and exporter in China.Fullwon cooperates with leading truck manufactures and suppliers of brand name VOLVO, RENAULT TRUCK, SINOTRUCK ,LONKING and ISUZU.



Focus on the oversea market development, Fullwon is the professional exporter for heavy duty trucks, construction equipments,and spare parts in China.To face global markets sales, except complete equipment sales, we pay more attention to technology consultation and after-sale service. Technician overseas market technical guidance and training service, complete and scientific spare parts supply system are provided by us to meet different purchasing requirements from clients.

For secondhand construction equipment exportation business, we provide service including complete painting for equipment, wire sorting for equipment, quick-wear parts sales and so on.

  LONKING WHEEL LOADER



Our Services

LOADER

- After-sales Service

- In-house training and workshop

- Technical consultation service

- International Logistics Service

- Purchase solution

- Maintenance Program

- Sourcing service

- 54 items will be inspected including appearance, painting, welding, dimension, major assemblies and cabin.

- Road-testing including the working status of engine, transmission, hydraulic system, electrical system, light system, brake system and so on.

- Spare parts supply
