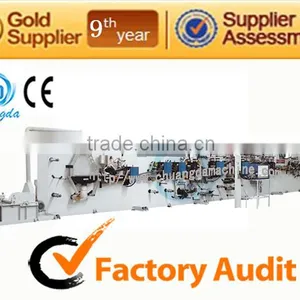

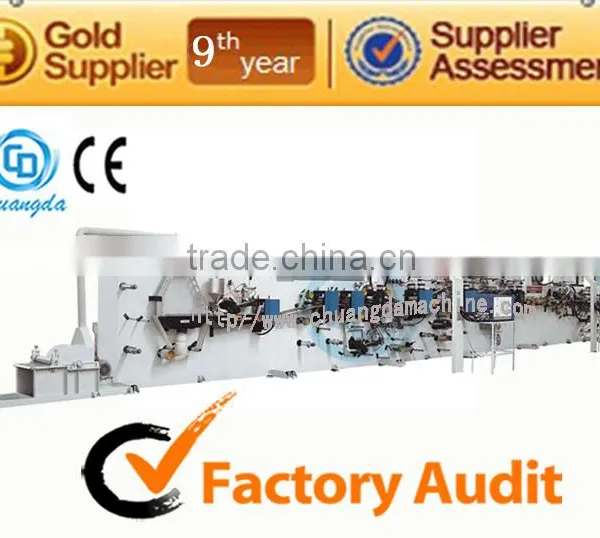

CDH-400B1 Woman Sanitary Napkin Machine
Structure and Configuration:
1.The main drive is achieved by connecting a No.45 hardened and tempered steel
shaft, a universal joint clutch and a right angle gear box.
2.The components are driven by synchronous belt and gears.
3.The main pressing and cutting roller are driven by a universal joint cluth and it
is easy
4.operate with the service life of cutting tools ensured.
5.The bearings, synchronous belts and electrical components are famous brands
in China.
Equipment Functions:
1.Common and ultra thin fluff pulp sanitary towels can be produced.
2.Dust free paper ultra-thin sanitary towels can be made.
3.Fluff pulp is spread through pulp-collecting box, and wrapped and formed with
liner of high wet strength paper.
4.Interrupted or adjustable spraying of S.A.P can be selected.
5.Independent packing with sealing device, which is easy to be torn out.
6.Length can be customized according to customer request size and shape.
7.Diversion trench shape can be customized
8.Cotton core is spread through pulp-collecting box,can make filaments thin sanitary
napkin(order by customer’s require)
Main technical parameter | |
Power supply |
380V 50HZ,four wire three phase+earth wire |
Air Compressor |
0.6-0.8Mpa(supplied by the buyer) |
Production size |
(1)Sanitary napkin day used size range:210-260(Length) (2)Sanitary napkin night used size range:260-320mm(Length) |
Installation power |
About 100KW(not including gule applicators) |
Stable production speed |
350-400 pcs/min |
Finish range |
≥97% |
Efficiency Range |
≥85% |
Overall size of equipment |
23000*2000*2600(L*W*H) |
Weight |
about 21000kg |

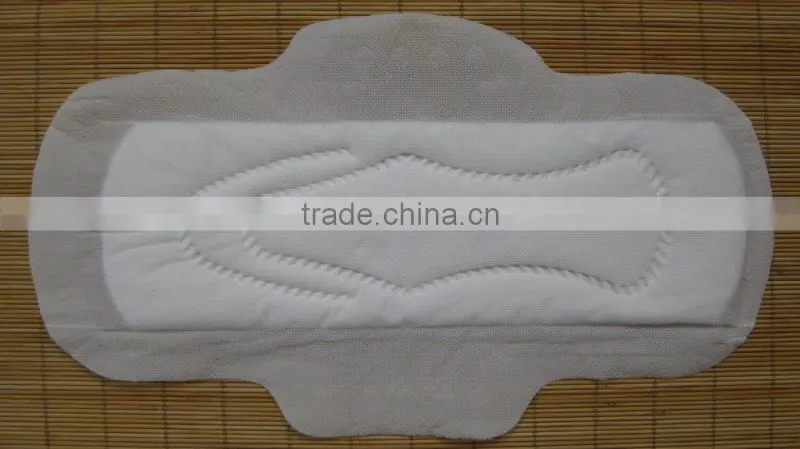

Finished product:
Our factory:
