CDH-3N-40 Full Automatic Baby diaper packing machine
1. Main technical parameters
Working speed | Up to 450-550 pieces/min and 20-30 bags/min |
Finished product rate | ≥98% |
Product thickness dimensions | 8-16mm |
Number of pieces per row | 10-45pieces/row |
Finished bags dimensions, single row : W x H x L | Min. 120x100x120 mm Max. 480x140x280 mm |
Finished bags dimension, double rows : W x H x L | Min. 120x100x280 mm Max. 480x140x560 mm |
Pre-made bags dimensions: W x L | Min. 220x220 mm Max. 580x650 mm |
Pre-made bags(PE) thickness | 40-80μm |
General dimensions (LxWxH) | 5400x4100x2100 mm 8200x4100x2100 mm(including material receiver) |
Weight | 5500KG |
Electrical Power consumption | 25KVA |
Air Supply | 0.65-0.85Mpa |
Standard process direction | from left to right( can be customized) |
2. Main Features
Fully servo driven,Servo motor management by electronic CAM
Two levels compression, suitable for varied size of packing
Modular structure design
Quick Auto/ Manual packing size switching
Force restrict protection, stable running
Stacking and packing 2 in 1, less land occupied
Suitable for single row or double rows packing
3. Machine Introduction
This machine is specially designed to connect with full automatic baby diaper making machine, it will receive diapers directly and synchronously, while the bags are conveyed to be automatically open and push diapers inside. Quantity per row is adjustable. The whole machine is controlled by PLC, it is very automatic to control, and easy to operate.

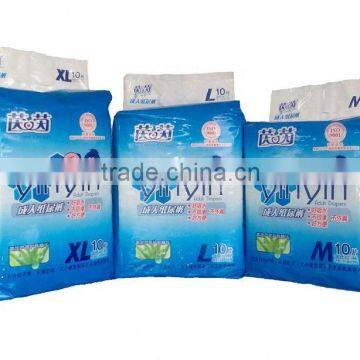

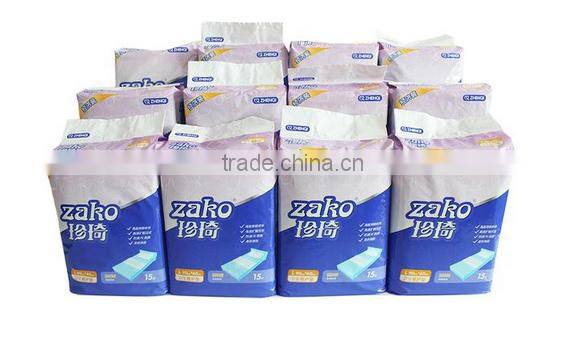

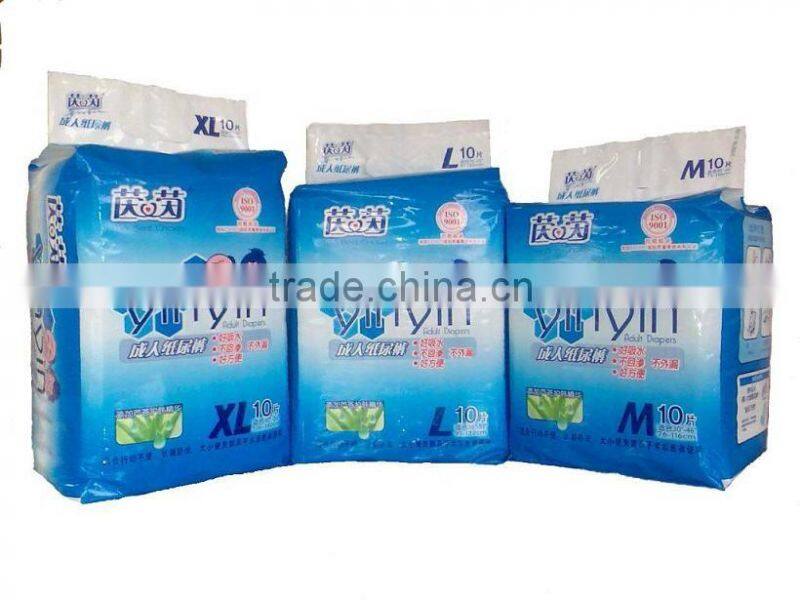

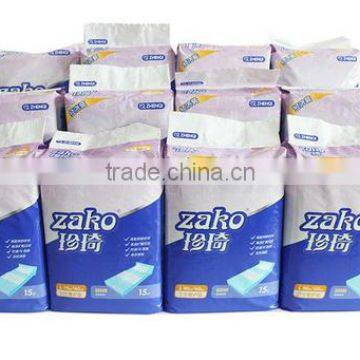

4. Finished Product Photo
5. Factory & Machine Certificate
6. Welcome to visit our factory
