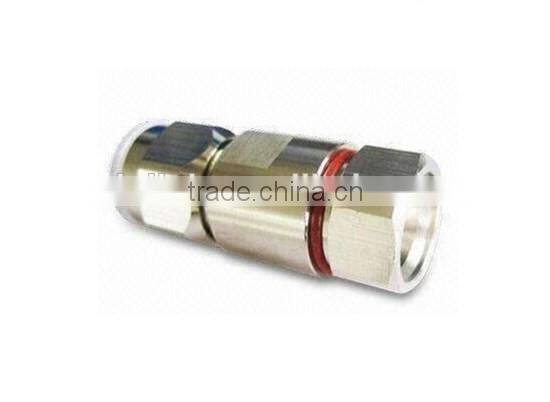

N Male Connector for 1/2 Cable
Power person who join in the what series of N products join by one whorl, it has the characteristic of reliable and strong ant-vibration nature, machinery and electric performance finely. It is used in vibration and environment abominable radio equipment of terms and instrument and ground launch system join the coaxial cable of the radio frequency extensively.
| Mechanical Characteristics | |
| Characteristic Impedance: | 50Ω |
| Frequency Range: | Flexible: 0-11GHz |
| Semi-rigid cable: 0-18GHz | |
| Withstand Voltage: | ≥2500V,50Hz |
| Working Voltage: | ≤1000V,50Hz (see level) |
| Insulation Resistance: | ≥5000mΩ |
| Contact Resistance: | Inner conductor: ≤1.0mΩ |
| Outer conductor: ≤0.2mΩ | |
| RF leakage(2-3GHZ): | Flexible: ≥90dB |
| 3rd order intermodulation | ≥140dBc |
| Material | |
| Pin conductor: | Brass--Au plated |
| Shell: | Brass--Ternary Alloy (Cu+Zn+Sn) plated |
| Socket: | Phosphor bronze / Beryllium copper--Au/Ag plated |
| Crimping suite: | Copper--Ternary Alloy (Cu+Zn+Sn) |
| Insulator: | PTFE / PFA |
| Sealing | Silastic |
| Applicable Standard |
| MIL-C-39012 CECC 22210 IEC 60169-16 |

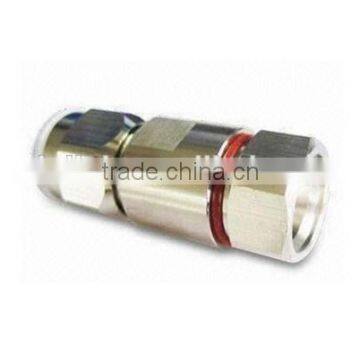

Reference Picture
1. Waterproof:
IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving.
2. Salt Mist Testing
5% concentration salt mist testing standard
Au plated, minimum 96 hours
Ag plated, minimum 336 hours
CuSnZn3 plated, minimum 336 hours
3. Aging testing
Aging testing equipment temperature standard is minimum 85 degree, take the production out after 24 hours later from the machine, the mechanical characteristics still in the standard range
Packng details
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Standard Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
Vacuumize
Vacuumize + Carton
Foam
Blister
