Home > Transportation > Electric Vehicle & Parts > Parts of Electric Bike > New! Electric WheelChair Kit 24V 180W With Lithium Battery
New! Electric WheelChair Kit 24V 180W With Lithium Battery
US$ 485 - 650
MOQ: 1 Set
Key Specifications
Get Latest Price
Part:
Wheel
Place of Origin:
Jiangsu, China
Brand Name:
cnebikes
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V 180W Two Wheel Hub Motor Wheelchair Kit for Electric Wheel ChairUS$ 480 - 690MOQ: 1 Set -
Electric Wheelchair Hub Motor 24V 180W With JostickUS$ 450 - 450MOQ: 1 Set
-
2013 Most Popular Electric Motor for Wheel ChairUS$ 680 - 720MOQ: 1 Piece
-
Parts For Electric WheelchairsUS$ 680 - 720MOQ: 1 Piece
-
Wheel Chair Electric Wheel Chair Hub MotorUS$ 680 - 720MOQ: 1 Piece
Part
Wheel
Place of Origin
Jiangsu, China
Brand Name
cnebikes
Specifications
Power: 24V 180WDesign: Brush or brushless for choosing.
Wheel: 24 inch 12 inch
Max Speed: 6km/h
Loading: 150 kg
Product detail:
24V 180W motor ewheelchair kits
1. Motor: 24V 180W
2. Whole kit containing: Two elertric wheel chair 24V 180W motors wheel ( right and left)
One joystick controller
24V 17ah li-mn battery (with rick and charger )
3. Wheel size: 24" wheel
4. Warranty: 2 years
5. Easy to install
6: CE UL
More capacity battery?
24V 30V lifep04 battery
Weight: 9kg
Battery size: 65 X 45 X 20 mm
Trip distance: More than 50km
Charger: 4A charger
Charger time: About 7 hours
| item | parameters |
| contour dimension | 1150×700×930mm |
| wheel base | 312mm |
| wheel tread | 535mm |
| road clearance | 85mm |
| least radius of gyration | 1.2m |
| net weight | 47kg |
| maximum load | 120kg |
| Front wheel specifications | 7.5 inch |
| Rear wheel specifications | 24 inch |
| Motor Voltage | 24V(DC) |
| motor power | 180W |
| battery | li-battery,24V 17Ah |
| chargers input | AC110V/AC220V |
| charger output | 27.2(DC) |
| maximum range | ≥20Km |
| maximum speed | ≤6Km |
| climbing ability | ≥8° |
| Slope ability | ≥8° |
| longitudinal stability | 20° |
| lateral stability | 15° |
| Obstacle-navigation hight | ≥40mm |
| Obstacle-navigation width | 100mm |
wheel with motor

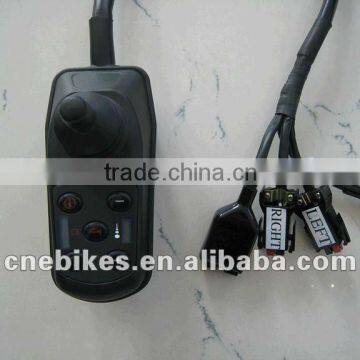

Joystick controller

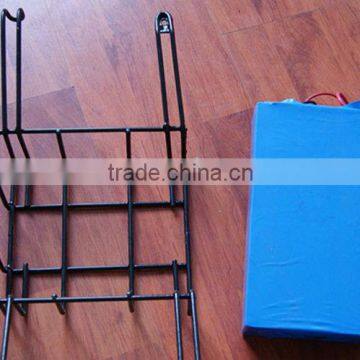

Battery
We also sell ull e wheelchair
