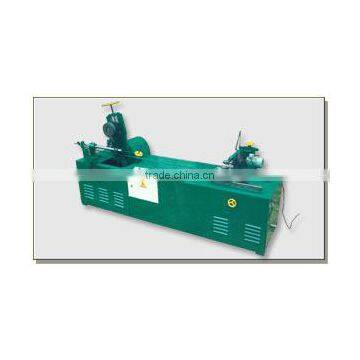

cs-10type spiral/TWILL tube making machine (full-auto)
1. DETAIL MESSAGE:
full-auto Spiral/Twill tube making machine for fireworks. it can roll (full-auto) glue and divide paper and drop out tube on one machine. It need pump. The machine is used for producing parallel paper tube and then cut it into short tubes at another cutting machine. It consists of paper stand, gluing device (automatic cycle system with diaphragm pump), auto-water-adding system, paper cutting device, tube forming, tube-cutting and discharging device. The machine is equipped PLC and step motor with machine.
2. Technical parameters
Technical parameters CS-10 type | |
Number of roll paper |
1-10 layer |
Tube ID |
12-150 mm |
tube thickness |
2-50 mm |
Applicable paper gram |
120-500gsm |
Max. Paper tube length |
5000mm |
Winding head |
2 rolls of belts |
Cutting tube mode |
Single circular knife cutting |
Glue way |
Single sides |
operation |
1 person |
Paper delivery speed |
20m/min |
Speed control |
transducer |
Applicable glue |
white glue/Tapioca starch glue |
Input power |
1*3KW/380V/50HZ/3phases |
weight |
1200 kg |
Main frame size |
3000×1000×1650mm |
