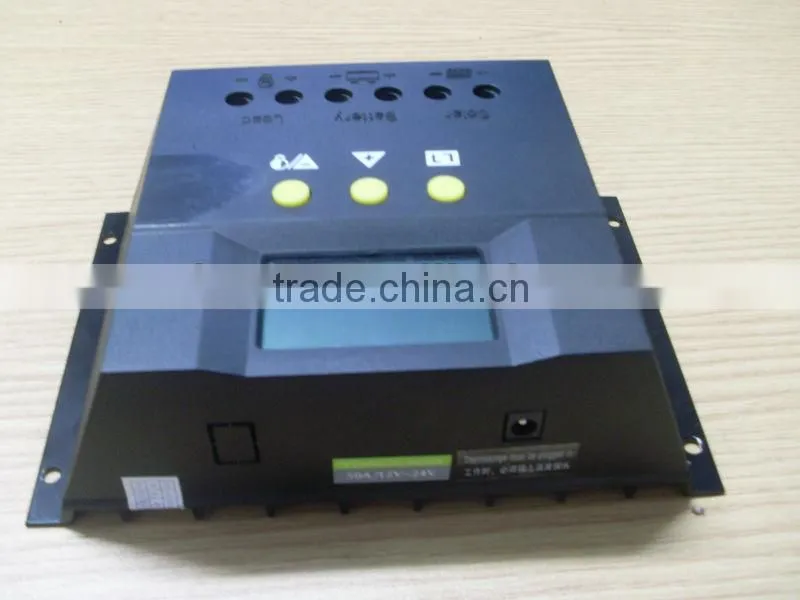

48Volt 30amp PWM Best Price Solar Charge Controller With LCD 12V/24V Auto
US$ 83.99 - 85
MOQ: 40 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOXIN
Model Number:
DX30A-48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot! 30A 48V PWM Solar Charge Controller Led ControllerUS$ 12.99 - 13.99MOQ: 20 Units -
Hot Sales 30A 12V/24V PWM Solar Charge Controller LED Light Solar RegularUS$ 21.8 - 23MOQ: 20 Units
-
50A 48V PWM Solar Charge Controller With LCD Auto Temperature ControllerUS$ 43.65 - 45.21MOQ: 40 Units
-
50A PWM Solar Charge Controller With LCD 12V/24V AutoUS$ 43.65 - 45.21MOQ: 40 Units
-
Wind Hybrid Solar Charge Controllers Led Solar Charge Controller 10A 12V/24V AutoUS$ 12 - 13MOQ: 30 Pieces
Place of Origin
Guangdong, China
Brand Name
DOXIN
Model Number
DX30A-48V
Application
Charger Controller
Rated Voltage
48V
Maximum Current
30A
Product Description

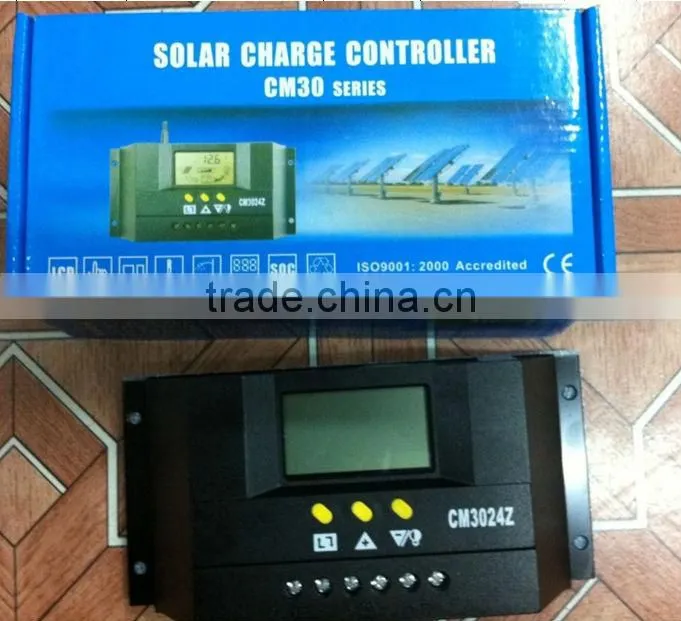

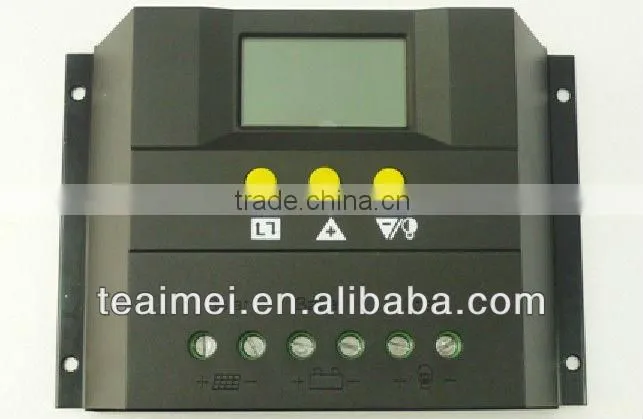

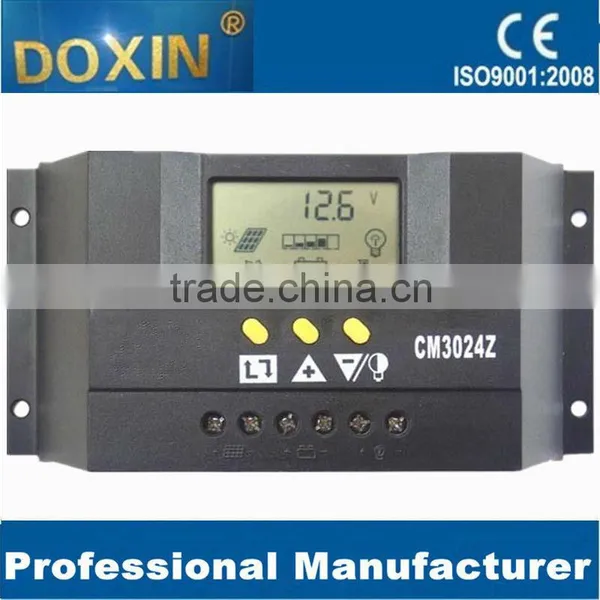

30A PWM solar charge controller with LCD 12V/24V auto
1. Product Introduction
CM series controller is a kind of intelligent, multi-purpose solar charge and discharge cotroller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements. CM series controller has following features:
- Image of LCD graphic symbol
- Simple button operation
- Sutomatic Identification System Voltage Level
- Intelligent PWM charge mode
- Automatic Temperature Compensation
- Adjustable charge-discharge control parameters
- Settable operating mode of load
- Overload, short circuit protection
- Remote monitoring and control function(custom)
- Battery reverse-discharge protection
- Battery low voltage disconnection(LVD)
- Battery reverse connection protection
- Accumulated function of charge and discharge ampere hours
2. Installation
- Ready tools and cables. Encourage you to matching the right cables. Ensure that the current density
- Install the controller nto a fixed vertical plane. See section 5 ofthe pore size and pore spacing. In order to ensure a good thermal control onditions, please set aside each 10cm below the controller space.
- As shown on the right, connect the(1) Load, (2) Battery and (3) Solar Panel to the controller according to the order of (1) (2) (3). Pay attention to the load, battery, solar panel and controller of same polarity.
- Put into the external temperature sensor on the left of the controller(probe port). The temperature sensor should be similar space with battery. ( otherwise, the controller will control the paramaters of all wrong temperature compensation.)
- If you have remote monitoring and control function, please insert one end of the included communication wire on the right of the controller(communication port), the other end to connect to the host computer.

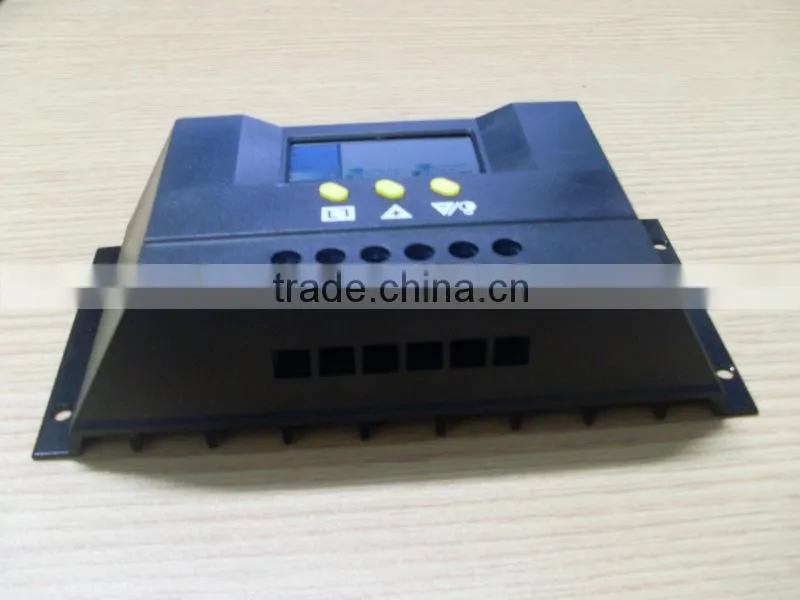

3. Detailed Pictures

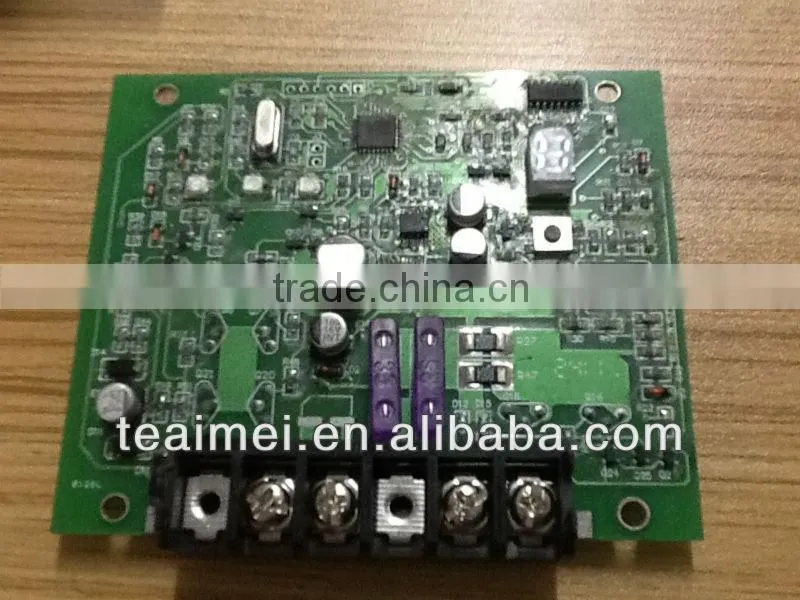

Circuit board
4. Relative hot sale products:
40A Solar charge controller
50A solar charge controller with LCD
60A solar charge controller with LCD
5. Application
Company Information
6. Our factory:
Production Machinery
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
Condition |
Injection machine |
CJ 120M3V |
12 |
4.0 |
Acceptable |
Electric iron |
No information |
15 |
4.0 |
Acceptable |
Electric screw press |
No information |
16 |
3.0 |
Acceptable |
Plastic welding machine |
HH77600 |
1 |
2.0 |
Acceptable |
Punching machine |
No information |
4 |
3.0 |
Acceptable |
Printing machine |
No information |
2 |
3.0 |
Acceptable |
