50A PWM solar charge controller with LCD 12V/24V auto
1.Product Introduction
CM series controller is a kind of intelligent, multi-purpose solar charge and discharge cotroller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements. CM series controller has following features:
- Image of LCD graphic symbol
- Simple button operation
- Sutomatic Identification System Voltage Level
- Intelligent PWM charge mode
- Automatic Temperature Compensation
- Adjustable charge-discharge control parameters
- Settable operating mode of load
- Overload, short circuit protection
- Remote monitoring and control function(custom)
- Battery reverse-discharge protection
- Battery low voltage disconnection(LVD)
- Battery reverse connection protection
- Accumulated function of charge and discharge ampere hours
Solar Charge Controller with LCD Display | ||
Model |
DX12V050 |
DX48V050 |
Max.Charge Current |
50A |
|
|
|
|
System Voltage |
12/24V Auto |
48V |
Float Charge |
13.7/27.4V |
54.8V |
Boost Charge |
14.4/28.8V |
57.6V |
Charging Mode |
PWM |
|
Temp.Compensation |
Yes |
|
LCD Display |
Charging Current /Voltage /status ,Battery voltage / temperature /Temperature |
|
Other Function |
Light Control with Time Control |
|
Dimension |
18.7×12.7×5.5cm(L×W×H) |
|
N.W./unit |
0.7kg |
|
QTY/Ctn |
24Pcs |
|
Packing |
Gift box |
|
Meas./Ctn |
57×42×23cm ,18Kgs |
|
Warranty |
12 Months |
|
2.Installation
- Ready tools and cables. Encourage you to matching the right cables. Ensure that the current density
- Install the controller nto a fixed vertical plane. See section 5 ofthe pore size and pore spacing. In order to ensure a good thermal control onditions, please set aside each 10cm below the controller space.
- As shown on the right, connect the(1)Load, (2)Battery and(3)Solar Panel to the controller according to the order of (1)(2)(3). Pay attention to the load, battery, solar panel and controller of same polarity
- Put into the external temperature sensor on the left of the controller(probe port). The temperature sensor should be similar space with battery. (otherwise, the controller will control the paramaters of all wrong temperature compensation.)
- If you have remote monitoring and control function, please insert one end of the included communication wire on the right of the controller(communication port), the other end to connect to the host computer

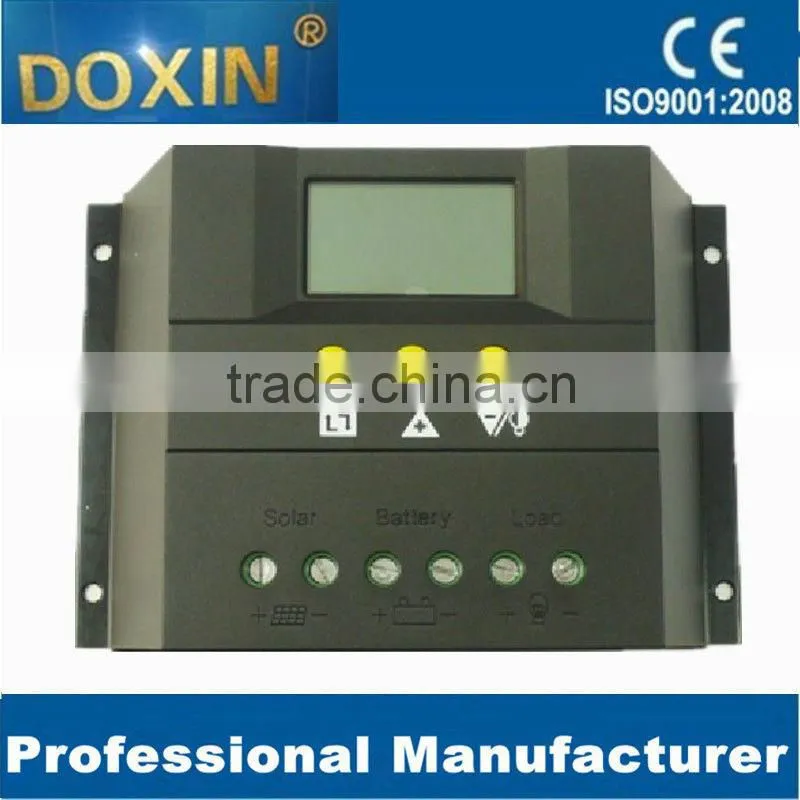

3.Detailed pictures:

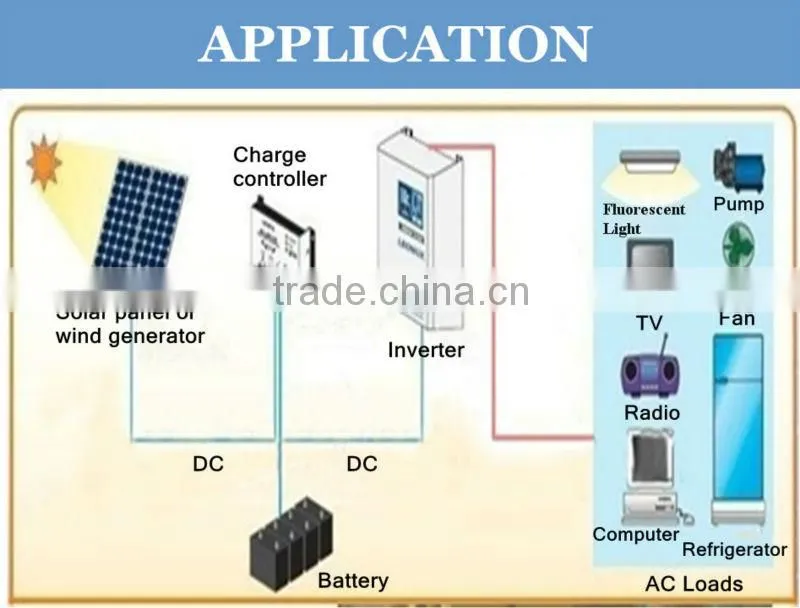

4.Application

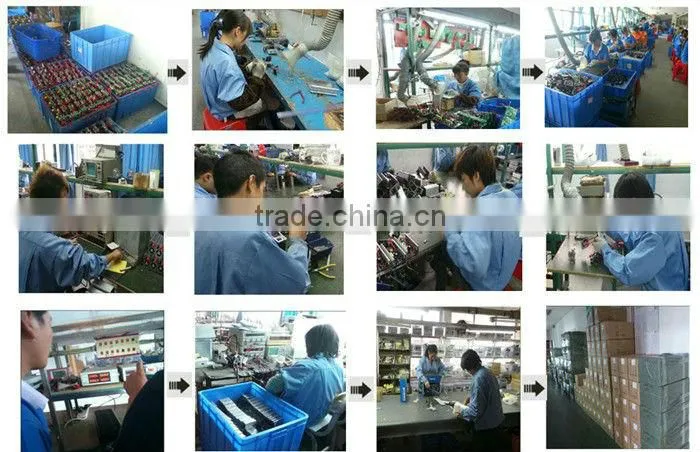

4. Our factory:Production Machinery
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
Condition |
Injection machine |
CJ 120M3V |
12 |
4.0 |
Acceptable |
Electric iron |
No information |
15 |
4.0 |
Acceptable |
Electric screw press |
No information |
16 |
3.0 |
Acceptable |
Plastic welding machine |
HH77600 |
1 |
2.0 |
Acceptable |
Punching machine |
No information |
4 |
3.0 |
Acceptable |
Printing machine |
No information |
2 |
3.0 |
Acceptable |
