5A wind generator battery solar hybrid charge controller inverter with LED

FOB Price

USD $3 - $30 / Piece

30 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port guangzhou
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	DOXIN	Model Number:	DX-SL5A
Application:	Other, Charger Controller, Solar street lamp,solar systems	Rated Voltage:	Other, 12V/24V Auto	Maximum Current:	5A

Product Description

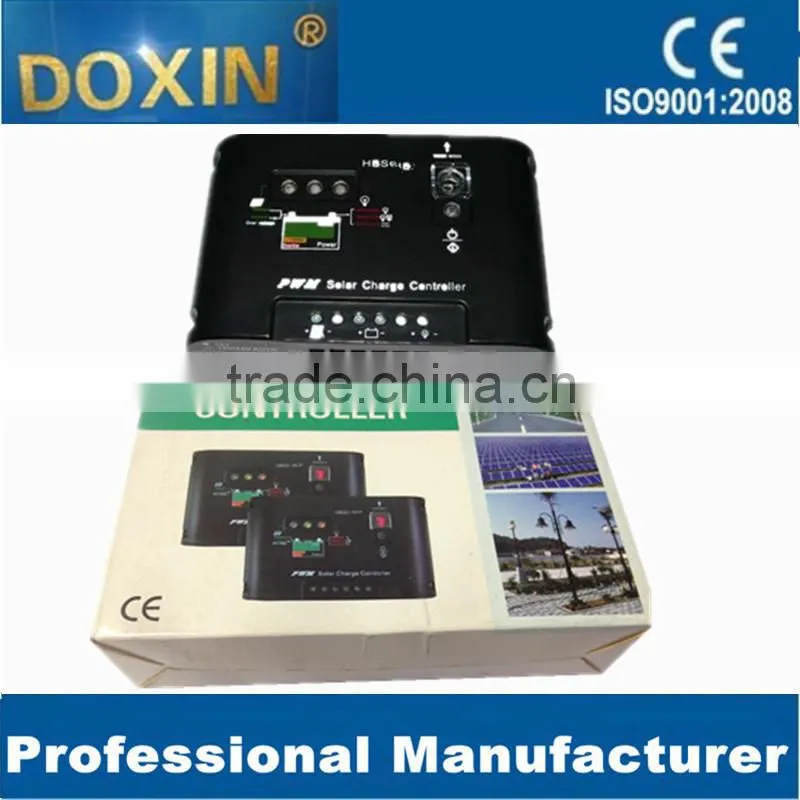

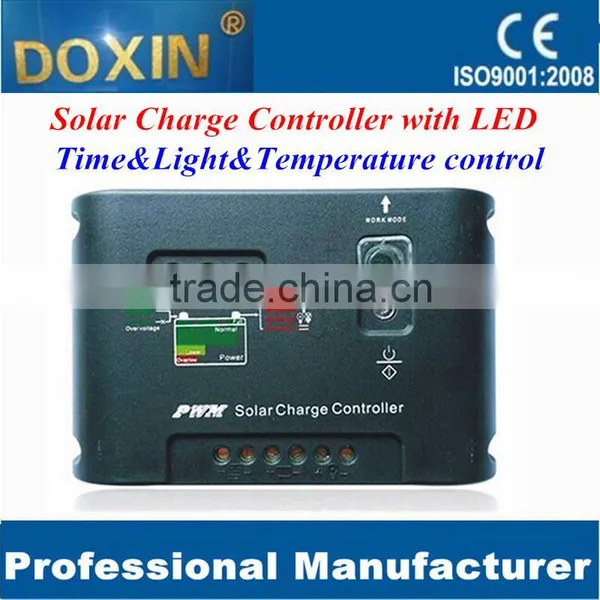

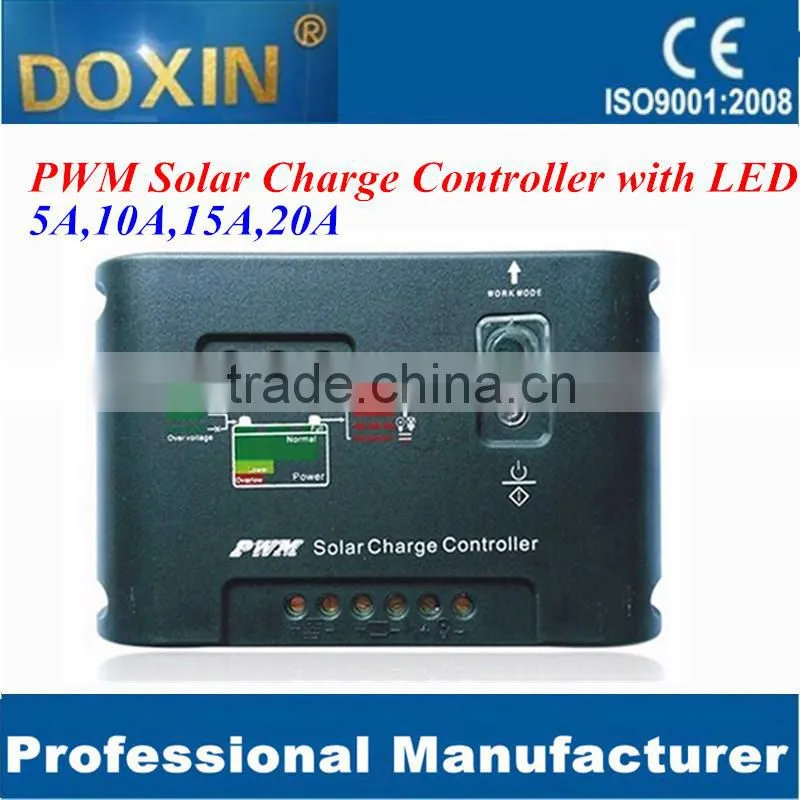

5A wind generator battery solar hybrid charge controller inverter with LED

Light and timer control (Single timer and dual timer optional)

Ideal for public lighting area, such as street light, path way, garden lights, parking area,bus station etc.

Current: 10A/15A/20A

Voltage: 12/24V auto work

Summarize

LC series solar charge controller adopts the most advanced digital technique and operates automatically.

The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery.

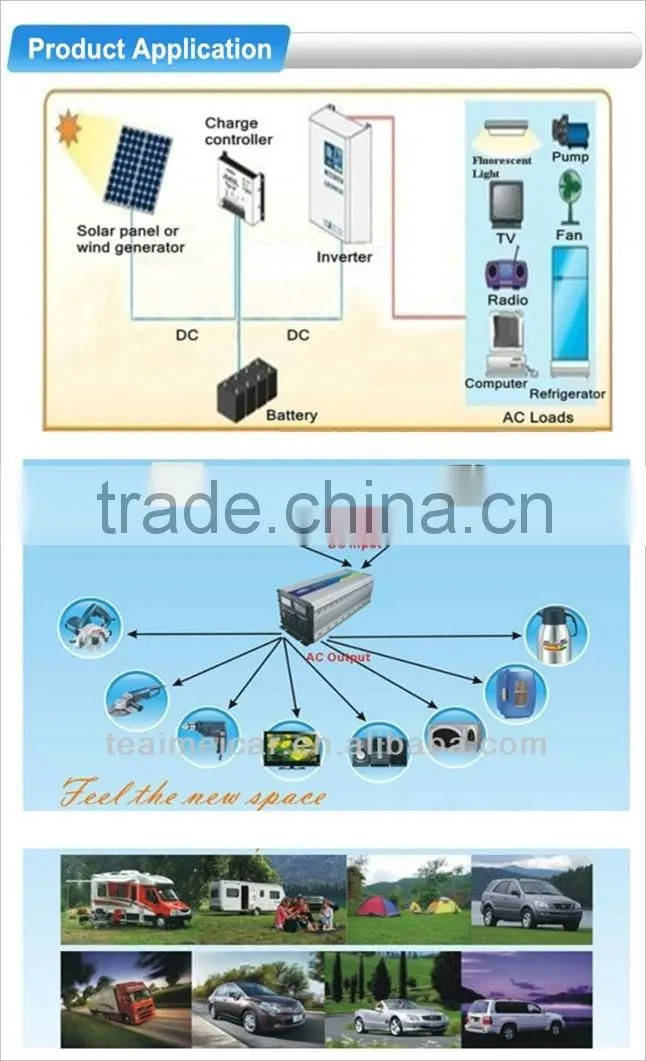

Application:

Ideal for off-grid solar lighting system that needs light and timer control

Solar street light system

Solar garden light system

Solar billboard

Solar detection equipment etc.

Features

Intelligent System Optimum Control
High efficient Series PWM charging with temperature compensation
Compact size
Use MOSFET as electronic switch, without any mechanical switch
Digital LED menu, only one key choose the battery type
Load status display
Gel, Sealed and Flooded battery type option
Big terminals and big distance between terminals
Electronic protection: Overheating, over charging, over discharging, overload, and short circuit
Reverse polarity protection: Any combination of solar module and battery
In-build high accuracy constant current (LED Driver), with 91%-96% output efficiency
High efficiency series PWM charging
Over-load, Load short-circuit, PV/battery reverse polarity protection, ect.
A setting button to set adjustable lighting control option
Full power timer, Second timer, Third timer, hours to dawn timer are option with different output power
With self-dimming capability basing on battery voltage to save energy and realize lamps turn on for 365days.
Special for LESS THAN 70W Solar LED Street Lights

Electronic Protections:
·Overheating
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity

Sepecification

Fully digitized microprocessorcontrol ,useSCM
Provide longerbattery lifeand improved system performance
Series PWMchargemode&State of Charge(SOC) battery regulation
4stagescharging :Equalization,PWM,Boost Float
External temperaturecompensation sensor
LED displayfor charging, Battery andDC loadrunning stateand fault
Full circuit protection,
Overloadand shortcircuit protection and resume when released
Over dischargeprotection and resume
Over chargeprotection
Reverse polarity protection forsolarpanel ,battery andDC load.
Reverse currentat night
Lighting protection
12V or 24VDC automatic work
Optional loadcontrolfunctions:TimeControl,
Light Controland Timer set usefor solarstreet light

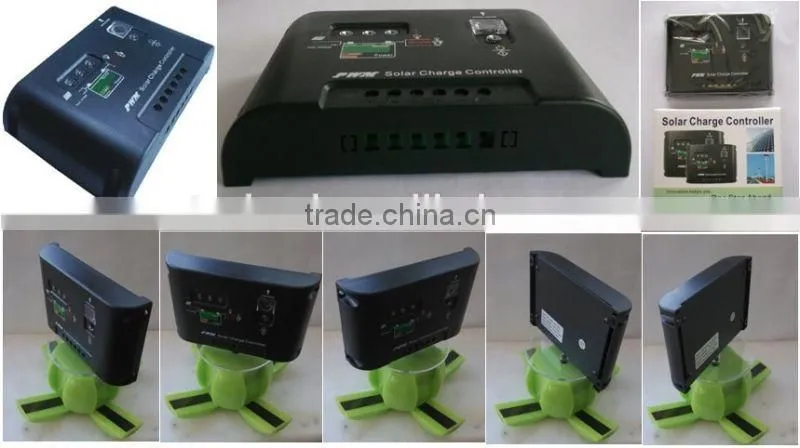

SCH10,SCH10-ST twoshape optional

ITEM	MODEL	DX-SL5A	DX-SL10A
Ratedchargecurrent		5A	10A
Rated loadcurrent		5A	10A
System voltage		12/24V AUTO work
Protection	Over load	125% for60sec.150% for5sec.for load and solar panel
	Shortcircuit	Over 300%, shut offat noce.for load and solar panel
	Over voltage	17V / 2*17V,for load
	Low voltage	10.5VDC/21VDC
	Reverse polarity	protection forsolar panel ,battery andDCload.
	Reverse current	yes.at night
	Lighting protection	yes
Staticcurrent		≤ 6mA
Voltagedrop	Chargingloop	≤ 0.26V
	Dischargeloop	≤ 0.15V
Charging	Boostcharging	14.6V,29.2V for 30Mins.Only forBattery wasoverdischarged.
voltage	Equalizing charging	14.4V,2*14.4V for30mins
	Floatcharge	13.6V, 2*13.6V
	Charging recovery	13.2V,2*13.2V
	Temperaturecompensation	-5mv2V
	Battery low	12.0V, 2*12V
	Loaddisconnect voltage	11.1V- 2*11.1V
		13.1V,2*13.1V
	Over dischargeforced recovery	12.5V,25.0V, ( recovery by switch )
Charging controlmode		Series PWMcharge mode &State of Charge(SOC),Automatic compensation
Running temperature		Industrygrade :-35 to +55;Commercial Grade: -5 to +50
Tropicalization		PCB was spraycover.Terminals corrosion protected
Protection class		IP22
Case material		ABS
LED display		Charging, Battery and DC load running state and fault
Terminalsize		Max6 Sqmm wires
Optionalfunctions		Time+light Control(RC),Timer set(RC-M),usefor solar street light
Productsize(mm)		13319.926.9	13319.926.9
Carton size(mm)		510310210mm/50PCS	510310210mm/50PCS
Carton weight(kg)		11	11

Temperature Compensation Coefficient

Description	Parameter
Temperature Compensation Coefficient(TEMPCO)*	-30mV/°C/12V(25°C ref)

* Compensation of equalize, boost, float and boost reconnect voltage
