Specifications

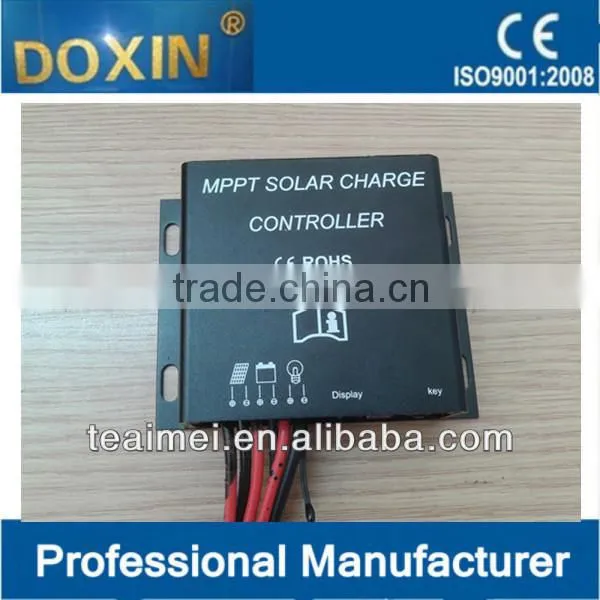

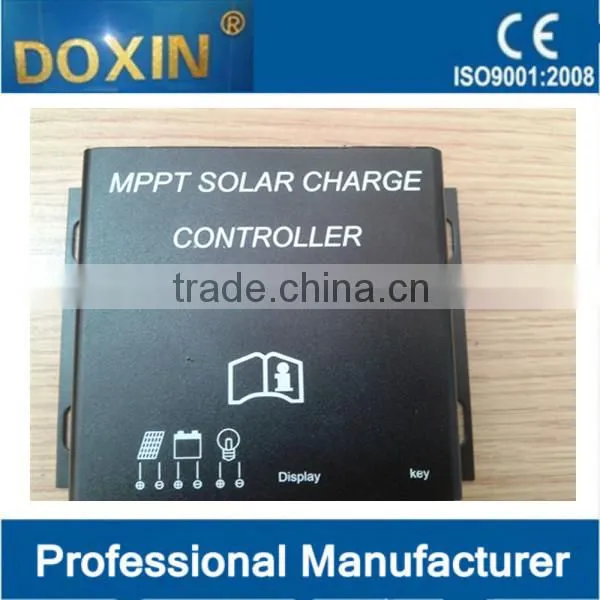

Hotsale MPPT waterproof solar controller(1) Vivid LCD screen signal and precise operation.
(2) Intelligent MPPT charging mod
Hotsale MPPT waterproof solar controller
PMW charger controller
Specifications:
Type |
SDRC-10A PWM |
SDRC-20A PWM |
|
|
Rated charge current |
10A |
20A |
|
|
Rated load current |
10A |
20A |
||
Work voltage |
12v; 12/24V Auto |
|||
Over load, short circuit protection |
1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action. |
|||
No load current |
≤6mA |
|||
Charging circuit voltage drop |
≤0.26 V |
|||
Load circuit voltage drop |
≤0.15 V |
|||
Over voltage protection |
17V; ×2/24V |
|||
Work temperature |
Industry stage:-35°C to +55°C; |
|||
Boost charge voltage |
14.6V;×2/24V; (keep 10min) |
|||
Direct charge voltage |
14.4V; ×2/24V; (keep 10min) |
|||
Float charge voltage |
13.6V; ×2/24V; |
|||
charge return voltage |
13.2v;×2/24V; |
|||
Temperature compensation |
-5mv/°C/cell (Boost charge, Direct charge, Float charge, charge return voltage); |
|||
Lower voltage indicate |
12.0V; ×2/24V; |
|||
Over discharge voltage |
11.1V(no load)- real-time modified voltage by the discharge rate; ×2/24V; |
|||
Over discharge return voltage |
12.6V; ×2/24V |
|||
Control mode |
PWM charge mode; modified discharge voltage by the discharge rate |
|||

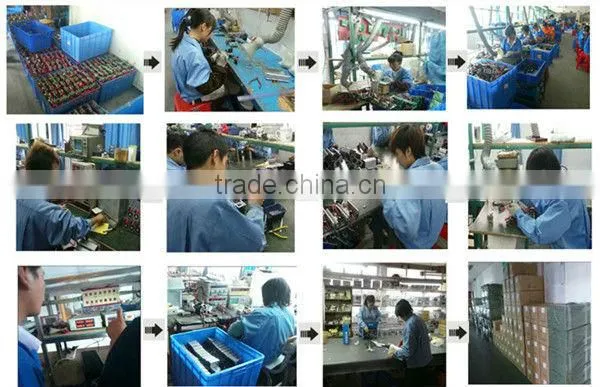

DOXIN is a professional manufacture specialized in electronics and solar products
We produce electronics products more than 10 years .We have professional devel-
opment team.We pursues to establish the culture of "quality first ,reputation best ".
Our products usually are exported big quantity in to Europe, USA,African, Russia, Australiaetc. and our power inverter serials enjoy better reputation .With reliable
quality and stable performance.
