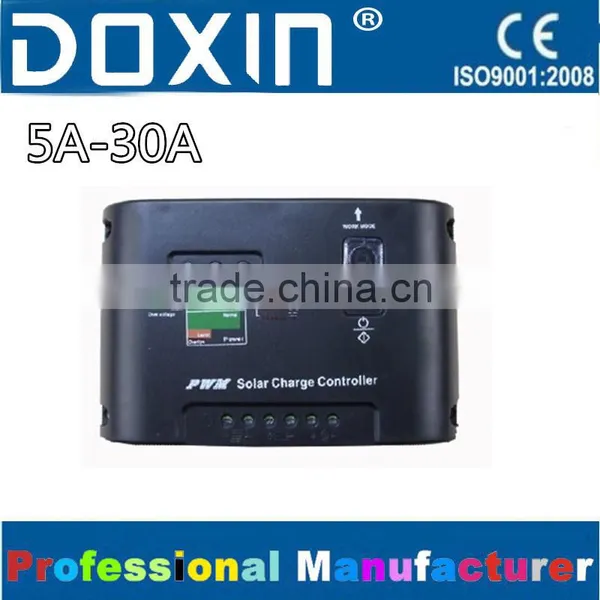

15A Solar Charge Controller (12V/24V)
Available current: 5A, 15A and 20A

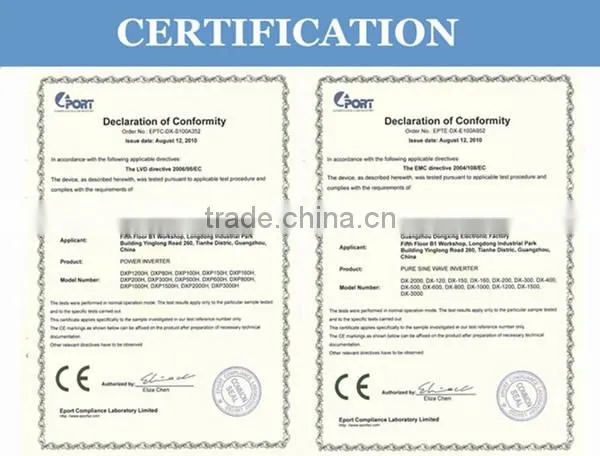

CE certificate and ISO9001
Characteristics:
1. Control Circuit: use the MCU and professional software as the control center to fulfill intelligent system control.
2. Charging mode: use serial mode PWM high effciency charging way. Boost, reconvery and float charging auto work for battery long-life. Use temperature compensation.
3. High accuracy over discharging control by the discharging rate: over-discharging control voltage modified by the battery discharging rate curve.
4. Self protection: Protection to overload, outside and inside short circuit, reverse connection, thunder and lightning, PV penal revers current, over charging and discharging etc. No component will be damaged inall protections, include fuse.
5. LED indication on system condition: LED indication of system working status of charging, overcharge, power full, power low, over-discharge, over-load, out short circuit, load on/off, etc
6. Industry leval production standard: Temperature running area -35 to +50
7. No adjustable resistance: use flash memory to save all work control point instead of adjustable resistance in order to make sure the control accuracy and reliability
8. Multiple work modes: Light ON+light OFF, light ON+xx hour delay OFF, common controller, test, etc, can be set easily.
9. Digital display & one key setting: the digital LED display indicates the work mode. One button operated to fulfill all settings easily.
10. Two time period output setting in night: Getting into night ON+xx hour delay OFF, load off-time, xx hour delay ON+Getting into day OFF. The load off-time in night uses fuzzy controlling o calculate depending on the night time varation in different season
11. Two output modes: DC output; 1HZ output for needed flashing load, such as LED lamp.
Warranty&Returns:
• 1 year warranty from date of purchase record:
Please email us first if you have any questions or problems with the item received. We will try our best to solve the problem for you.
If we cannot help you through emails, we will give you return instructions.
No refund or replacement will be processed without the item being returned back to us. We reserve the right to refuse any returns for our reasons.
• Buyer is responsible for return shipping cost in any situation.
• We will not be liable to customer for any damages beyond the amount of money that customer has actually paid us.
