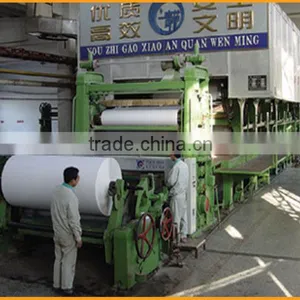

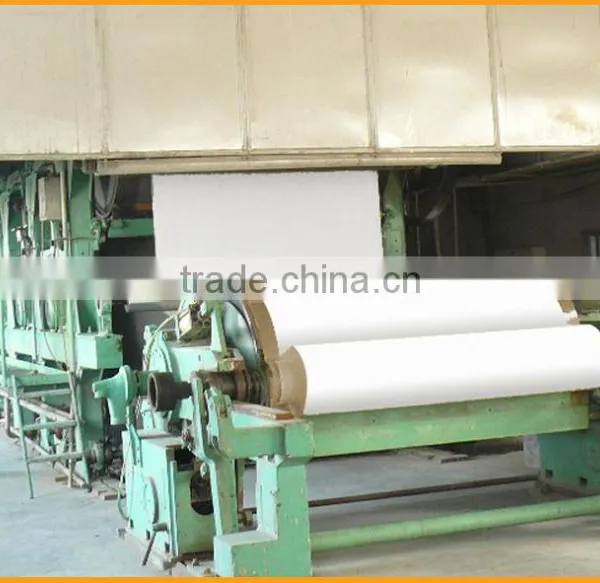

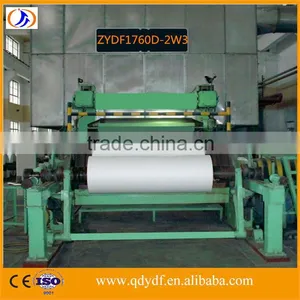

ZYDF1760D-2W3 New high performance quality assurance office A4 copy paper ,writing paper,notebook paper making machine
| Model | ZYDF1760D-2W3 |
| Dryer cylinder diameter | 2500mm |
| paper grams | 40-100g/m² |
| Power | 110kw |
| Weight | 75t |
| Dimension(L*W*H) | 21000*3100*4900mm |
| Speed | 60-120m/min |
| Production capacity | 11 Tons |
ZYDF1760D-2W3 New high performance quality assurance office paper A4 copy paper writing paper notebook paper making machine is mainly used for manufacturing of writing paper,a4 paper,fruit bagged paper,cardboard paper,corrugated paper. ZYDF1760D-2W3 New high performance quality assurance office paper A4 copy paper writing paper notebook paper making machine adopt to pulp by double cylinder and double dryer machine with 150m/min in design speed and 60-120m/min in working speed. ZYDF1760D-2W3 New high performance quality assurance office paper A4 copy paper writing paper notebook paper making machine has the new technologies of pulse pneumatic blanket for the school ,electric tension bridle device. ZYDF1760D-2W3 New high performance quality assurance office paper A4 copy paper writing paper notebook paper making machine is controlled by distributed frequency and has the advantages,such as digital display, the speed synchronization lifting, fine-tuning synchronization, automatic memory, easy operation, stable performance, reliable quality, energy conservation and environmental protection . ZYDF1760D-2W3 New high performance quality assurance office paper A4 copy paper writing paper notebook paper making machine is an ideal product of paper making machine.
2- Complete A4 copy paper making machine production line technological process:
1)-Put the raw materials,such as waste paper,paper trimmings and others, into pulping equipment for the process of pulping,screening,bleaching
2)-After pulping system,produce satisfied pulp for paper production
3)-Put pulps into paper machine by conveyor system and make jumbo roll paper
4)-Converting jumbo roll paper into A4 paper,notebook ,exercise book

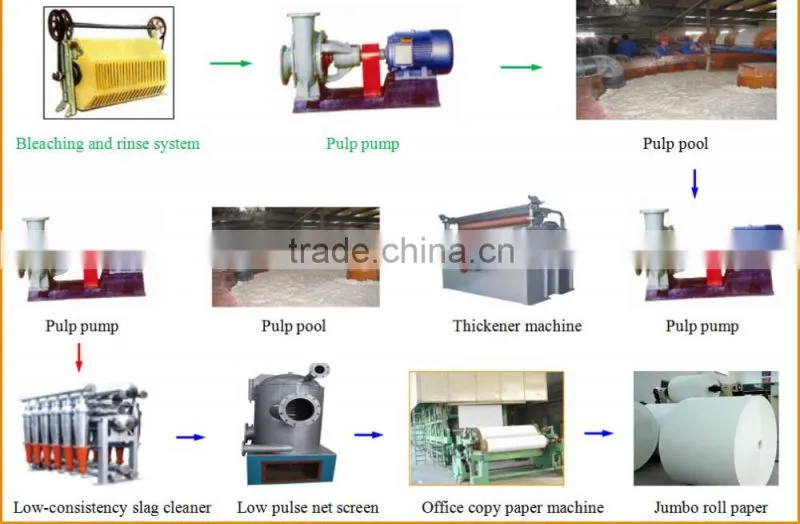

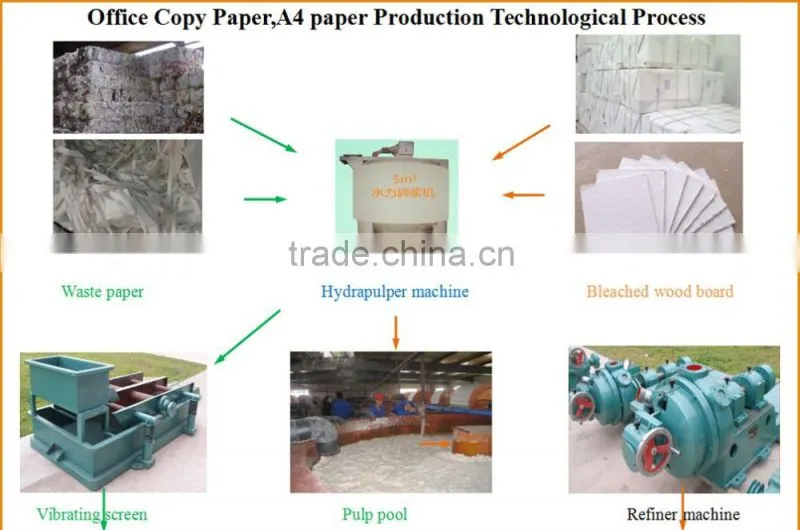

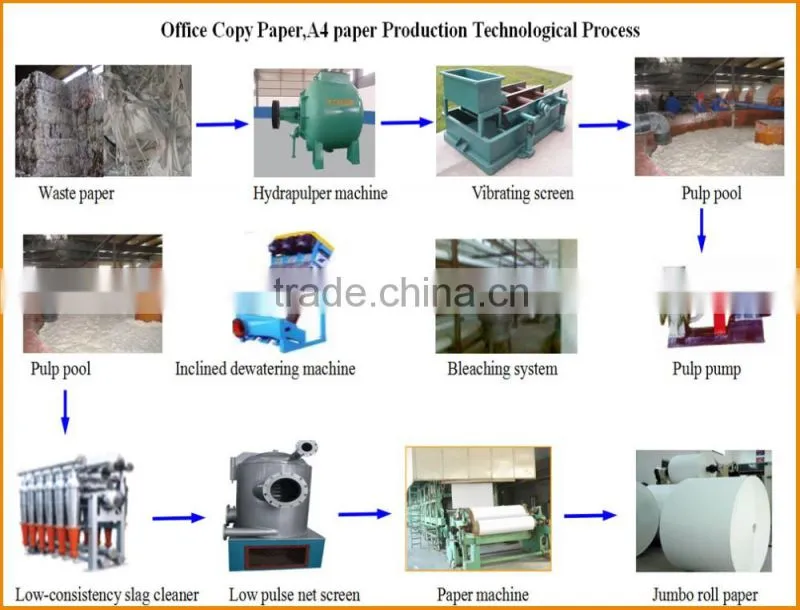

Waste paper recycling pulp type office paper,A4 paper,writing notebook paper production process:
Waste paper recycling and bleached wood pulp type office paper,A4 paper,writing notebook paper production process:

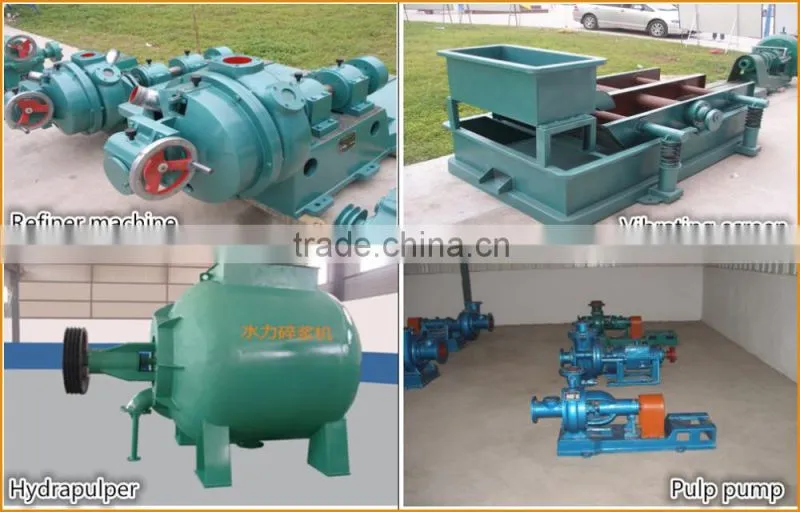

A4 copy paper making machine production Pulping equipments:

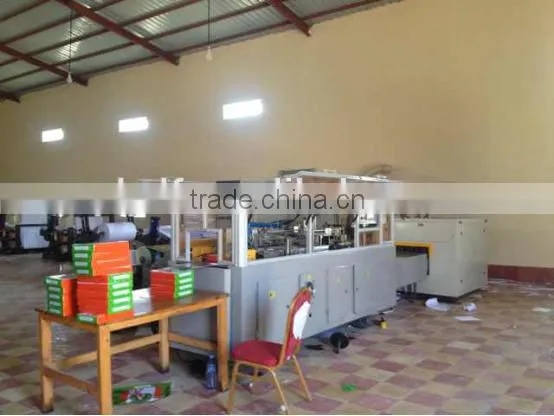

Application:

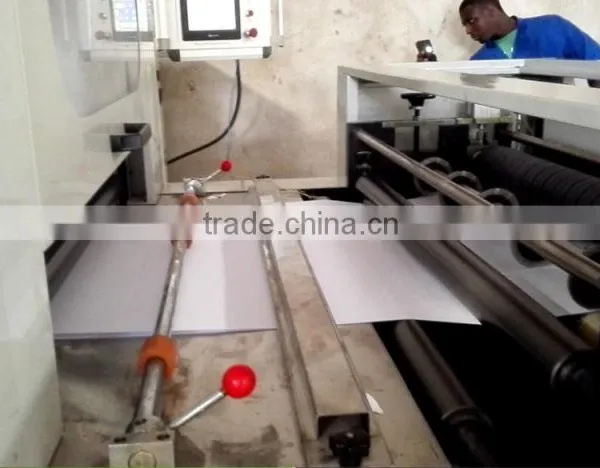

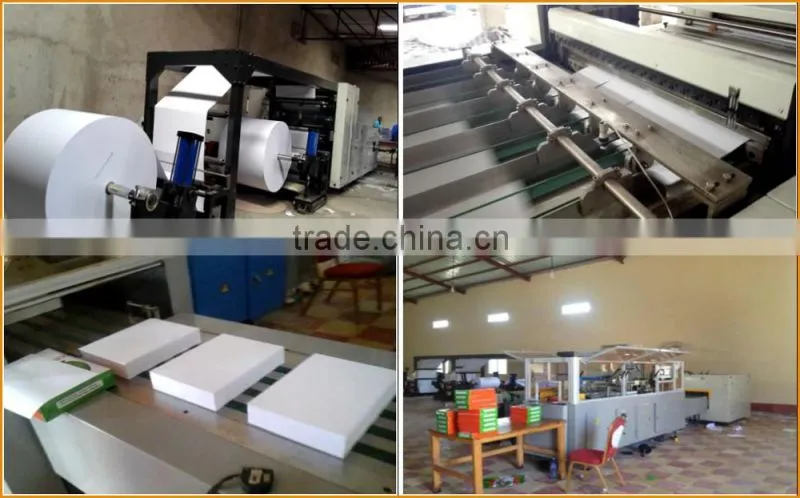

The machine is suitable for all kinds of office paper cutting; At the same time also can be applied to all kinds of PET, and small sizes of disposable paper plastic composite cutting.
Performance and features:

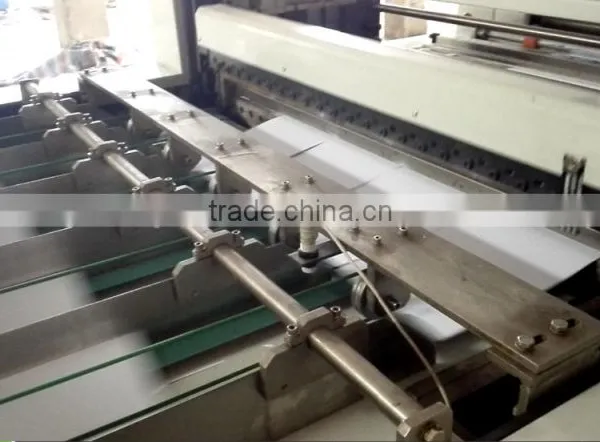

· A4 paper slitting machine adopts imported servo motor, PLC panasonic (Japan) programmable central control system, in response to the reel material in the market, through the application of disposable sliced into the A4 size you required. At the same time, through the automatic sorting device for automatic stacking; Easy operation, high degree of automation; Relative to the traditional cutting process,improve the human efficiency.
·Transmission system control by mechanical CAM and combined with pneumatic hydraulic photoelectric sensor system, centralized control .feeding system adopts hydraulic automatic lifting device loading capacity; This machine integrates light ,electricity ,liquid gas, with high cutting precision, mechanical stability, low noise advantages advantages.
· Main motor adopts frequency control of motor speed, automatic counting and alarm parking, tension digital display Advanced functions such as automatic eliminate waste side.
technological parameter
Grams: 50g-350g
Cutting width:≤1100mm
Precision:±0.2mm
Cutting length:20mm-800mm
Speed: 50M/min
Cutting frequency:10—140times//min
Max paper roll diameter: ≤1400mm
Power: 22kw/380V/50Hz
Weight: about 9000kg
Cutting machine dimension :L×W×H(13000 mm×1500 mm×2000mm)
Packing machine dimension:3000x3500x2100mm

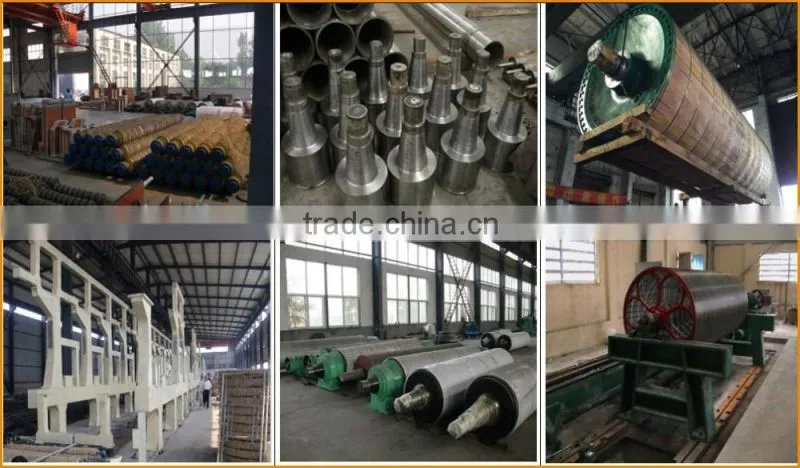

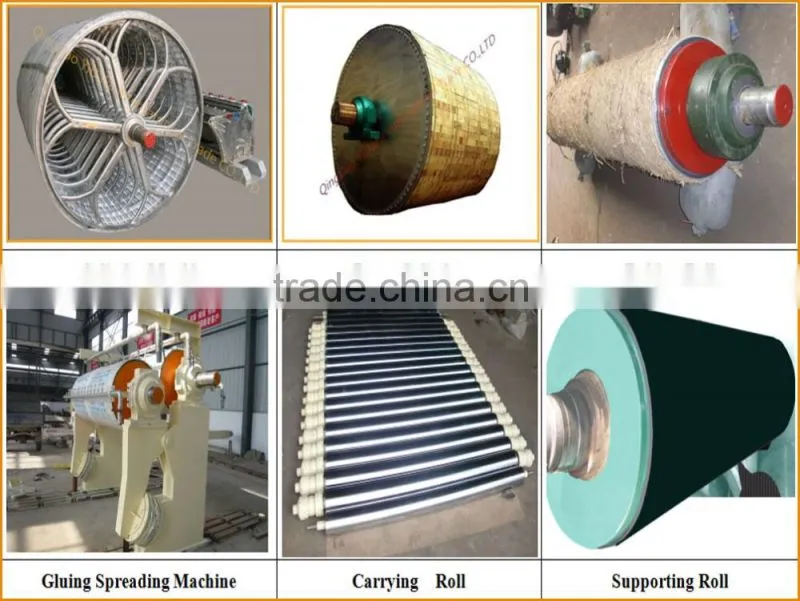

1-Paper machine parts workshops:

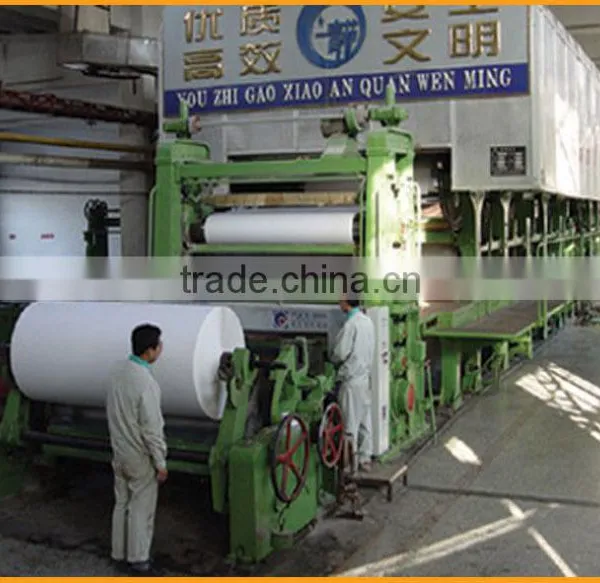

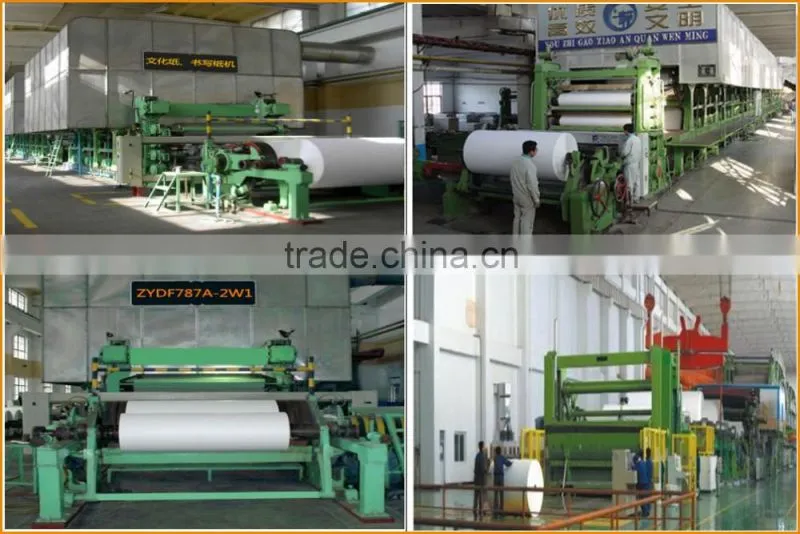

2-Paper production workshops:
· We have different paper machine model from 787mm,1092mm.1575mm,1760mm,1880mm, 2100mm, 2400mm,2800mm,3200mm and so on.
· Our company have professional engineer and technician team with rich experience in paper production.
· our company persist in the slogan “Quality is the best and Customer’s satisfaction is our standing pursuit”

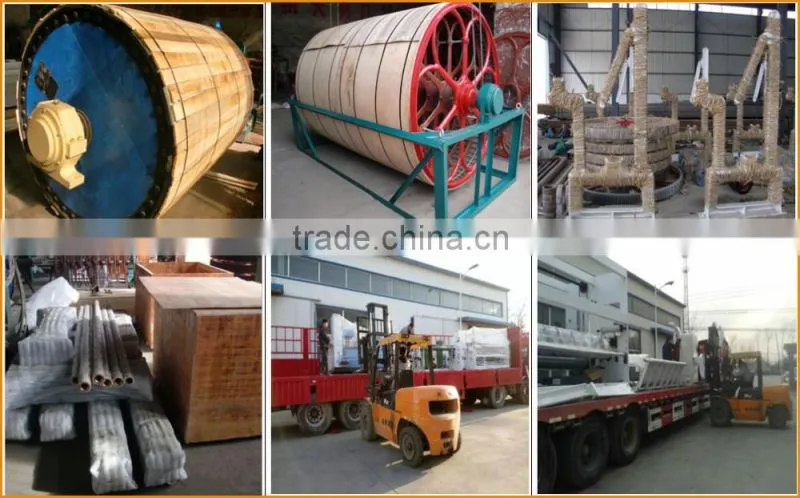

Packaging:
· Covered machine parts with plastic films.
· Wrapped with the fumigated plywood pallet.
· Wrapped with wooden board around and nailed on.
Shipments and delivery:
· sea delivery from Qingdao ports or other ports.
·delivery time is decided by your required machines or machine parts. But we try our best meet your requirements.
Pre-sale Service
1-We could recommend customers suitable machine according to clients requirements and supply professional technical consultation services.
2-Our engineers could provide the most suitable scheme and equipment for our clients.
3-Our company provide all-around turn-key projects as follows: production design,equipment manufacture,installation and adjustment, technical
training for workers,conforming product.
4-Complete sets machine will be pre- installed and tested to confirm that the machine are in good condition before delivery.
5- Guarantee Best quality and In time delivery.
After sale Service
1-We could arrange technicians to install and test the machine untill sucessfully run, help to train your workers and give advise about your building project.
2-One year quality varranty time after the machine run well.
3-We Supply you spare parts at cost price for a long time.
Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.
1. What should you provide before sending me inquiry?
1) What kind of finished paper you want to produce?(very important)
2)How many tons do you want to produce per day ?(very important)
3)What kind of raw materials you use to make paper pulp? (very important)
(such as waste paper,old carton box,wood,wheat straw,rice stalk,wood chips,reed,bagasse, cotton,bamboo and so on )
4) What's the output paper weight you require?
5)What's the output paper width of jumbo roll you require?
Remarks:the first 3 are very important and we could provide you detail information after get your answers.
2 Why we choose your company, what could you do for me?
1)We have huge engineer and technical team about paper manufacturing with more than 15 years stable production experience.
2)We use the best steel materials to guarantee the product quality
3)We expand business with you in a health way and always speak with facts and quality.We will always give you heart to heart service.
3. Could your engineer teach and train our worker and stay in our factory for long time?
Yes, we have huge engineer installation team,which they can train and teach your worker to operate paper machine,but you should be responsible for salary, two-way ticket,transportation,accommodation,meals during their stay.
