Product Details
| Condition | New | Type | Other, paper making machine | |
| Computerized | Yes | Place of Origin | Shandong, China | |
| Brand Name | YDF | Model Number | YDF-HQL-1100 | |
| Voltage | 380V 50Hz | Power(W) | 23kw | |
| Dimension(L*W*H) | 14000*2000*2000mm | Weight | 8500kg, 8500kg | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wooden case/wooden pallet
Product Description
Product Application

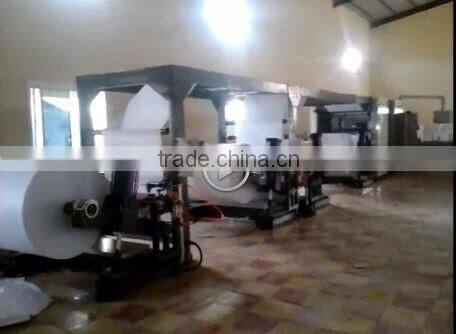

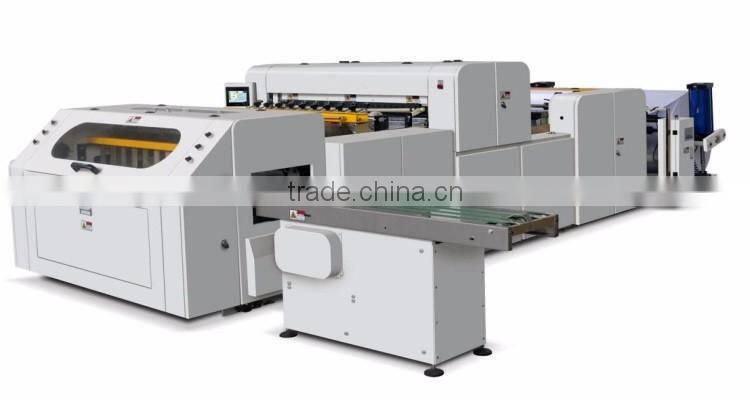

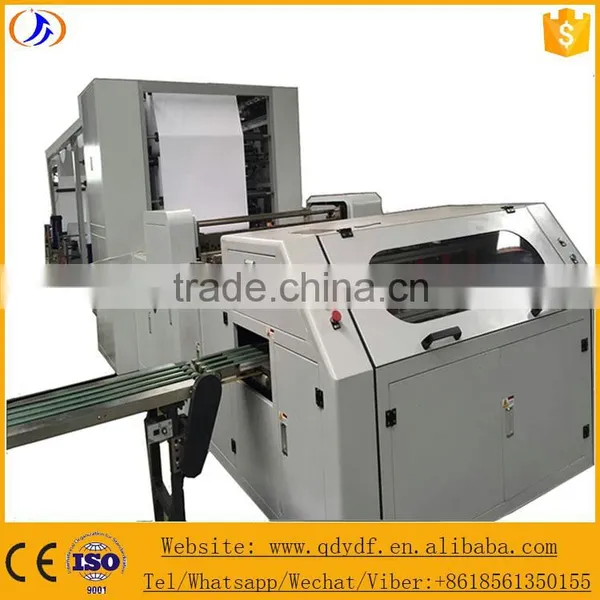

YDF-HQL-1100 model Automatic counting,stop by alarm A4 Copy Paper Making Machine with 5 slitting line for 4 unwinding roll is suitable for a lot of paper, film, paper&film laminated etc and is best for jumbo roll Cutting&Packaging machine. YDF-HQL-1100 model Automatic counting,stop by alarm A4 Copy Paper Making Machine with 5 slitting line for 4 unwinding roll is top quality Cutting & Packaging machine in china.
Main Features
1).Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control , color code track etc function.
2).Feeding roll use auto loading system(150#cylinder), air shaft use 3#(76mm paper tube core)3).Machine rack use 10mm thick cast iron steel plate with steel structure. Bottom of cutting knife use heavy casting structure, Guide rollers using static balanced aluminum alloy guide roller.
4).Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.
5).Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat

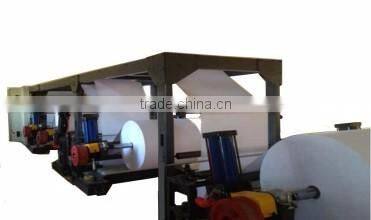

Unwinding Unit：
1).Materials: Machinery rock use steel plate and casting steel structure.
3).Unwinding shaft use air shaft type
4).Unwinding use photocell control edge position control system(EPC)
5).Adopt advanced magnetic-powder brake and hydraulic system,guarantee the paper move stablely,avoiding paper wrinkle or break.
1)Strcuture style:active traction and passive press fasten style
4)Press fasten style: controlled by pneumatic
5)Transmission guide roller: aluminum guide roller
6)Traction motor adopts servo motor ,Drive in-phase fix the length
7)Float roller up and down tension use pneumatic traction way

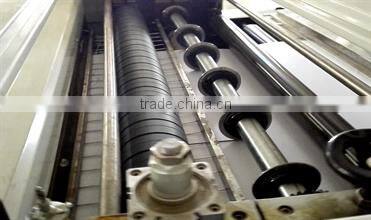

Slitting unit
1)Slitting way: Bottom blade initiative, drive upper balde to slit.
2) Slitting precision : ±0.2mm
3)Adopts round cutters,make sure accurate cut,flat cut,higher precision and high efficien

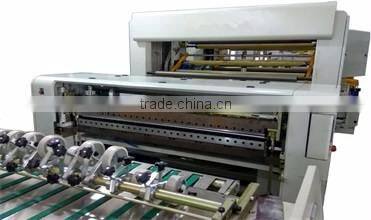

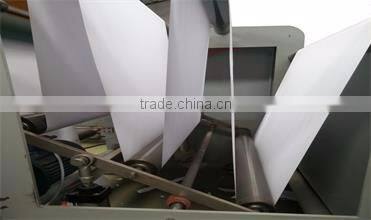

Crosscutting unit
1)Cutting way: bottom cutter fixed, Top cutter make cutting
2)Bottom cutter use heavy casting structure
3)Drive use synchronous wheel drive structure
Material conveying and collecting unit:
1).Drive by synchronous belt and synchronous wheel transmission mechanism.
2).Fixed length control by servo motor
3）back plate by automatic pneumatic control
4）frequency conversion motor
Electrical control unit:
1.machine control by PLC project control system( PLC use Japan,touch screen use Taiwan
2.Use delixi brand electric components and France Schneider switch
Pre-Sales Service
* We have professional team and could recommend customers suitable machine according to clients requirements and supply professional technical consultation services.
* Our engineers could provide the most suitable scheme and equipment for our clients.* Complete sets machine will be pre- installed and tested to confirm that the machine are in good condition before delivery.
* Guarantee Best quality and In time delivery.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year quality varranty time after the machine run well.
* We Supply you spare parts at cost price for a long time.
Our Company
Qingdao International Trade CO., LTD, which is located in Free Trade Area, Huangdao, Shandong, specializes in developing and producing various machinery. We have professional team and mature production experience for more than 20 years. Taking high technology as guide, the improvement of management level and employee quality as center, the expansion of the production scale and the upgrade of the products as aim, our company will strictly focus on the product quality and put every series of products on the international market with outstanding performance and preeminent quality. Our company persist in the slogan “Customer’s satisfaction is our standing pursuit”.

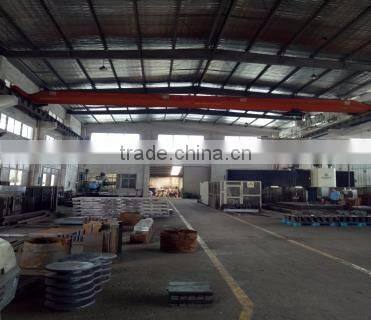

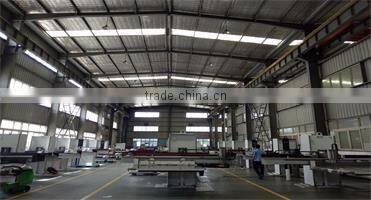

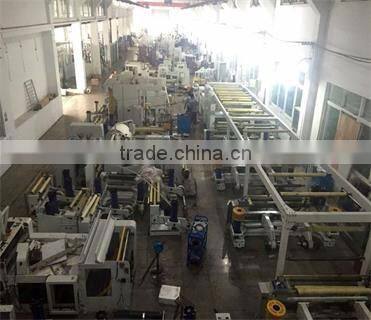

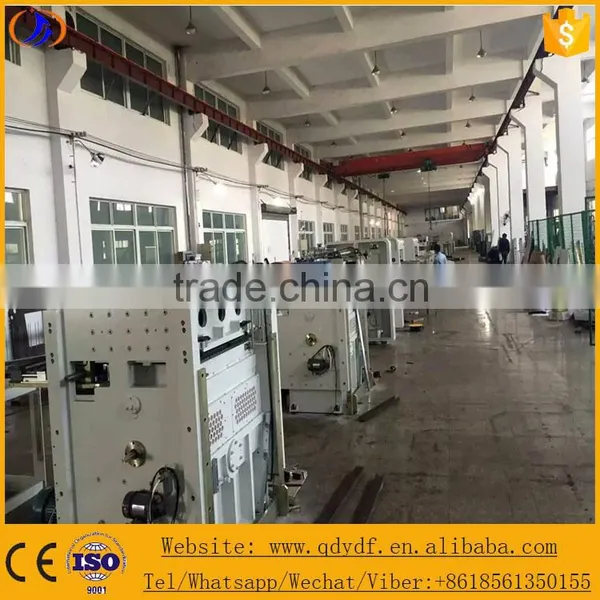

factory workshop
Our factory is a highly professional and experienced manufacturer of Paper Machine in China. We manufacture and supply a wide range to customers across the world and enjoys a good reputation both home and abroad.
Our products mainly include:
Paper making machine
Paper cutting machine
Paper Tube Machine
Paper Core Cutting Machine
Slitting rewinding Machine
We have many years experiences in machine export.

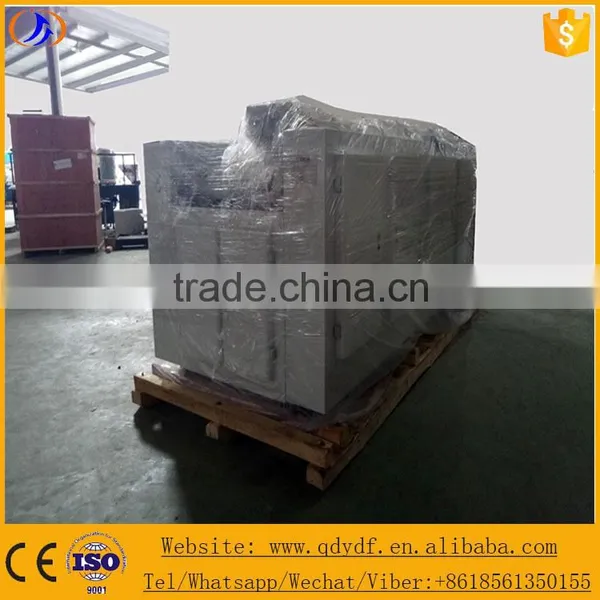

According the weight of our machine,we desgin defferent package to insure the transportation safety.
We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
You will get best price in 12 hours.
Company Profile
Qingdao YiDaFa International Trade CO.,LTD is located in Free Trade Zone,Qingdao city, Shandong Province,China.Our company registered capital of 5 million yuan,has rich paper machine design and experience, and is the collection of paper making machinery research, design, manufacture, installation ,commissioning and service, becoming one of the multi-functional enterprise.Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables. Our company strictly focus on the principle of "science and technology enterprise, best quality, supreme credit, business integrity " , providing high-quality products, preferential price with the best service and credibility to satisfy every customer's requirement. Welcome all customers to contact us freely.We will work together to explore and establish a long-term, stable relationship, creating a brilliant future.
