[ DATAN ] GS Series Cnc Gantry Milling Machine

[ DATAN ] GS Series Cnc Gantry Milling Machine thumbnail-1
[ DATAN ] GS Series Cnc Gantry Milling Machine thumbnail-2
[ DATAN ] GS Series Cnc Gantry Milling Machine thumbnail-3
[ DATAN ] GS Series Cnc Gantry Milling Machine thumbnail-4

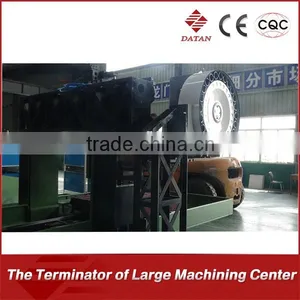

[ DATAN ] GS Series Cnc Gantry Milling Machine thumbnail-5
[ DATAN ] GS Series Cnc Gantry Milling Machine thumbnail-6
[ DATAN ] GS Series Cnc Gantry Milling Machine photo-1
[ DATAN ] GS Series Cnc Gantry Milling Machine photo-2
[ DATAN ] GS Series Cnc Gantry Milling Machine photo-3
[ DATAN ] GS Series Cnc Gantry Milling Machine photo-4

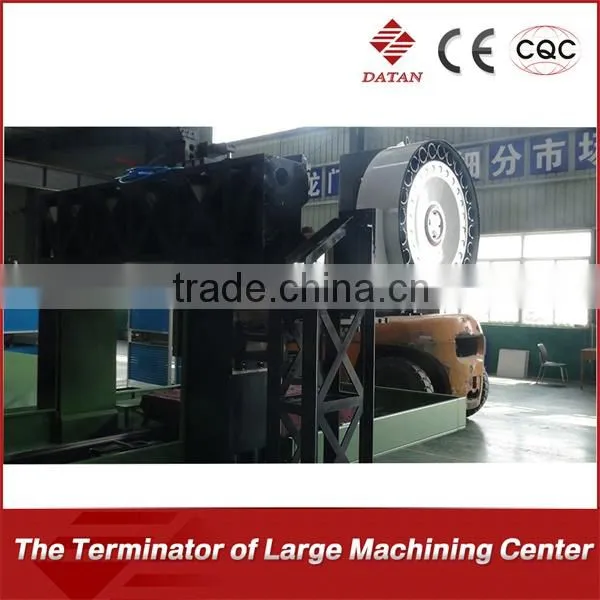

[ DATAN ] GS Series Cnc Gantry Milling Machine photo-5
[ DATAN ] GS Series Cnc Gantry Milling Machine photo-6
US$ 90,000 - 135,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Hangzhou Datian CNC Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
Place of Origin Zhejiang, China
Brand Name DATAN
Model Number GS
Voltage 380V
Power(W) 18.5kw
Dimension(L*W*H) 4500x3200x4000 mm
Weight 14~30 T
Certification ISO CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
[ DATAN ] GS series cnc gantry milling machine



GS cnc machining center is large gantry and high rigidity of DATAN

1. Structure

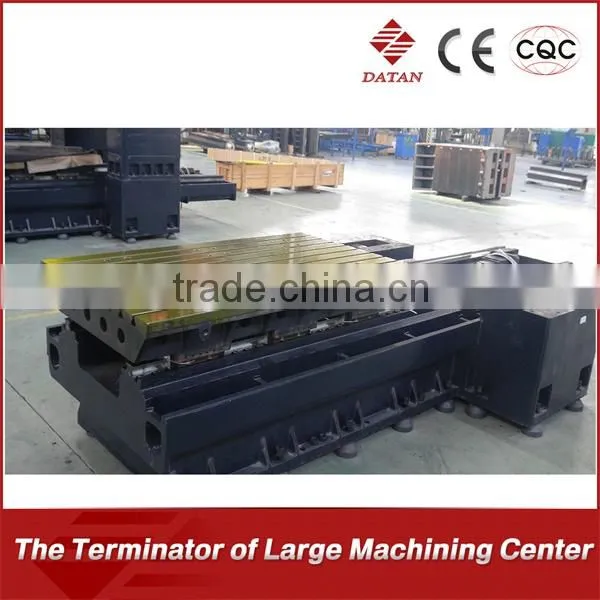

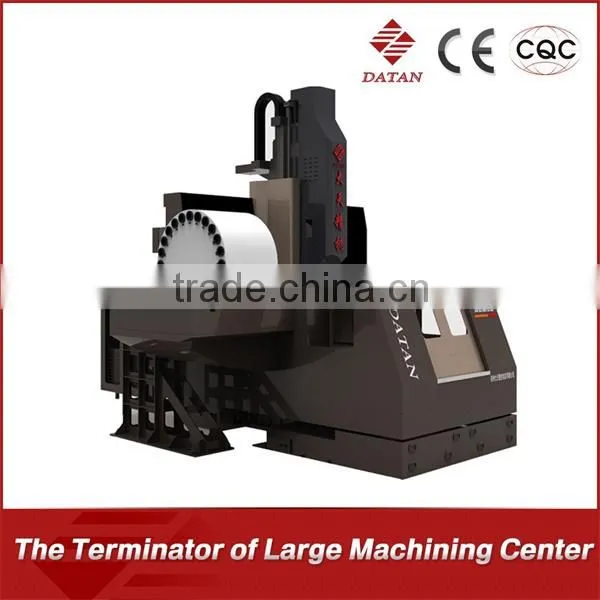

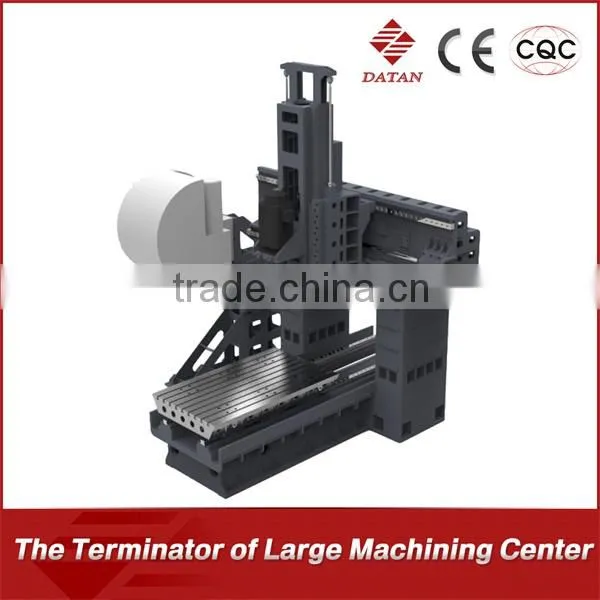

A gantry frame structure is adopted with cast iron bodies. The gantry frame consists of bed, movable table, left & right columns, top beam, cross rail, horizontal saddle and milling head. There are three feeding axes, ie. X axis for travel of working table, Y axis for horizontal travel of saddle and Z axis for vertical travel of ram. Simultaneous control of each two or three axes can be achieved.



2. Standard accessories

Hand-held operating unit, indicating lamp, automatic lubrication system, hydraulic system,water gun,air conditioner for electrics, automatic chip conveyor & chip collection trolley, cnc controller etc.



3. Wide Range of Applications:

  1. Basing on its super rigid & stable structure, big machining capacities, efficient cutting yield,heavy table load capacity, it has a wide application in,
  2. Engineering & general machining
  3. Motor,pump,valve & bearing
  4. Turbine, wind mill, power generator,etc





[ DATAN ] GS series cnc gantry milling machine

DATAN Specification
Model No. GS1215 GS1220 GS1520 GS1525 GS1822 GS1830
X axis travel mm 1500 2000 1800 2400 2200 3000
Y axis travel mm 1200 1500 1800
Z axis travel mm 800 1000
Worktable size mm 1500x1000 2000x1000 2000x1300 2500x1300 2200x1500 3000x1500
T slot size mm 18x9x90 22x10x100 22x13x100
Max load on worktable kg 3500 4000 4500 5000 6000
Spindle taper   7/24 Taper No.50
Spindle speed r/min ZF double gearbox(1:1,1:4)40-6000
Spindle power Kw 15/18.5
X/Y rapid travel mm 20  15  12
Z axis rapid travel mm 15
Cutting feed rate mm/min 10-10000
Toolmagazine number Pcs Arm type 24
Machine size m

4.5×3.2

×4.0

5.5×3.2

×4.0

5.0×3.8

×4.3

6.0 ×3.8

×4.3

5.8×4.0

×4.6

7.5×4.0

×4.6
Machine weight T 14 17 21  25 27 31
Control system   FANUC / SIEMENS / SYNTEC / GSK



Main parts supplier ntroller: Fanuc oi MD from Japan
2.spindle motor: Fanuc from Japan
3. 3 axis servo motor: Fanuc ac servo motor from Japan
4. spindle bearing: NSK(P4 grade) from Japan
5. x/y/z axis bearing: NSK(P4 grade) from Japan
6.x/y/z ball screw: HIWIN(C3 grade) from China Taiwan
7.spindle unit: KENTURN from China Taiwan
8. A.T.C system: from China Taiwan
9.pneumatic cylinder system: from China Taiwan
10.lubricator: from Japan
11.heat exchanger: from China Taiwan
12.electrical components: from China Taiwan



GS1215 cnc gantry machining center features:

1) Strong massive machine is absolutely an essential part for gantry type machining center .Made of qualified Meehanite cast iron GC-276 and dealt with tempering treatment ,DATAN machines have high rigidity and admirable stability.



2). Structure size with finite element analysis(FEA) brings static rigidity and shock resistance of machine to a full play ,preventing the appearance of cutting resonance ,thus enhancing processing accuracy and prolonging tool service life.



Product Description

[ DATAN ] GS series cnc gantry milling machine



Finished Products

[ DATAN ] GS series cnc gantry milling machine





Related Products

[ DATAN ] GS series cnc gantry milling machine [ DATAN ] GS series cnc gantry milling machine [ DATAN ] GS series cnc gantry milling machine



DATAN Information

[ DATAN ] GS series cnc gantry milling machine

[ DATAN ] GS series cnc gantry milling machine



FAQ

  1. Confirm the purchase

  1. FOB Shanghai / ningbo or CIF, LCL or FCL shipping.
  2. Payment terms: T/T or L/C or other ways contact us.
  3. Package: Plywood case.
  4. Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.

2. Check the acceptance
Receive machine,please check:

  1. Examine the content of the packing list,the product quantity to both consistent,and accessories;
  2. Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.

If happens above declare,please contact us immediately.



3. Customer service

  1. Warranty period: We can send you the machines' components for free in the first one year.
  2. After-sell service: We can supply site commissioning and training abroad for the buyer, but the buyer needs to pay the relevant expense.
  3. The buyer will pay for:Air tickets, Food, board & lodging, and local transportation in buyer’s country.
