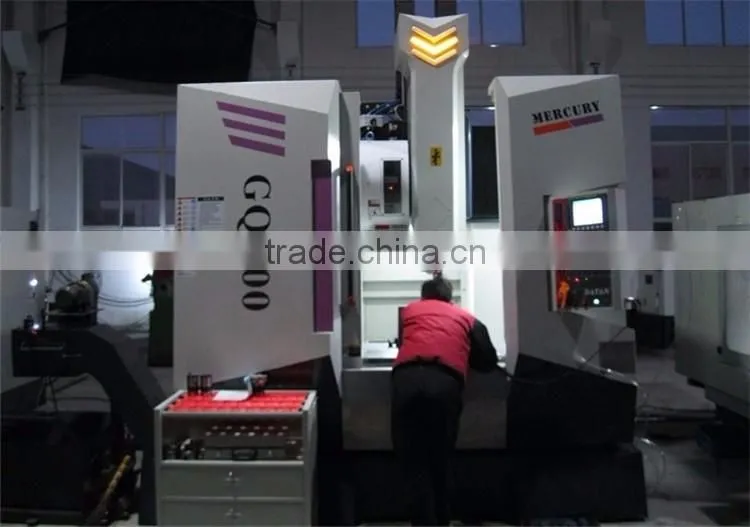

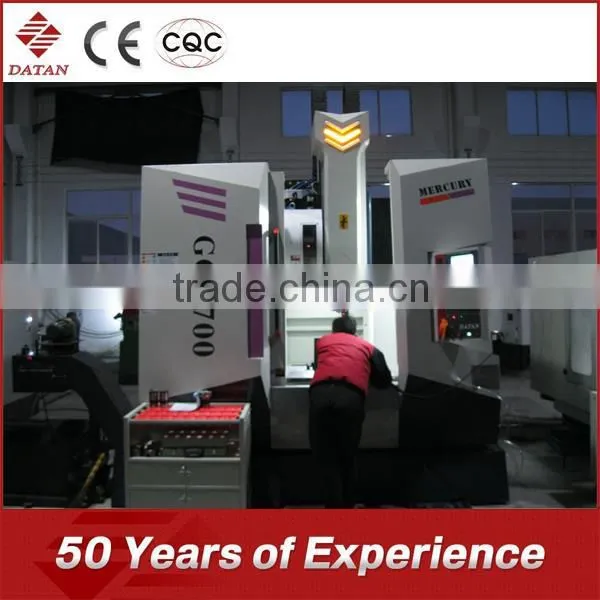

cnc gantry machining center

GQ series High precision and rigidity cnc gantry gantry machining center

1. An upgraded version of medium-sized vertical gantry machining center.
2. High rigidity as high-speed milling machine.
3. Can be full-stroke high-precision machining.
4. Processing efficiency is increased by 30% comparing to the same specification of vertical gantry machining center.
5. The flatness of the milled plane is enhanced by 10%.

PRODUCT DESRIPTION
Model No.
GQ600
GQ700
GQ800
GQ1300
GQ1500



Capacity
X axis travel



mm
1000
1100
1300
1300
1600
Y axis travel
600
700
800
1300
1500
Z axis travel
500
600
Spindel nose to worktable suface
100-600
150-750


Worktanble
Worktable size(L*W)
mm
1000x600
1100x700
1300x800
1300x1300
1500x1500
Max load on the table
kg
500
900
1000
1500
1800
T-slot size
mm
5*18*120
5*18*140
9*18*90
13*22*100


Spindle
Spindle speed
rpm
100-10000
160-8000
Spindle taper/spindle shank

7/24 Taper NO.40
7/24 Taper NO.50
Max spindle inner diameter
mm
70
70
80
100
100
Spindle motor
kw
7.5/11
11/15

Feed rate
X.Y.Z rapid traverse
m/min
36/36/24
20/20/15
Max cutting feed rate
mm/min
10-10000


A.T.C
Tool storage capacity
pc
Arm type24
Max tool diameter
mm
150(80)
Max tool length
mm
250
350
Tool change time(T-T)
sec
4.5

Accuracy
Positioning accuracy
mm
0.025
Repeatability positioning accuracy
mm
0.015




Machine size
Machine height
mm
4300
4600
Power requirement
KVA
25
30
Space requirement(L*W)
mm
3000*2200
3200*2400
3400*2600
4000*4500
4500*4600
Net machine weight
T
6
8
9
13
15.5
X.Y.Z axis drive motor
kw
7.5(11)/3.5/3.5
Contorl system
FANUC-0i mate MD
cnc gantry machining center
Packing & Delivery

The Best Feeding System

X, Y axis adopt heavy duty linear roller guides, its low coefficient of friction improves its drive positioning and dynamic accuracy.


GQ series, the small gantry adopts high rigidity rectangle ram slide guide-way, its rigidity is improved by twice. This kind of gantry is able to withstand the axial and radial cutting forces, the vibration force, which makes the cutting faster and more efficient.

With Integrated Combination of Beams and Columns

The previous gantry of six pieces is optimized for five ones. This can avoid assembly errors while improving the overall stability.

Wholly Supported Workbench Leads to More Stable Machining Accuracy.

The workbench,100% set on the supporting surface, can ensure uniform coefficient of friction during the movement and help achieve high stability, long service life as well as heavy cutting.

The machine is suitable for processing mold, round and square parts of boxes, its Y direction space use is more efficient. Because the workbench is set through the column, its width and Y direction path are increased by 25%.

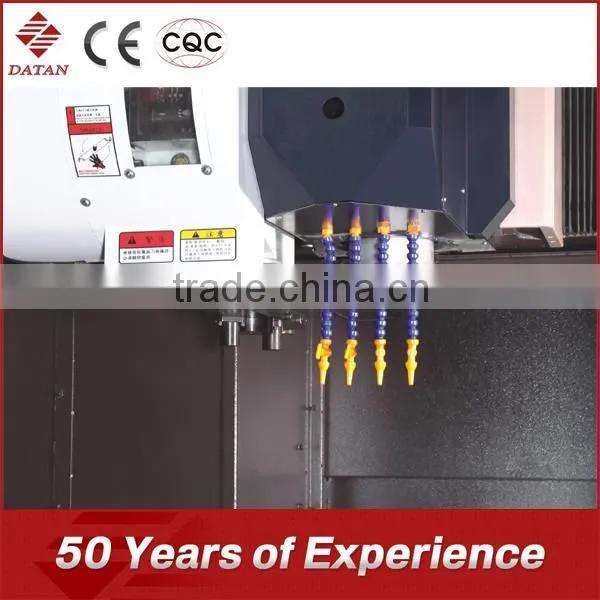

High rigidity transmission parts

X/Y axis adopts roller linear guideway, comparing with the same specification VMC, its rigidity is improved by 20%. Roller screw and another moving parts are consistent with cnc gantry machine design standard.

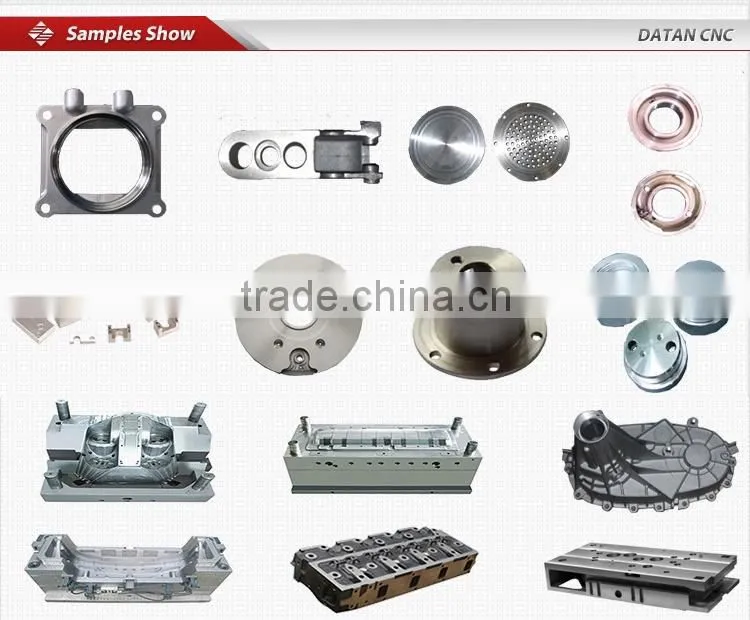

FINISHED PRODUCTS
RELATED PRODUCTS
DATAN INFORMATION
FAQ

1. Sign the contract

After the contract is signed, you shall give 30% payment as deposit, then the contract comes into effect. Our sales manager and engineers will follow up your order.

2. Arrange production

Mass production is managed when sales manager receive your contract by fax.

CNC milling machine is finished 15 days.

Vertical CNC gantry machining center 25 days,

Gantry gantry machining center within 45 days.

Time will be delayed if need special accessories.

3. The delivery

According to the industry criteria, 70% payment should be paid after mass production is finished. Besides, we recommend you to choose wooden box packing to avoid and damage during the delivery.
