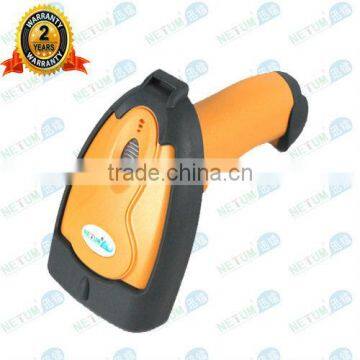

NT-8099 2d Barcode Reader

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Netum
Model Number	NT-8099

Product Description

Specifications

1. apply CMOS
2. support all 1D codes and major 2D codes such as PDF,MaxiCode,QR Code
3. anti-knock

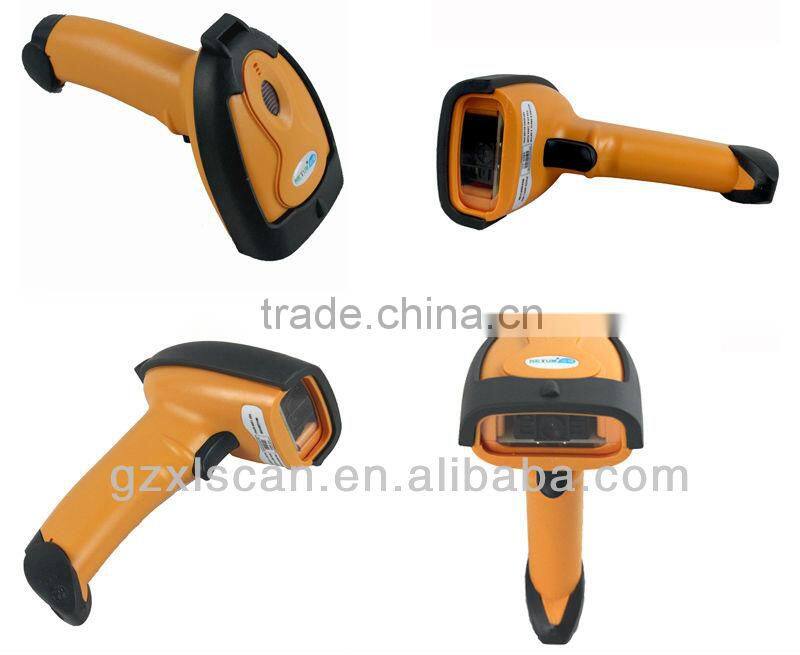

NT-8099 2d Barcode Reader

Features:

1. New design concept,make operation more comfortable.

2. Applying CMOS image technology, easy to scan.

3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417.

4. Best shape design, anti-knock and quakeproof.

5. Mulitple interface, support USB,RS232 port.

Parameters:

Physical Characteristics

1.1

Dimensions:

51mm x 30.61mm(width) x 21mm(height)

1.2

Weight:

1.3

Voltage and Current:

5 +/-10%VDC @ 350 mA

Performance Characteristics

2.1

Light Source:

Aiming: 528 nm LED; illumination: 630 nm LED

2.2

Field of View:

34° V x 46° H(Vertical x Horizontal)

2.3

Roll / Pitch / Yaw:

360°, ±65°, ±60°

2.4

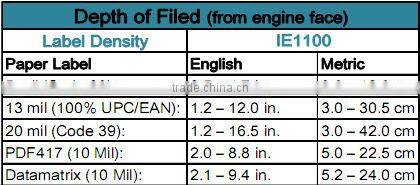

Scan Performance:

Symbology Decode Capability

3.1

1-D:

UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

3.2

PDF417 (and Variants):

PDF417, microPDF417 and composite codes

3.3

Postal:

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

3.4

2-D:

MaxiCode, DataMatrix (ECC 200), and QR Code

3.5

Print Contrast:

25% minimum reflectance

3.6

Motion Tolerances:

Horizontal velocity: 5 in. (12.7 cm) per second

3.7

Interfaces Supported:

IE1100: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces.

Imaging Characteristics

4.1

Image (Pixels):

0.35 Megapixel 752 pixels H x 480 pixels V

4.2

Graphics Format Support:

Images can be exported as Bitmap, Jpeg, and Tiff

4.3

Image Transfer Speed:

USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate

4.4

Image Transfer Time:

Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb

User Environment

5.1

Operating Temperature:

32° to 122° F / 0° to 50° C

5.2

Storage Temperature:

-40° to 158° F / -40° to 70° C

5.3

Humidity:

5% to 95%, non-condensing

5.4

Drop/Shock Specifications:

Withstands 2000g to concrete

5.5

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.
