Home > Office Supplies > Scanner > NT-8099 PDF417 Code & QR Code Scanner, 2D Scanner With CMOS Carmera Scan
NT-8099 PDF417 Code & QR Code Scanner, 2D Scanner With CMOS Carmera Scan
US$ 1 - 150
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NT-8099 Factory Price High Scanning Speed id ScannerUS$ 1 - 160MOQ: 1 Piece -
NT-8099 High Performance Good Quality Pos qr Code ScannerUS$ 1 - 160MOQ: 1 Piece
-
NT-8099 qr Barcode Reader Usb With Factory PriceUS$ 1 - 160MOQ: 1 Piece
-
NT-8099 PDF417 and QR Code Scanner Usb 2D Scanner Image Code ScannerUS$ 145 - 150MOQ: 22 Pieces
-
NT-8099 High Quality 2D Barcode Scanner QR Code Scanner SupplierUS$ 1 - 150MOQ: 10 Pieces
Products Status
Stock
Type
Barcode Scanner
Scan Element Type
CMOS
Colour Depth
32 Bit
Interface Type
USB, COM, PS/2, Other, USB, COM, PS/2, RS232
Max Paper Size
A4
Optical Resolution
0.1mm
Scan Speed
200times/sec
Brand Name
NETUM
Model Number
NT-8099 QR scanner
Place of Origin
Guangdong, China
Specifications
2D scanner barcode1. CMOS Tech Camera scan
2. Support Graphics Format
3. 1D&2D all are competible
4. High resolution
Company Information

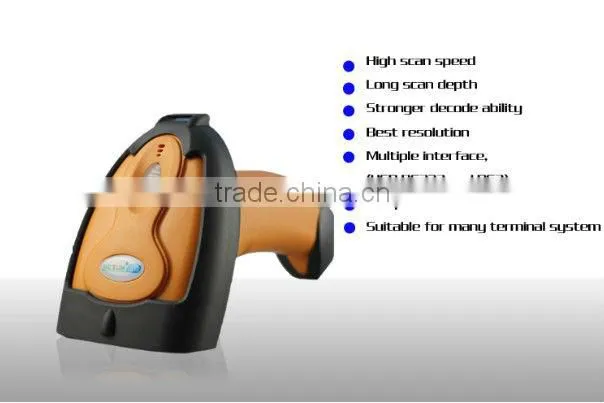

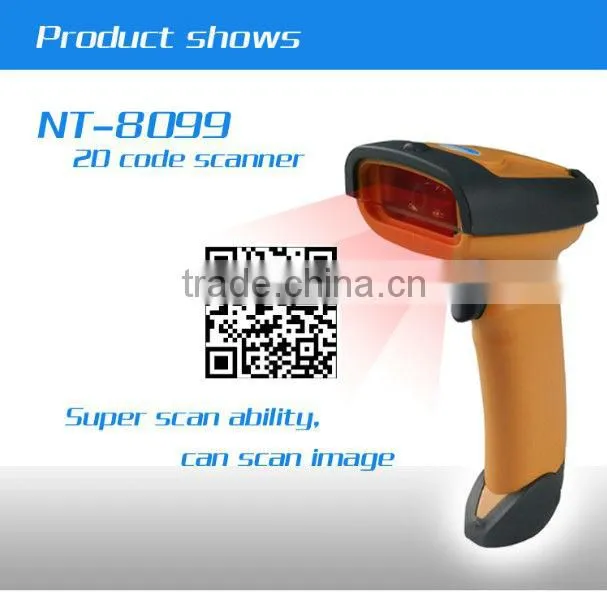

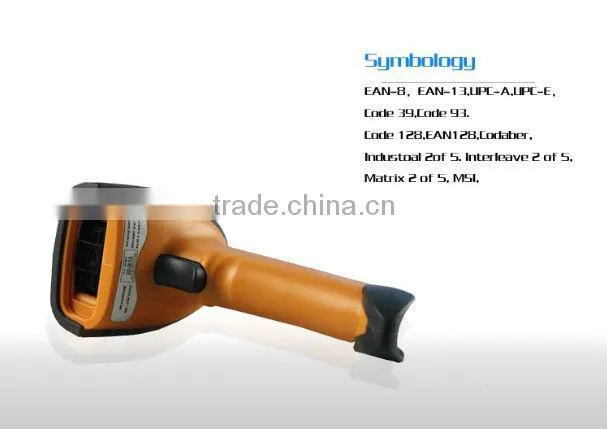

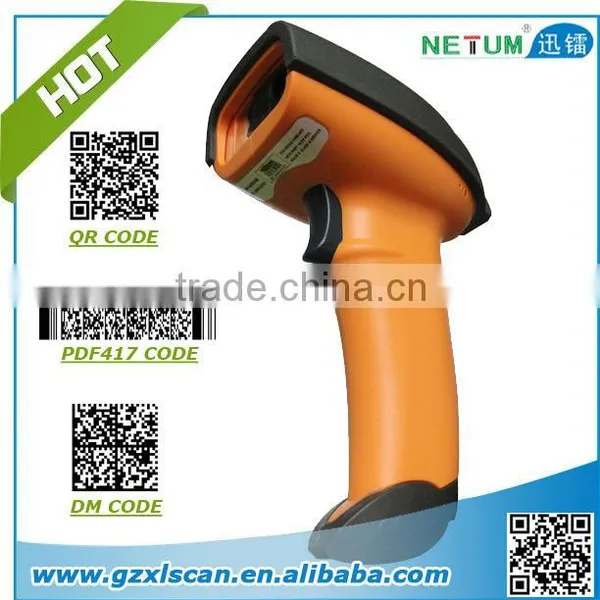

NT-8099 PDF417 code & QR code scanner, 2D scanner with CMOS carmera scan
Features:
1. New design concept,make operation more comfortable.
2. Applying CMOS image technology, easy to scan.
3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417.
4. Best shape design, anti-knock and quakeproof.
5. Mulitple interface, support USB,RS232 port.

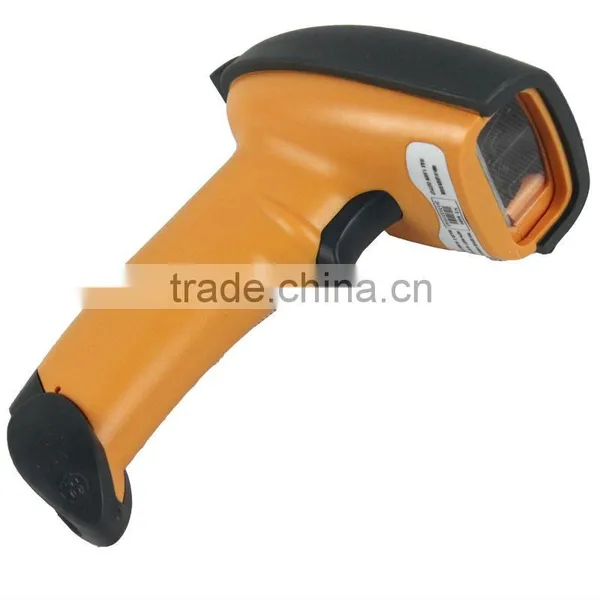

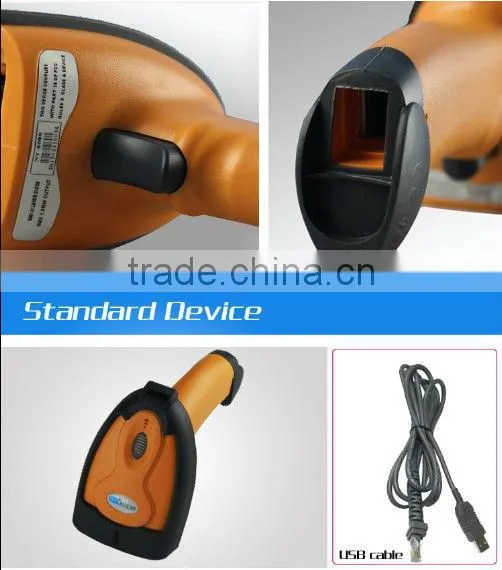

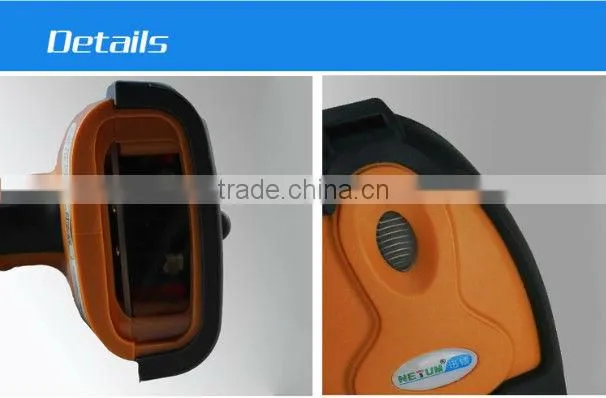

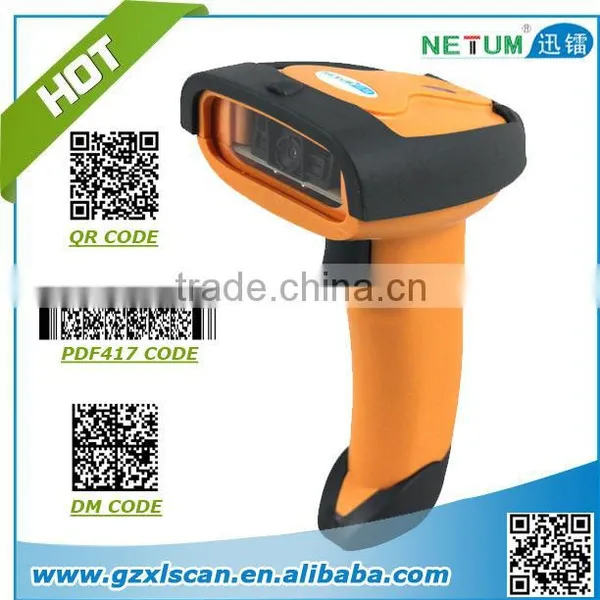

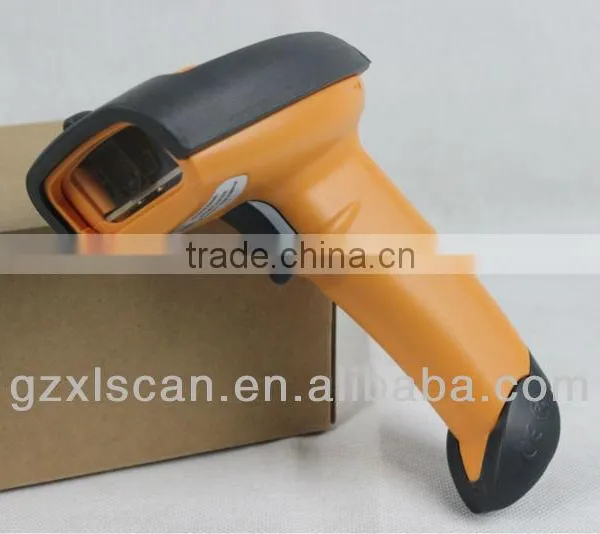

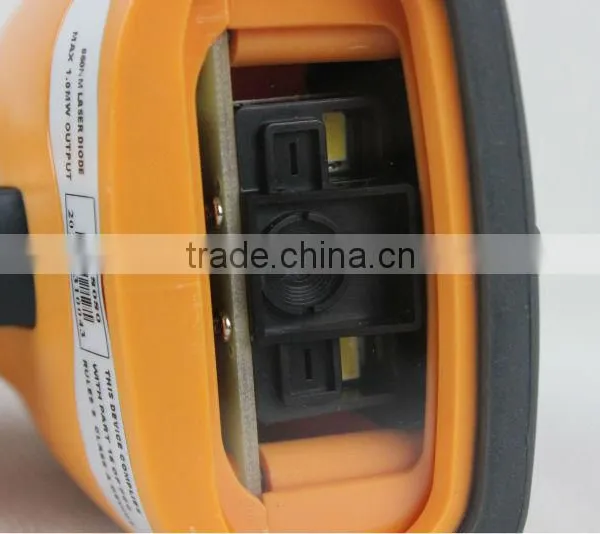

Related pictures:
Parameters:
| 1 | Physical Characteristics | ||
| 1.1 | Dimensions: | 51mm x 30.61mm(width) x 21mm(height) | |
| 1.2 | Weight: | ||
| 1.3 | Voltage and Current: | 5 +/-10%VDC @ 350 mA | |
| 1.4 | Item name | QR barcode scanner | |
| 2 | Performance Characteristics | ||
| 2.1 | Light Source: | Aiming: 528 nm LED; illumination: 630 nm LED | |
| 2.2 | Field of View: | 34° V x 46° H(Vertical x Horizontal) | |
| 2.3 | Roll / Pitch / Yaw: | 360°, ±65°, ±60° | |
| 2.4 | Scan Performance: |
|
|
| 3 | Symbology Decode Capability | ||
| 3.1 | 1-D: | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 | |
| 3.2 | PDF417 (and Variants): | PDF417, microPDF417 and composite codes | |
| 3.3 | Postal: | U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch | |
| 3.4 | 2-D: | MaxiCode, DataMatrix (ECC 200), and QR barcode scanner | |
| 3.5 | Print Contrast: | 25% minimum reflectance | |
| 3.6 | Motion Tolerances: | Horizontal velocity: 5 in. (12.7 cm) per second | |
| 3.7 | Interfaces Supported: | IE1100: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces. | |
| 4 | Imaging Characteristics | ||
| 4.1 | Image (Pixels): | 0.35 Megapixel 752 pixels H x 480 pixels V | |
| 4.2 | Graphics Format Support: | Images can be exported as Bitmap, Jpeg, and Tiff | |
| 4.3 | Image Transfer Speed: | USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate | |
| 4.4 | Image Transfer Time: | Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb | |
| 5 | User Environment | ||
| 5.1 | Operating Temperature: | 32° to 122° F / 0° to 50° C | |
| 5.2 | Storage Temperature: | -40° to 158° F / -40° to 70° C | |
| 5.3 | Humidity: | 5% to 95%, non-condensing | |
| 5.4 | Drop/Shock Specifications: | Withstands 2000g to concrete | |
| 5.5 | Ambient Light Immunity: | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. | |
Packaging & Shipping
All goods will be packing by Neutral Seaworthdy Carton packing:
- With Cradle:
- Inner Box: 1 pcs/box; 210 mm x 130mm x 105mm; 640g
Carton: 50 pcs/ctn; 880mm x 450mm x 420mm; N.W.: 32kg; G.W.: 33kg
- Without cradle
- Inner Box: 1 pcs/box; 185mm x 110mm x 90mm; 365g
Carton: 50 pcs/ctn; 600mm x 450mm x 420mm; N.W.: 18kg; G.W.: 19kg
70 pcs/ctn; 880mm x 450mm x 420mm; N.W.: 25kg; G.W.: 26kg
