Help CenterNT-8099 PDA Barcode Laser Scanner
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Barcode Scanner, 2D barcode scanner
Scan Element Type:
CMOS
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NT-8099 Supermarket Laser Barcode ScannerNegotiableMOQ: 10 Sets -
NT-8099 USB Acan Barcode ScannerNegotiableMOQ: 10 Sets
-
NT-8099 Stable Performance LS2208 Barcode ScannerNegotiableMOQ: 10 Sets
-
NT-8099 Best Selling Industrial Barcode ScannerNegotiableMOQ: 10 Sets
-
NT-8099 Mini Flatbed Barcode ScannerNegotiableMOQ: 10 Sets
Products Status
Stock
Type
Other, Barcode Scanner, 2D barcode scanner
Scan Element Type
CMOS
Colour Depth
32 Bit
Interface Type
USB, COM, PS/2
Optical Resolution
3 mil
Scan Speed
200 times/sec
Brand Name
Netum, Netum
Model Number
NT-8099
Place of Origin
Guangdong, China
Specifications
PDA Barcode Laser Scanner1.Read 2D codes
2.Multiple decode ability
3.USB,PS/2, RS232 interface
4.CE,FCC-B
NT-8099 PDA Barcode Laser Scanner
Advantages:
1. New design concept, make operating more comfortable
2. Using CMOS image technology, easy to scan
3. Multiple decode ability, fast to scan 1D/2D barcode and PDF417
4. Best shape design, anti-knock and quakeproof
5. Multiple interface, support USB,RS232 and COM port.

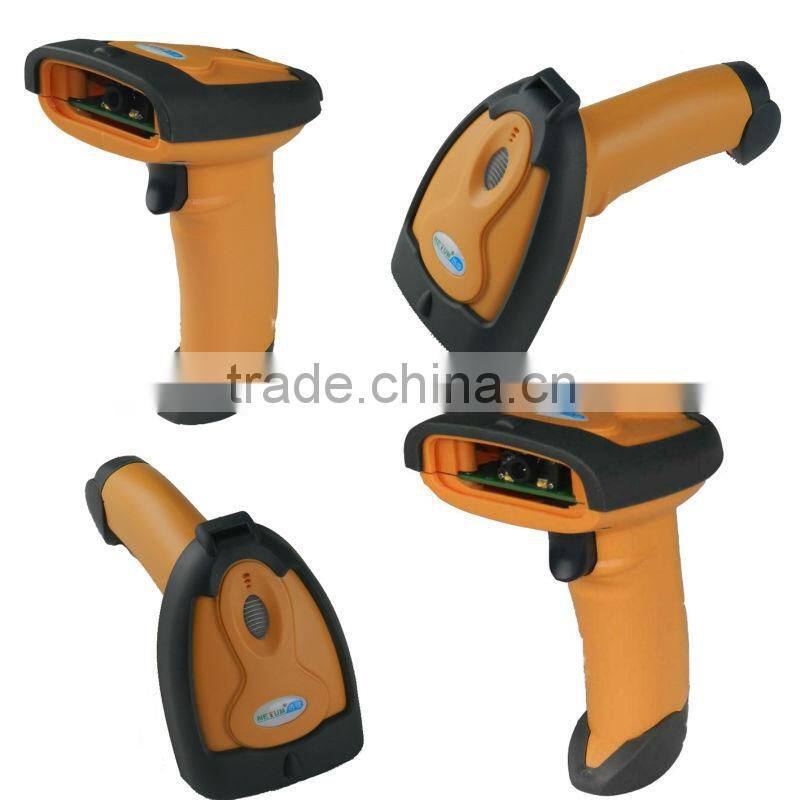

Pictures Of NT-8099 PDA Barcode Laser Scanner
Key Specification
| NT-8099 PDA Barcode Laser Scanner | ||||
| 1 | Physical Characteristics | |||
| 1.1 | Dimensions: | 51mm x 30.61mm(width) x 21mm(height) | ||
| 1.2 | Weight: | |||
| 1.3 | Voltage and Current: | 5 +/-10%VDC @ 350 mA | ||
| 2 | Performance Characteristics | |||
| 2.1 | Light Source: | Aiming: 528 nm LED; illumination: 630 nm LED | ||
| 2.2 | Field of View: | 34° V x 46° H(Vertical x Horizontal) | ||
| 2.3 | Roll / Pitch / Yaw: | 360°, ±65°, ±60° | ||
| 2.4 | Scan Performance: | Depth of Filed (from engine face) | ||
| Label Density | NT-8099 | |||
| Pape Label | English | Metirc | ||
| 5 mil (Code 39) | 3.5-4.7 in. | 9.0-12.0 cm | ||
| 13 mil (100% UPC/EAN) | 1.2-12.0 in. | 3.0-30.5 cm | ||
| 20 mil (Code 39) | 1.2-16.5 in. | 3.0-42.0 cm | ||
| PDF417(10 mil) | 2.0-8.8 in. | 5.0-22.5 cm | ||
| Datamatrix (10 mil) | 2.1-9.4 in. | 5.2-24.0 cm | ||
| 3 | Symbology Decode Capability | |||
| 3.1 | 1-D: | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 | ||
| 3.2 | PDF417 (and Variants): | PDF417, microPDF417 and composite codes | ||
| 3.3 | Postal: | U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch | ||
| 3.4 | 2-D: | MaxiCode, DataMatrix (ECC 200), and QR Code | ||
| 3.5 | Print Contrast: | 25% minimum reflectance | ||
| 3.6 | Motion Tolerances: | Horizontal velocity: 5 in. (12.7 cm) per second | ||
| 3.7 | Interfaces Supported: | IE1100: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces. | ||
| 4 | Imaging Characteristics | |||
| 4.1 | Image (Pixels): | 0.35 Megapixel 752 pixels H x 480 pixels V | ||
| 4.2 | Graphics Format Support: | Images can be exported as Bitmap, Jpeg, and Tiff | ||
| 4.3 | Image Transfer Speed: | USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate | ||
| 4.4 | Image Transfer Time: | Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb | ||
| 5 | User Environment | |||
| 5.1 | Operating Temperature: | 32° to 122° F / 0° to 50° C | ||
| 5.2 | Storage Temperature: | -40° to 158° F / -40° to 70° C | ||
| 5.3 | Humidity: | 5% to 95%, non-condensing | ||
| 5.4 | Drop/Shock Specifications: | Withstands 2000g to concrete | ||
| 5.5 | Ambient Light Immunity: | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. | ||

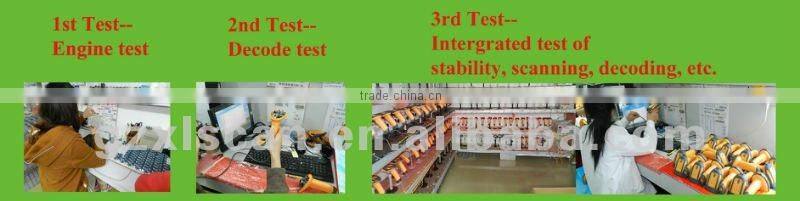

Quality Control:
all products have been individually and strictly tested before shipped

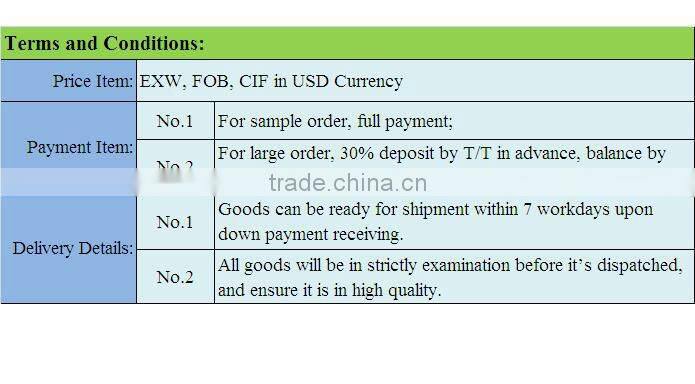

Terms and Conditions:

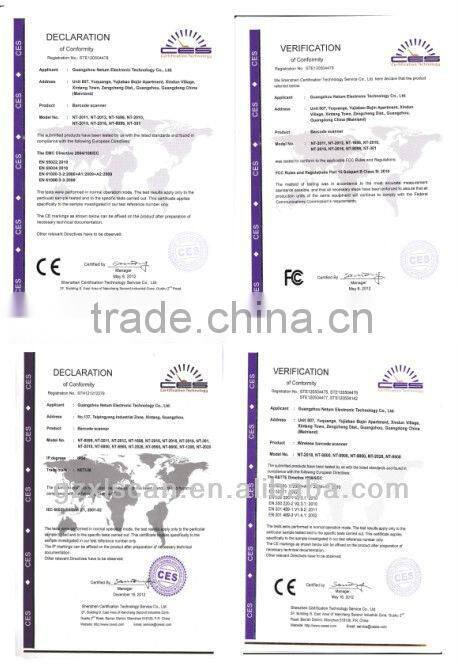

Certificate:
