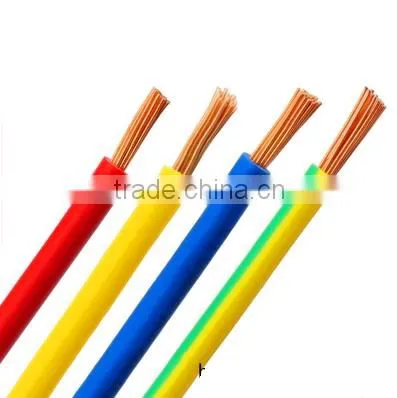

pvc insulated 22 gauge stranded wire
1). Voltage: 300/500V, 450/750V
2). Application:electric equipment, household, and electrical appliance.
3). Specification (Electrical wires series include the following) :
* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire

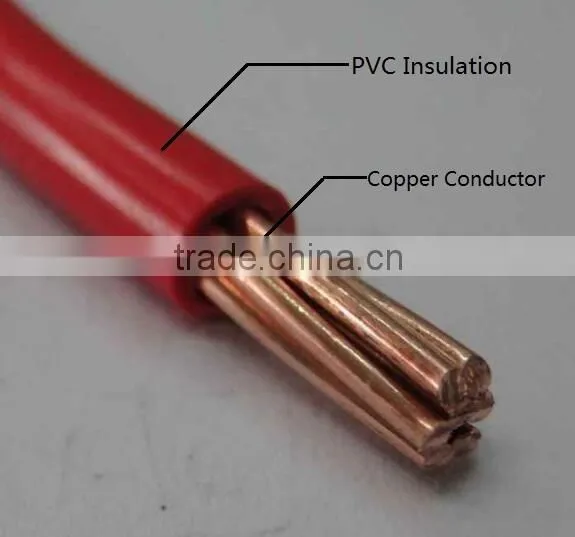

* Stranded copper conductor, PVC insulated single core electrical wire
* Solid copper conductor, PVC insulated and PVC sheathed round multi-core electrical wire
* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
* Flexible copper conductor, PVC insulated single core electrical wire
* Flexible copper conductor, PVC insulated twin parallel electrical wire
* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrical wire
4). Standards :IEC60227 DIN VDE0281-5 BS6004/6007/6360N AS/NZS etc.
5). Norminal cross section size of conductor:
0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2
Henan Baofeng Cable Co Ltd. is an ISO certified processional cables & wires supplier, we mainly produce andsupply 1~35kV power cables, bare conductors like AAAC, AAC, ACSR and ABC cables, instrumentation cables, electrical wires, rubber cables etc.
Our products produced as per customers design and drawings and all the standards including, IEC, BS, UL, VDE, ASLV, NFC and AS/NZS etc. We also can make some technology application and testing standards by ourselves.
