Product Details
Place of Origin: | Henan, China | Brand Name: | Baofeng | Model Number: | AAC |
Conductor Material: | Other, All Aluminum Conductor | Insulation Material: | Other, none | Jacket: | Other, none |
Number of Conductors: | Single | Application: | Overhead |
Product Description
ASTM BS IEC DIN GOST Standard AAC ACSR Conductor Cable
ASTM BS IEC DIN GOST Standard AAC ACSR Conductor Cable
1.Application
AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%.
2.Standard
Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards
3.Construction

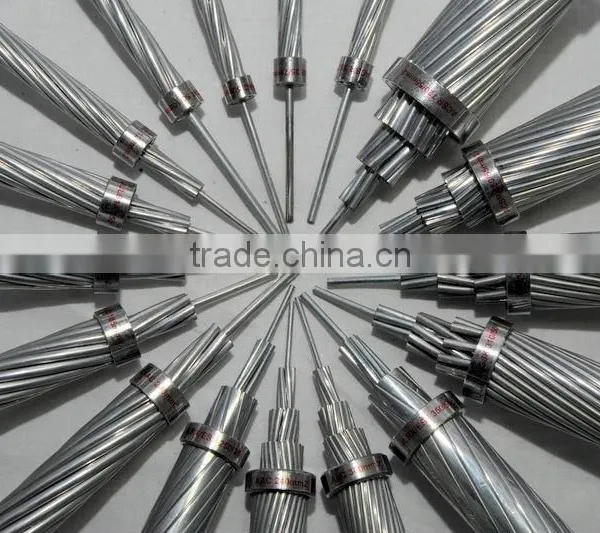

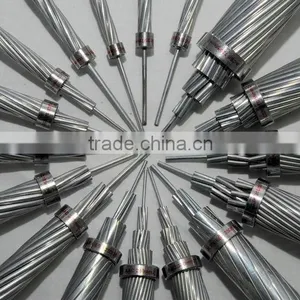

Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines.
AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas.
Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized.
All aluminium conductors are made up of one or more strands of aluminium wire dep.

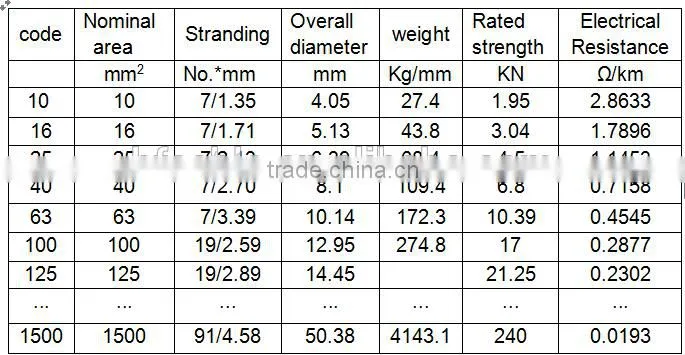

4.Electrical Properties
Density@20ºC | 2.703 kg/dm |
Temperature Coefficient@20°C | 0.00403 (°C) |
Resistivity@20°C | 0.028264 |
Linear Expansivity | 23 x10-6 (°C) |
5.Service Conditions
Ambient Temperature | -5°C - 50°C |
Wind Pressure | 80 – 130kg/m2 |
Seismic Acceleration | 0.12 - 0.05g |
Isokeraunic Level | 10 – 18 |
Relative Humidity | 5 – 100% |

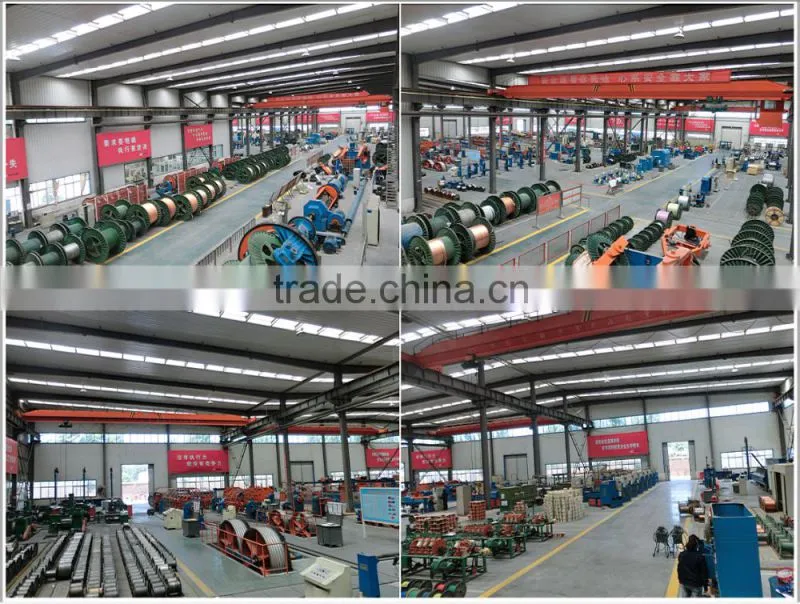

Henan Baofeng Cable Co Ltd. is an ISO certified processional cables & wires supplier, we mainly produce and supply 1~35kV power cables, bare conductors like AAAC, AAC, ACSR and ABC cables, instrumentation cables, electrical wires, rubber cables etc.
Our products produced as per customers design and drawings and all the standards including, IEC, BS, UL, VDE, ASLV, NFC and AS/NZS etc. We also can make some technology application and testing standards by ourselves.
