Product Details
Place of Origin: | Henan, China | Brand Name: | Baofeng | Model Number: | ACSR |
Conductor Material: | Other, Aluminium Conductor Steel Reinforced | Insulation Material: | Other, none | Jacket: | Other, none |
Number of Conductors: | Single | Application: | Overhead |
Product Description
ACSR Aluminum Conductor , cable and wire
ACSR Aluminum Conductor , cable and wire
1.Brief Description:

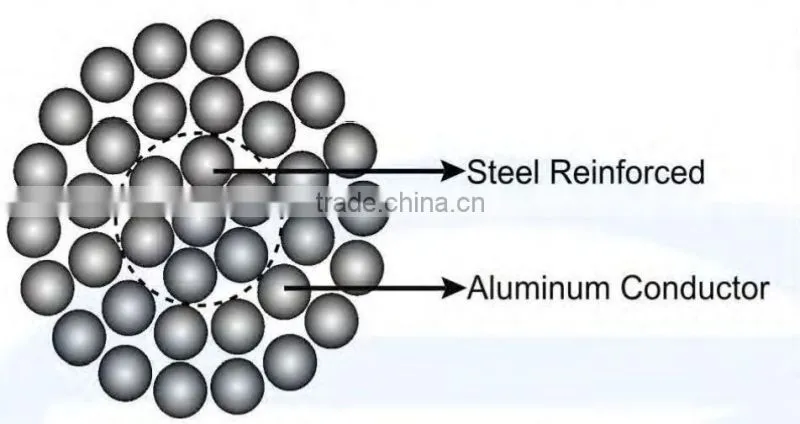

ACSR (Aluminum Conductor Steel Reinforced), consisting of a galvanized steel core which is surrounded by concentric layers of aluminum wires, and can becorrosion resistant if necessary. It is widely used in the overhead power distribution system.
2.Application:
ACSR conductor have been widely used in power transmission lines with various voltage.
Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
3.Standard:
We can supply this conductor according to different recognized standards,
such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110,
and customers’ special specifications also can be satisfied.
4.Package:
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
5.Material:
Conductor:AL1350 pure aluminum
Steel core:G1A or G2A steel wire
Henan Baofeng Cable Co Ltd. is an ISO certified processional cables & wires supplier, we mainly produce and supply 1~35kV power cables, bare conductors like AAAC, AAC, ACSR and ABC cables, instrumentation cables, electrical wires, rubber cables etc.
Our products produced as per customers design and drawings and all the standards including, IEC, BS, UL, VDE, ASLV, NFC and AS/NZS etc. We also can make some technology application and testing standards by ourselves.
