low voltage Triplex Service Drop Aerial Bundle Cable
Standards :
ASTM B232 IEC BS DIN NFC 33-209 ISO9001-2008
Rated voltage
0.6/1kV 10kV 25kV 35kV
Construction
Phase Conductor
Cables manufactured in bare aluminum, hard, class A stranding.
Insulation
Constituted by Thermoplastic(PE) or Thermoset(XLPE) polyethylene.
Neutral Conductor
The neutral conductor can be a bare aluminum cable(AAC) or an aluminum cable with steel core(ACSR).
Type & Description
|
ABC CABLE |
No. of core |
Cross-section mm2 |
|
1, 2, 4, 4+2 1+k, 2+k, 3+k 1+k+16, 2+k+16, 3+k+16 |
10-185 |
Types and Applications of XLPE insulated abc cable (service drop)
Duplex Service Drop To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Triplex Service Drop To supply power from the utility`s lines to the consumer`s weather head. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
Quadruplex Service Drop Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s service head where connection to the service entrance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

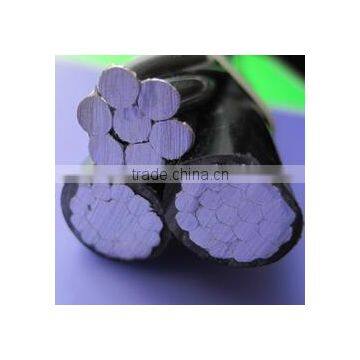

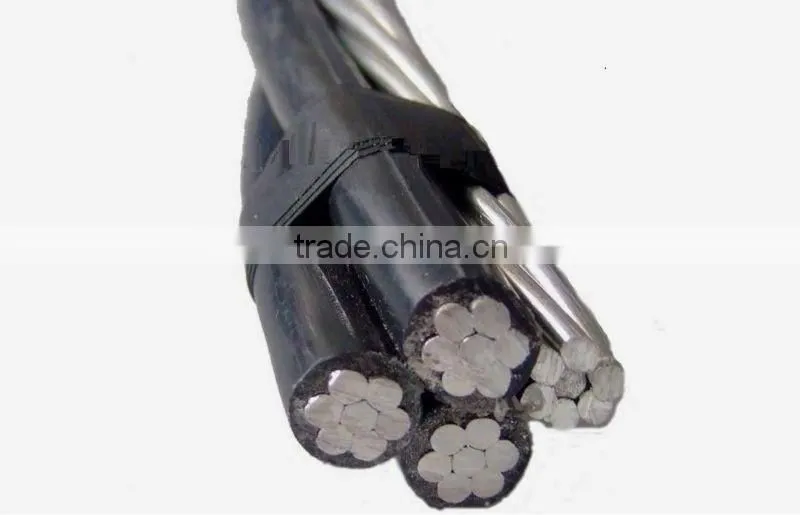

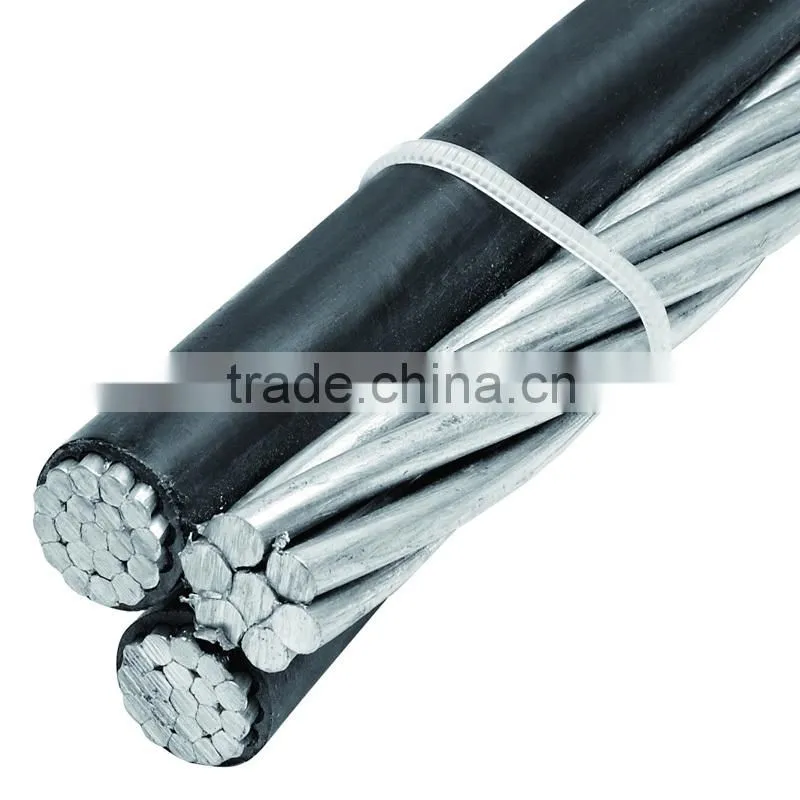

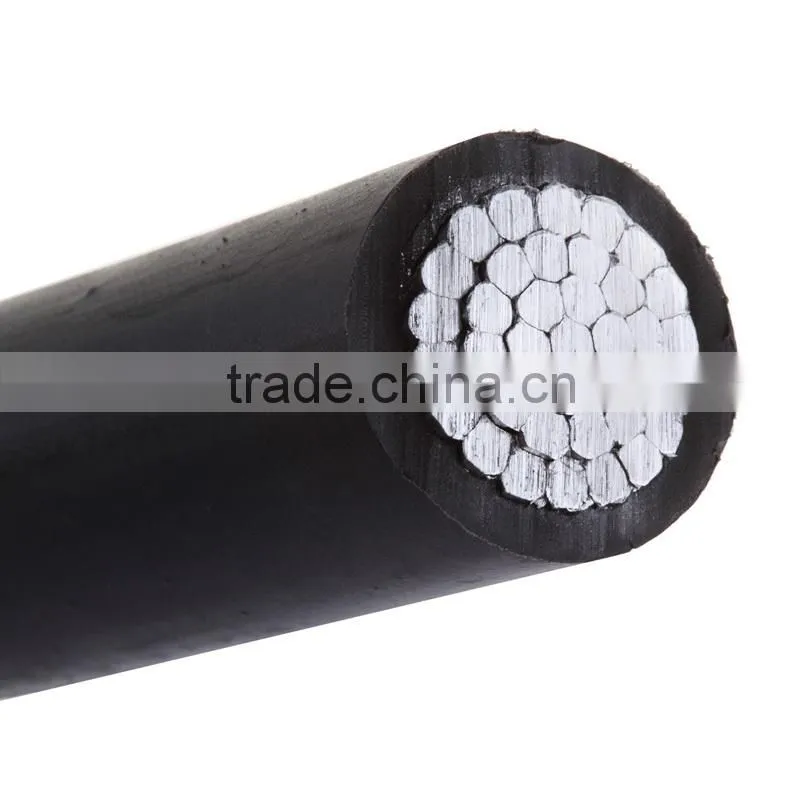

Some pictures of ABC Cable

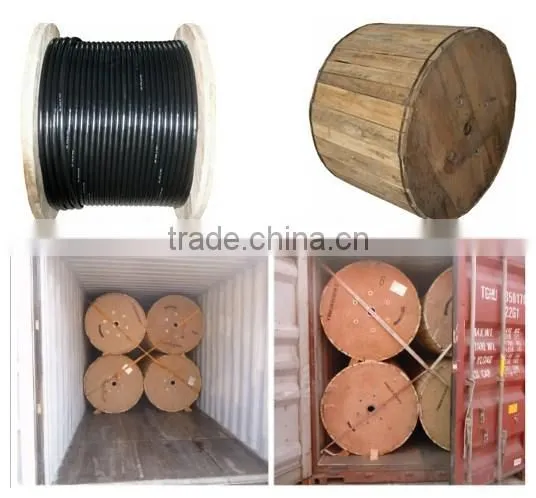

We can use international wooden drum, steel wooden drum,
steel drum or your requirement.
