0.6/1kv single core xlpe insulated overhead abc cable
Standards :
ASTM B232 IEC BS DIN NFC 33-209 ISO9001-2008
Rated voltage
0.6/1kV 10kV 25kV 35kV
Nominal Cross-sectional Areas(sqmm)
10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2
Construction
Phase Conductor
Cables manufactured in bare aluminum, hard, class A stranding.
Insulation
Constituted by Thermoplastic(PE) or Thermoset(XLPE) polyethylene.
Neutral Conductor
The neutral conductor can be a bare aluminum cable(AAC) or an aluminum cable with steel core(ACSR).
Type & Description
|
ABC CABLE |
No. of core |
Cross-section mm2 |
|
1, 2, 4, 4+2 1+k, 2+k, 3+k 1+k+16, 2+k+16, 3+k+16 |
10-185 |
Types and Applications of XLPE insulated abc cable (service drop)
Duplex Service Drop To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Triplex Service Drop To supply power from the utility`s lines to the consumer`s weather head. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
Quadruplex Service Drop Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s service head where connection to the service entrance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

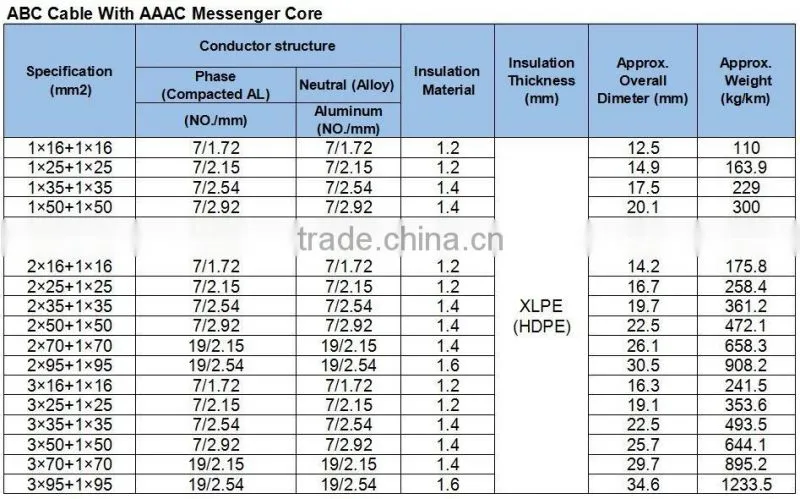

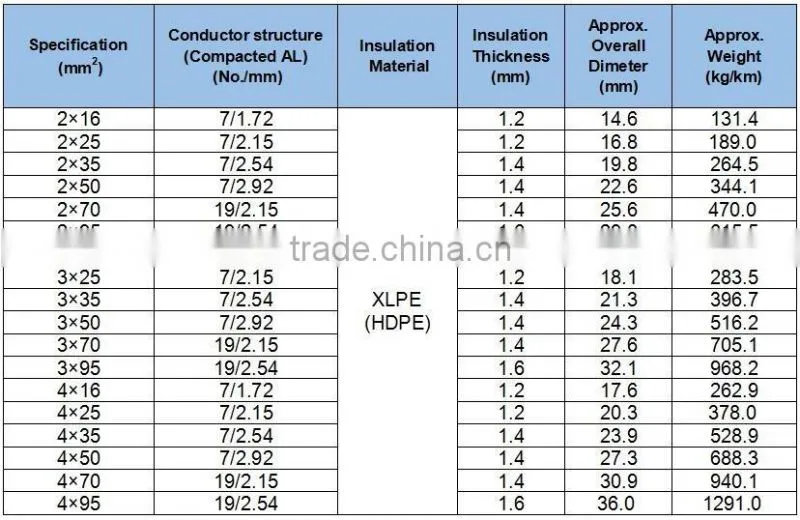

Some pictures of ABC Cable
We can use international wooden drum, steel wooden drum, steel drum or your requirement.
Our main products:
* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.
* Power Cable including low voltage and high voltage up to 35kV and lower.
Our the other products:
*The other cables including AAC, AAAC, ACSR, BCC, Communication Cable, Rubber Sheath Cable,
Computer Cable, Control cable, Optical Fiber Cable, Lan Cable
