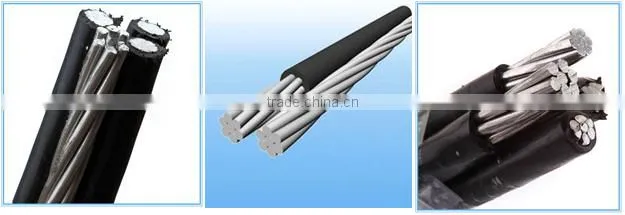

Quadruplex Aerial Bundled Cable ABC
Application
Overhead, outdoors or in some low voltage areas.
Aerial Bundle Cable(ABC Cable)
is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.
Standards
ASTM, BS, IEC, NFC, GB, AS/NZS

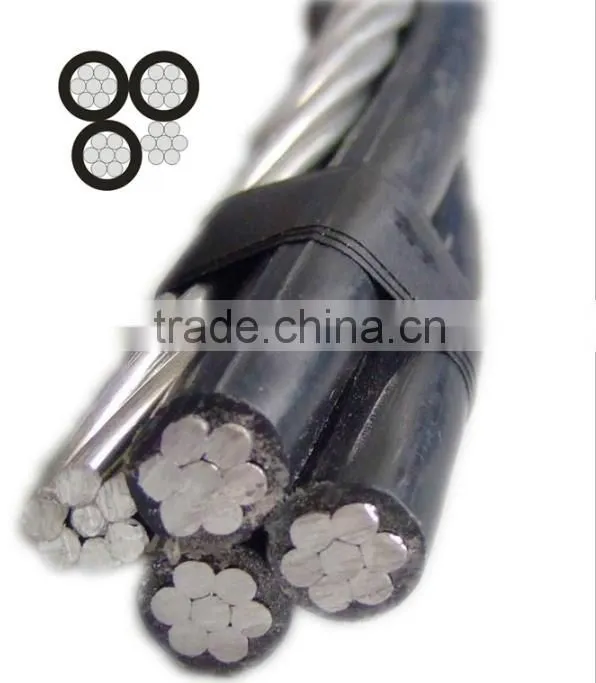

Construction
Conductor: Aluminum conductor, round stranded conpressed(RM).
Insulation: XLPE compound
Core identification: 1, 2 resp.3 raised longitudinal ribs on the surface of the cores. The surface of the neutral should have at least 12 ribs for cross-sections up to 50mm2 and a minimum of 16 ribs for cores above 50mm2. In the case of five core bundles the surface of the protective core should be smooth.
Models and descriptions
Covered line wire:
JKY: Copper core PE insulated aerial cable
JKYJ: Copper core XLPE insulated aerial cable
Service drop cable:
JKLY: Aluminum core PE insulated aerial cable
JKLYJ: Aluminum core XLPE insulated aerial cable
Secondary UD cable:
JKLHY: Aluminum alloy core PE insulated aerial cable
JKLHYJ: Aluminum alloy core XLPE insulated aerial cable
Nominal Cross-sectional Areas(sqmm)
10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2
Related Products
Quadruplex Aerial Bundled Cable ABC
Quadruplex Aerial Bundled Cable ABC

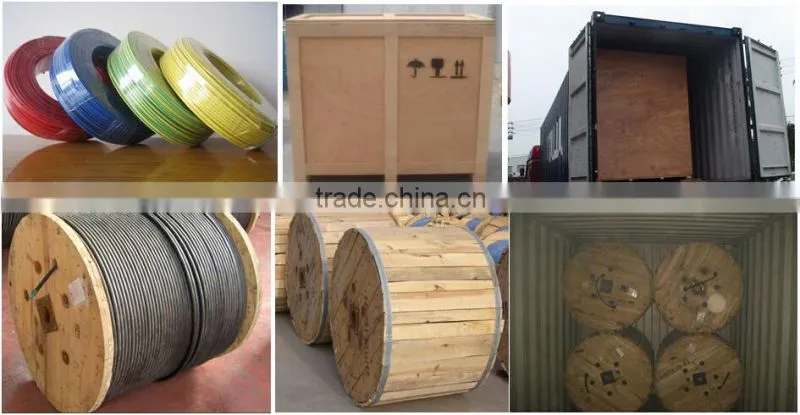

International treated wooden drum, wooden- steel drum, wooden box, rolls.
Quadruplex Aerial Bundled Cable ABC
Our main products:
1) ABC Cables including 1kV, 10kV and 11kV with sizes 10sqmm to 630sqmm, 1 to 5 cores.
2) Power Cable including low voltage and high voltage up to 35kV.
3) Electrical wires(THHN, THWN, THW). Housing, lighting electric wire.
4) Bare Conductor including ACSR, AAC, AAAC, Steel wire

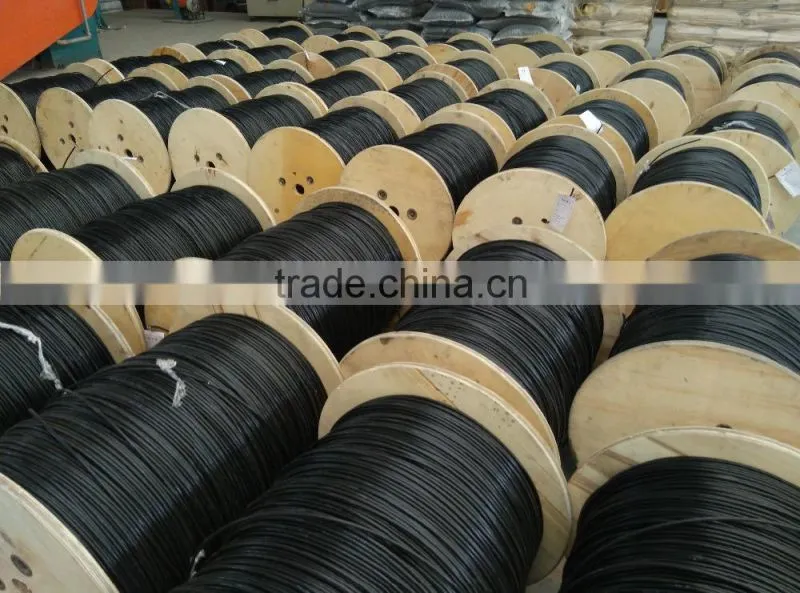

Factory Show
We are ISO, CE, CCC manufacturer.
A: Certificate of origin: FORM A, FORM B, FORM E, FORM P, FORM F, FORM N, FORM X.
B: Fatory direct sale.
C: Free sample.
D: Reply within 12 hours.
E: Good after-sale service.
F: Customer design is available.
