Functional High Speed Blister Packing Machine
Application:
1. This machine mainly be used in packing pharaceutical products, such as tablets, pills, capsules and drugs.
2. This packaging way(blister-pack) can impove product's quality, enhance product's additional value.
Performance:
1. Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
2. With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test ,failure automatic debug and alarm, automatic protection and stop running.
3. The machine station module type design of level frame, good sight, safe and convenient operation.
4. Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.
5. PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.
6. The special design of moulds in rectangle shape, ladder type fixing, provide much convenience and easy to moulds replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.
7. Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
8. Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
9. The machine has been designed into separated body, which is easily move into lifts or workshops.
Main Technical Parameters:

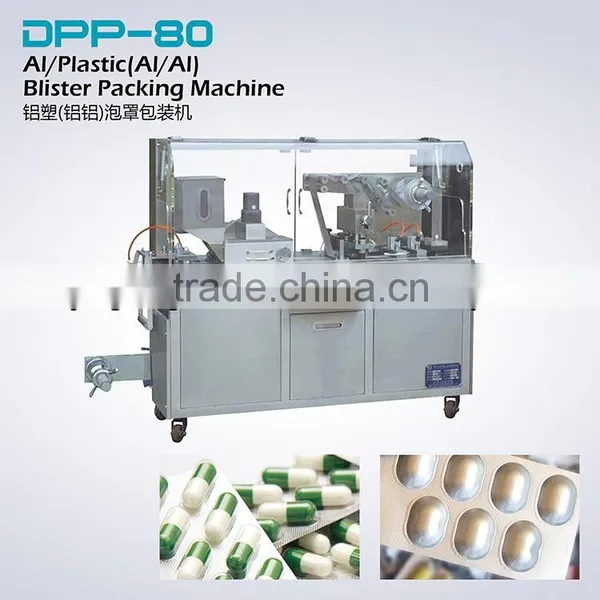

Model | DPP-80 | DPP-150C | DPP-250E | DPP-260H |
Punch Speed | AL/PVC 10-35 Times/min AL/AL 10-20 Times/min | AL/PVC 10-35 Times/min AL/AL 10-25 Times/min | AL/PVC 10-40 Times/min AL/AL 10-25 Times/min | AL/PVC 20-60 Times/min AL/AL 15-30 Times/min |
Adjustable Stroke Range | 40-75mm (freely adjusted) | 40-110 mm (freely adjusted) | 30-140 mm (freely adjusted) | |
Max. Forming Area | AL/PVC 95mm×60mm AL/AL 90mm×60 mm | AL/PVC 135mm×110mm AL/AL 130mm×110 mm | AL/PVC 240mm × 130 mm AL/AL 240mm ×130 mm | AL/PVC 260mm × 130 mm AL/AL 260mm ×130 mm |
Max. Forming Depth | AL/PVC 15 mm AL/AL 10mm | AL/PVC 25 mm AL/AL 12mm | AL/PVC 22 mm AL/AL 18mm | AL/PVC 25 mm AL/AL 18mm |
Total Power | AL/PVC:3.3Kw AL/AL: 2.1Kw | AL/PVC: 3.3Kw AL/AL: 2.1Kw | AL/PVC: 7Kw AL/AL: 3Kw | AL/PVC: 9.6Kw AL/AL: 4Kw |
Air Pump Volume Flow | ≥0.15 m3/min | ≥0.15 m3/min | ≥0.2 m 3/min | ≥0.25 m 3/min |
PVC for Medicine | 0.25mm×90mm | 0.25mm×150mm | 0.25mm×250mm | 0.25mm×260mm |
Aluminum Foil for Sealing | 0.025mm×90mm | 0.02mm×150mm | 0.02mm×250mm | 0.02mm×260mm |
Forming Aluminum | 0.16mm×90mm | 0.16mm×150mm | 0.16mm×250mm | 0.16mm×260mm |
Overall Dimensions(L×W×H) | 1400×460×950mm | 2300×560×1410mm | 3100×670×1650mm | 4500x760x1620mm |
Weight | 400kg | 600kg | 1500kg | 1800kg |
We Provide You With Sincerely Service, if you interest, please contact us NOW!!!
