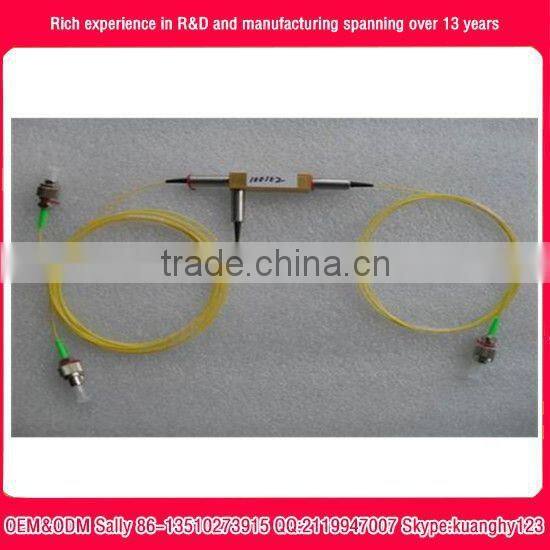

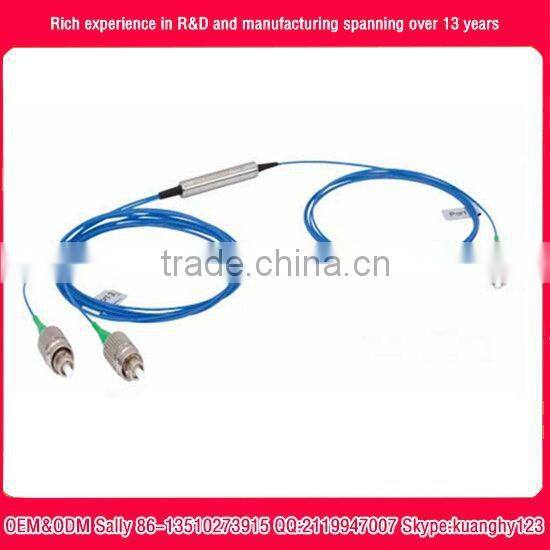

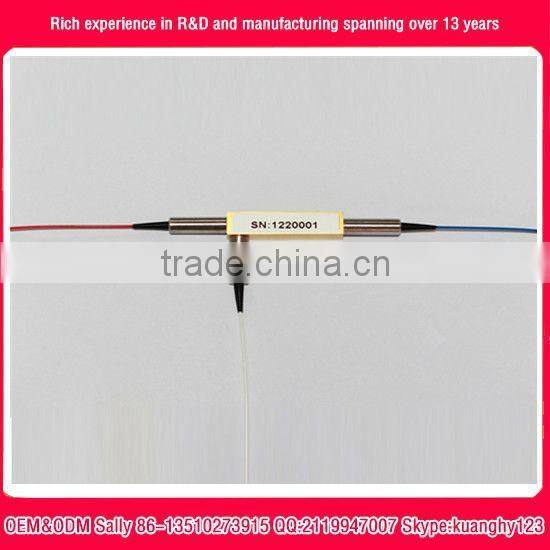

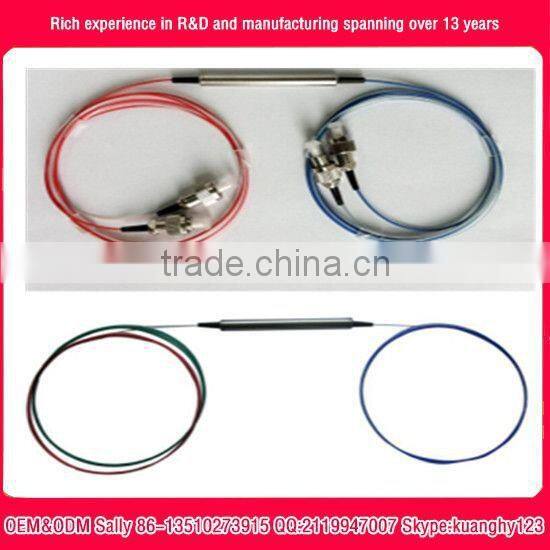

1X2 1550nm Polarization Maintaining Optical Circulator

 fiber optical circulator

Optical Circulator is a passive optical component that can be used to achieve bi-directional transmission over a single fiber in WDM optical networks. It is widely implemented in equipment such as Dispersion Compensation Modules (DCMs), Optical Add-Drop Multiplexers (OADMs), Optical Time-Domain Reflectometers (OTDRs), optical amplifiers, and fiber optic sensors. Powerlink provides both polarization insensitive and polarization maintaining optical circulators. These optical circulators feature with high isolation, low insertion loss, and excellent environmental stability etc. Customers can buy these circulators directly in this category or Make Customized Orders.

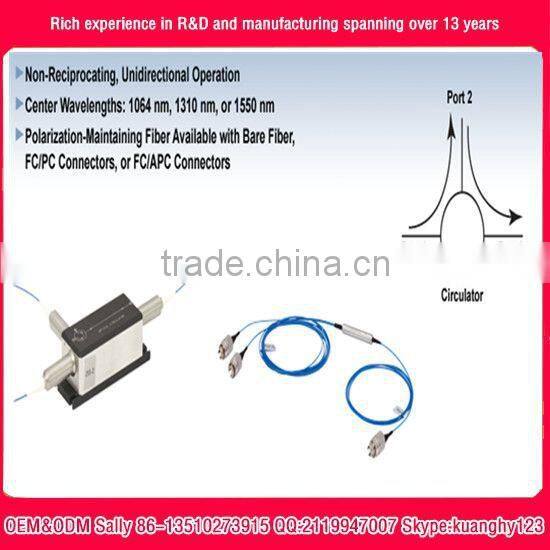

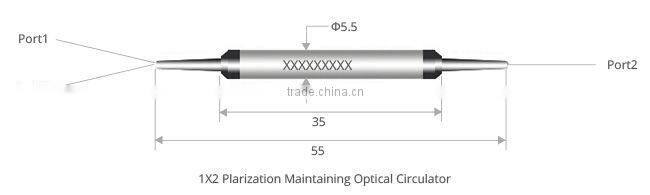

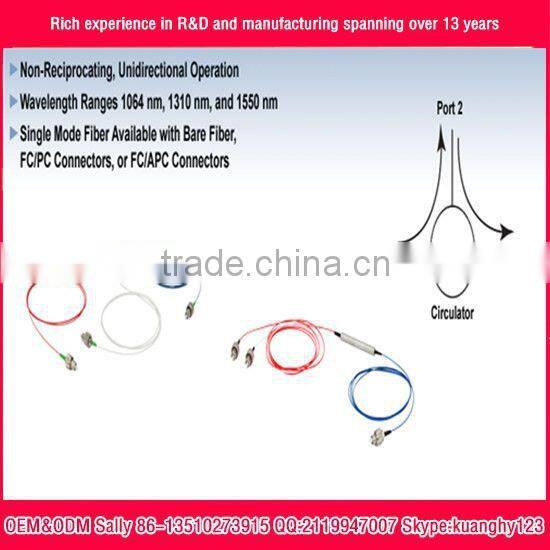

Powerlink’s Polarization-Maintaining (PM) Optic Circulators are non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups. Available with a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band), these circulators are designed to work with light that is launched into the slow axis.

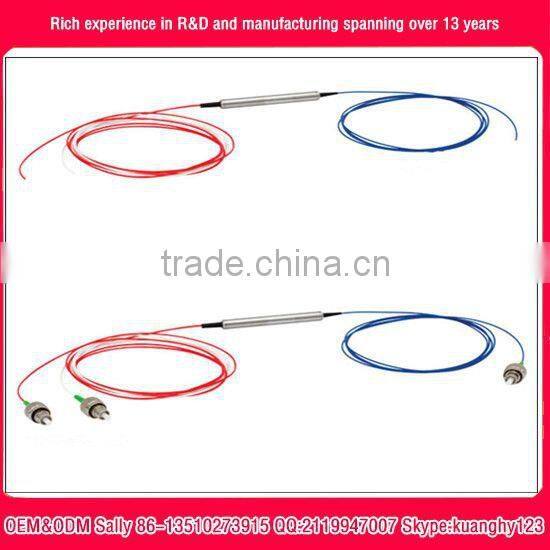

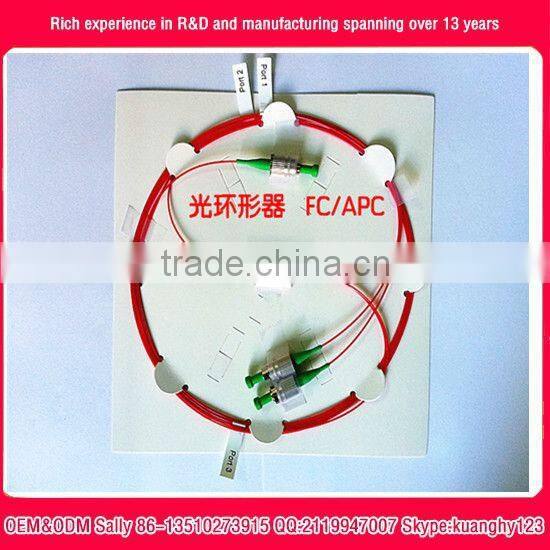

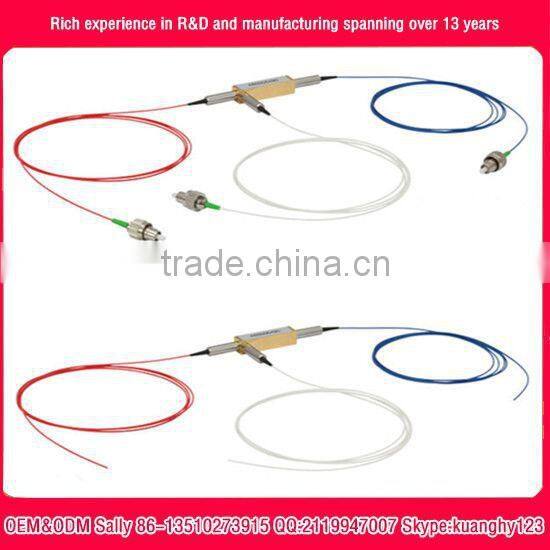

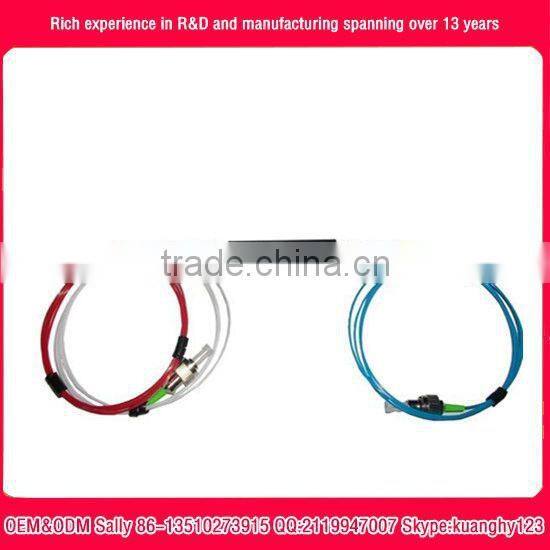

Choose from versions with no connectors, FC/ST/SC/LC PC&APC connectors and so on.
Characteristics

1. Low Back Reflection
2. High Extinction Ratio
3. Low Insertion Loss
4. High Return Loss
5. Excellent environmental stability and reliability

Applications

1. DWDM system
2. Add-Drop Multiplexing
3. Fiber Amplifier
4. Fiber Sensor
5. Chromatic Dispersion Compensation Devices
6. Fiber Bragg Grating
7. Polarization maintaining optical system

Application Diagram

Below are Three Port Circulator application for your reference.

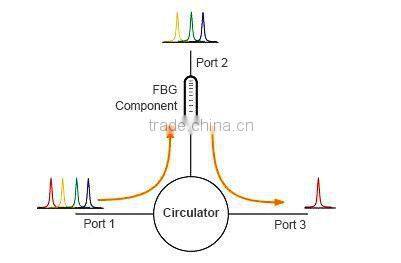

        As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.

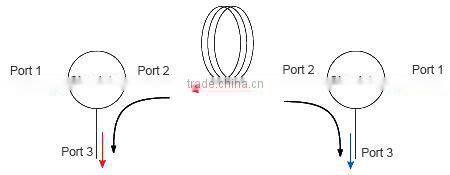

         As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions

Order Information
