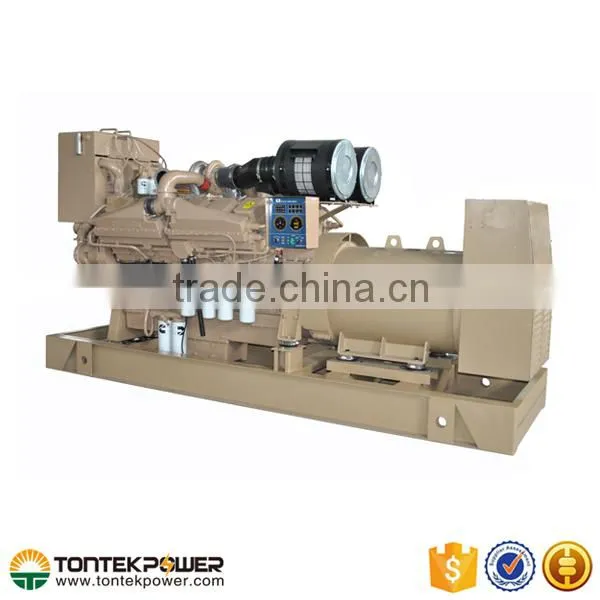

600kW 12Cylinders Electrical Marine Generator Uesd for Offshore
US$ 70,000 - 78,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONTEK POWER
Model Number:
CCFJ600J-WTPC5
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
700kW 12Cylinders Electrical Starting Marine Generator With 24V BatteryUS$ 68,000 - 76,000MOQ: 1 Set -
800kW 12Cylinders Electrical Starting Marine GensetUS$ 105,000 - 115,000MOQ: 1 Set
-
200kW Four Stroke Electrical Marine Generating SetUS$ 24,000 - 26,000MOQ: 1 Set
-
High Voltage 6 Cylinders 240kW Marine Generating Set With Factory PriceUS$ 19,000 - 21,000MOQ: 1 Set
-
High Voltage 280kW Heat Exchanger Marine GeneratorUS$ 33,000 - 36,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
TONTEK POWER
Model Number
CCFJ600J-WTPC5
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50HZ
Rated Power
600kW/750kVA
Rated Voltage
400
Rated Current
1080A
Product Attribute
| 600kW Cooled by heat exchanger Electrical Marine Geneset | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ600J-WTPC5 | ||||||||
| Prime power | 600KW/750KVA | ||||||||
| Rated Voltage(V) | 440 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 4100x1500x2500 | ||||||||
| Genset Weight(kg) | 6350 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | KTA38-DM | ||||||||
| Output power | 730.4kW/913kVA | ||||||||
| Number of Cylinders | 12 | ||||||||
| Cylinder arrangement | -V type | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharged.LTA | ||||||||
| Bore×Stroke (mm×mm) | 159x 159 | ||||||||
| Displacement (Liter) | 38 | ||||||||
| Compression Ratio | 13.5:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | cooled by heat exchanger | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 196 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI6B | ||||||||
| Rated power | 600KW/750KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
Product Description
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
