Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 200kW Four Stroke Electrical Marine Generating Set

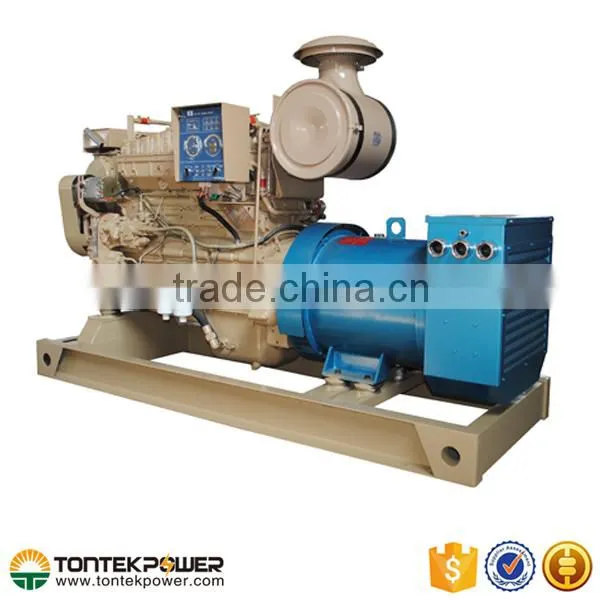

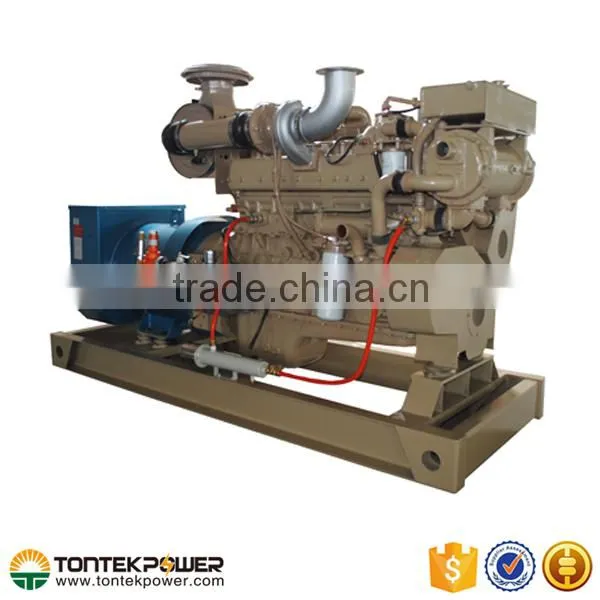

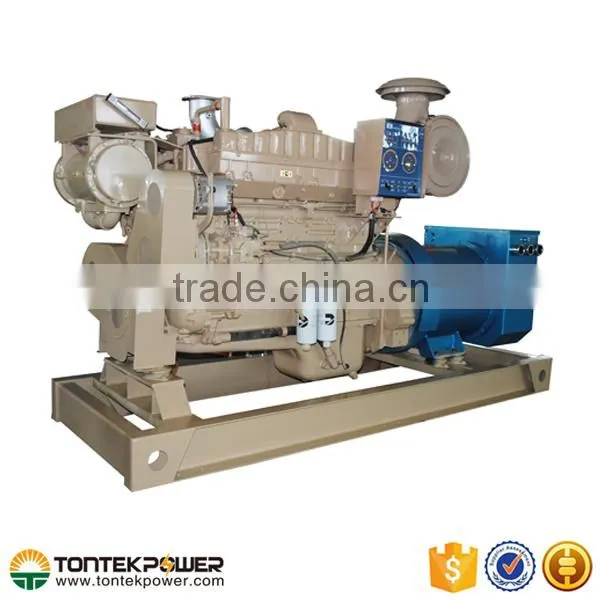

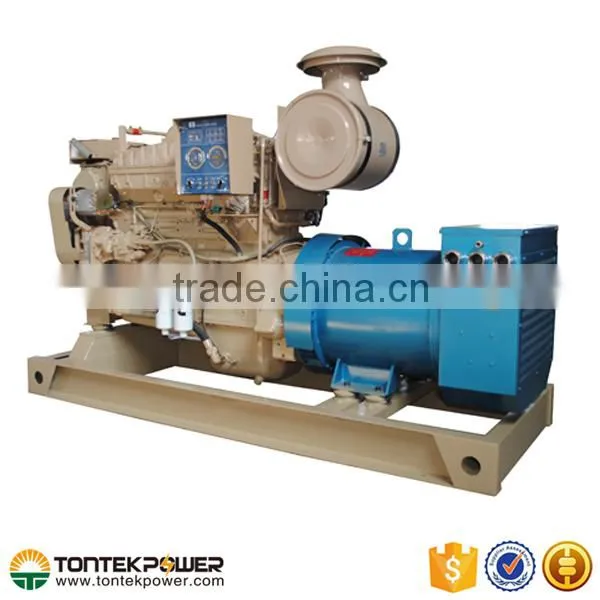

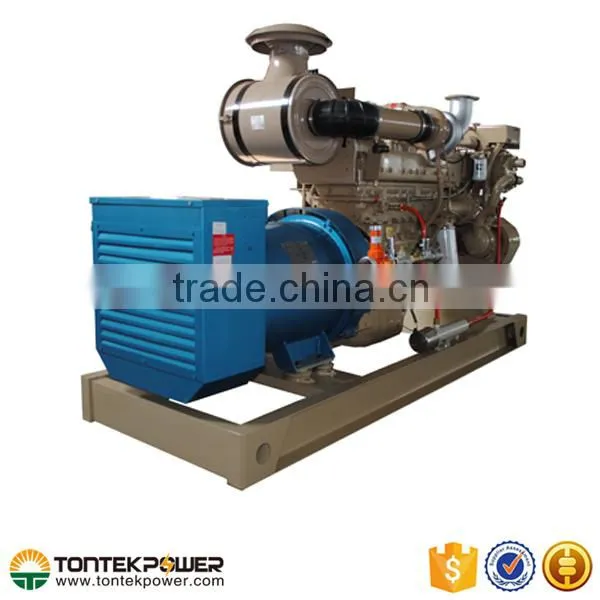

200kW Four Stroke Electrical Marine Generating Set
US$ 24,000 - 26,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONTEK POWER
Model Number:
CCFJ200J-WTPC5
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage 6 Cylinders 240kW Marine Generating Set With Factory PriceUS$ 19,000 - 21,000MOQ: 1 Set -
High Voltage 280kW Heat Exchanger Marine GeneratorUS$ 33,000 - 36,000MOQ: 1 Set
-
300kW Heat Exchanger Electrical Marine GeneratorUS$ 30,000 - 33,000MOQ: 1 Set
-
6Cylinders Four Stroke Electrical Marine GeneratorUS$ 39,000 - 40,000MOQ: 1 Set
-
High Voltage 400kW Electrical Marine Generator at 50hzUS$ 38,000 - 41,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
TONTEK POWER
Model Number
CCFJ200J-WTPC5
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50HZ
Rated Power
200kW/250kVA
Rated Voltage
400V
Rated Current
360A
Product Attribute
| 200kW Four stroke Electrical Marine Generating Set | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ200J-WTPC5 | ||||||||
| Prime power | 200KW/250KVA | ||||||||
| Rated Voltage(V) | 440 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 2760x995x1790 | ||||||||
| Genset Weight(kg) | 3100 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | N855-DM | ||||||||
| Output power | 264kW/330kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | -In Iine | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharged,LTA | ||||||||
| Bore×Stroke (mm×mm) | 140x 152 | ||||||||
| Displacement (Liter) | 14 | ||||||||
| Compression Ratio | 14.0:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | cooled by heat exchanger | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 214 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | UCDI274K | ||||||||
| Rated power | 200KW/250KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
Product Description
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
