Home > Products > Marine Diesel Generator Sets > 280kW Heat exchanger Electrical Marine generator at 50HZ

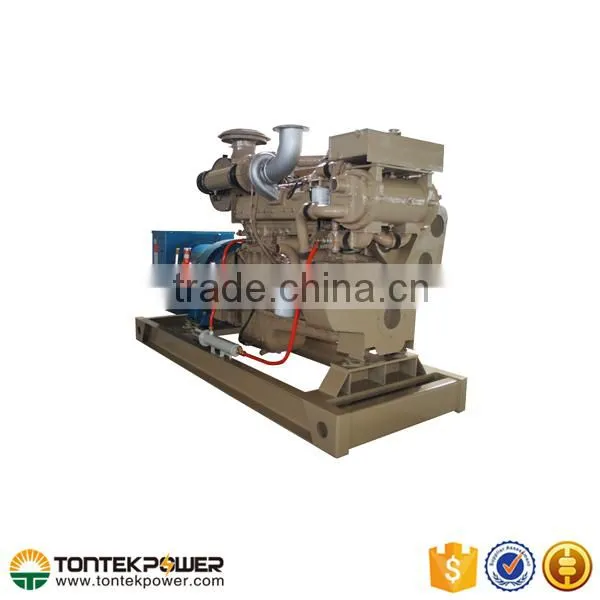

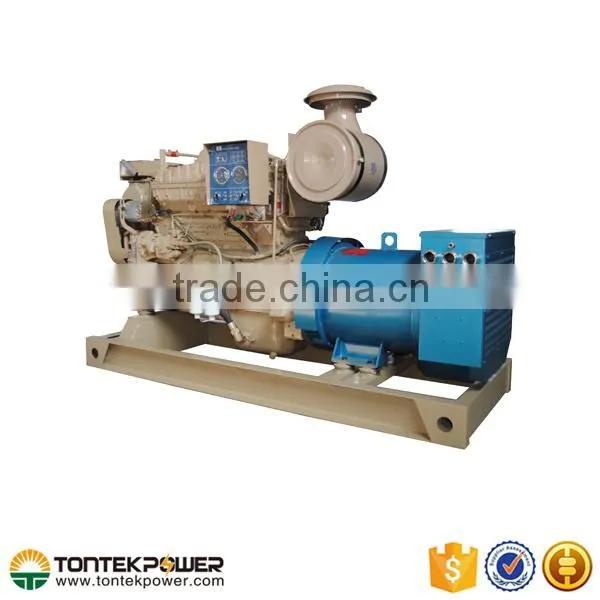

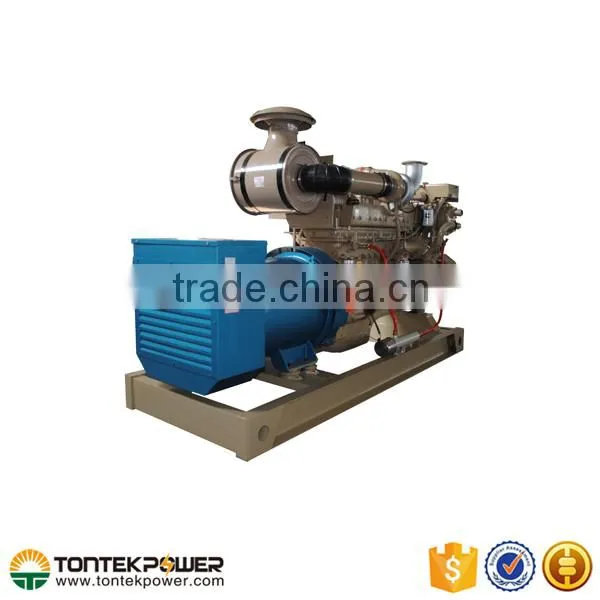

280kW Heat exchanger Electrical Marine generator at 50HZ
USD $19,000 - $21,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- FOB SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | TONTEK POWER | Model Number: | CCFJ280J-WTPC5 |
| Output Type: | AC Three Phase | Speed: | 1500RPM | Frequency: | 50HZ |
| Rated Power: | 280kW/350KVA | Rated Voltage: | 400 | Rated Current: | 504A |
Product Description
Product Attribute
| 280kW Heat exchanger Electrical Marine generator at 50HZ | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ280J-WTPC5 | ||||||||
| Prime power | 280KW/350KVA | ||||||||
| Rated Voltage(V) | 440 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 2990x1000x1780 | ||||||||
| Genset Weight(kg) | 3250 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | NTA855-DM | ||||||||
| Output power | 349kW/436kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | -In Iine | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharged | ||||||||
| Bore×Stroke (mm×mm) | 140x 152 | ||||||||
| Displacement (Liter) | 14 | ||||||||
| Compression Ratio | 14.0:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | cooled by heat exchanger | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 201 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI4E | ||||||||
| Rated power | 280KW/350KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
Product Description
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
