Duplex DWDM AAWG Mux Demux C21 to C60 3dB Insertion Loss with Monitor Port
Duplex DWDM MUX & DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers
DWDM Mux/Demux modules are part of a series of high performance products based on silica-on-silicon planar technology. The AWG chips FiberStore used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount. Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control. Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor. The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information.
Specification
| 100G AAWG DWDM Specifications | |||
| Parameter | Unit | Min. | Max. |
| Channel Spacing | GHz | 100 | |
| Number of Channels | 40 | ||
| Cha. Center Wavelength | nm | C-band | |
| Clear Channel Passband | GHz | ±0.1 | |
| Wavelength Stability | nm | (+/-0.05) | |
| Passband Width (@ -1 dB) | nm | 0.24 | |
| Passband Width (@ -3 dB) | nm | 0.43 | |
| Insertion Loss * dB at ITU grid | dB | 4.5 | |
| Uniformity | dB | 1.5 | |
| Ripple | dB | 1.5 | |
| Return Loss | dB | 40 | |
| Adjacent Channel Isolation | dB | 25 | |
| Non-Adjacent, Channel Isolation | 29 | ||
| Total Channel Isolation | 22 | ||
| PDL (Polarization Dep. Loss) in Clear | dB | 0.5 | |
| PMD (Polarization Mode Disp.) | ps | 0.5 | |
| Maximum Optical Power | dBm | 23 | |
| MUX/DEMUX input/output monitoring range | dBm | -35 | 23 |
| Chromatic Dispersion | ps/nm | (-20 to +20) | |
| Temperature, Operating | OC | (-5 to +65) | |
| Temperature, Storage | OC | (-40 to +85) | |
| *Note: Insertion Loss values do not include connector losses. | |||
Packaging and Shipping
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Our service
"One to one" heart to heart service:Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
Company Information
Shenzhen powerlink electronic technology company limited is a high-tech private-run enterprise specialized in research development ,manufacturing customized video and fiber optical media converter products and power supply products . mainly manufacture Optical Fiber Transmission, Data Communication and Network Access Equipments. Included LD/PD, Optical Fiber Communication ,fiber media converter, digital video converters, media converters,Digital CCD cameral ,ethernet switch, video converter, fiber optic modem, protocol converter, fiber optic adapter, fiber optic cable, patch cord, optical coupler, wavelength division multiplexer, optical attenuator, fiber optic splice enclosure, fiber optic terminating box ,LED power supply ,switch power supply etc, which have been are widely applied in many industries like telecom, broadcast&television, finance,traffic safety protection, computer, campus network, interliligent district and electronic government affairs engineering etc. those products are used widely in more than 30 industries , such as Telecom ,safe city Surveillance, International Airports, Highway, Power, Hydropower, Public Security.
FAQ
Why POWERLINK
- Higher quality but lower price :Business Process Outsourcing. Outsourcing the repetitive non-core or core production process to professional suppliers, reduce cost; improve service at the same time. Can concentrate on control of the company's core technology, achieve high-end products positioning as well as understand the whole industry chain deeply
- Complete solution, meet individual requirements
- We thoughtfully consider from the initial design to material and supplier selection, from the main parts to one wire or even a screw. Combination local geographical, climatic characteristics, as well as factors such as regional culture in of product design, and fully customized to meet the requirements.
- Resource integration, provide you with the most satisfied products :We have accumulated thousands of solar manufacturers, hundreds of friendly cooperator, we will continue the accumulation.
- Professional technique, quality assurance:Control the quality from the source, professional product engineers and sales engineers make checks at all levels.
- ERP management :All management runs through pre-sale, sales, after- sale strictly in accordance with the ERP.
- Standardization,Atumization,Vitrification,Definite Responsibility,More Optimized Flow

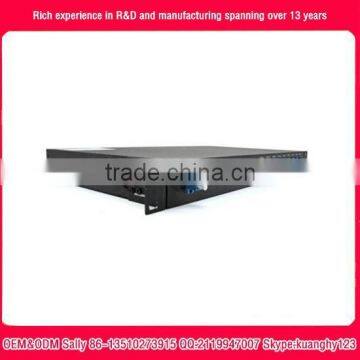

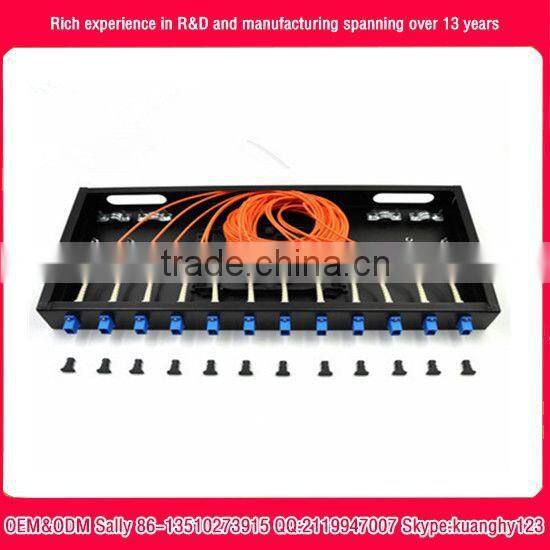

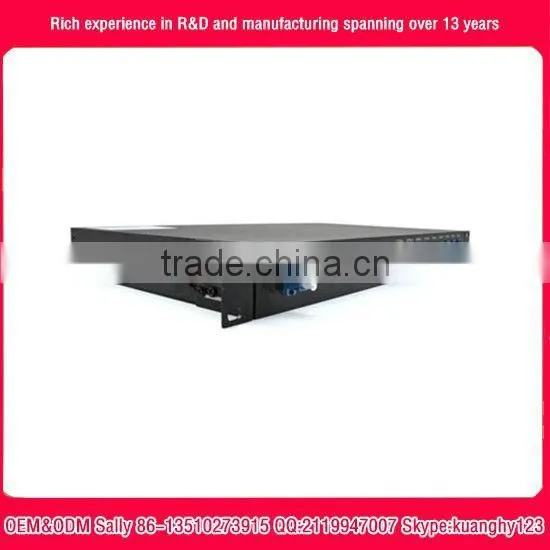

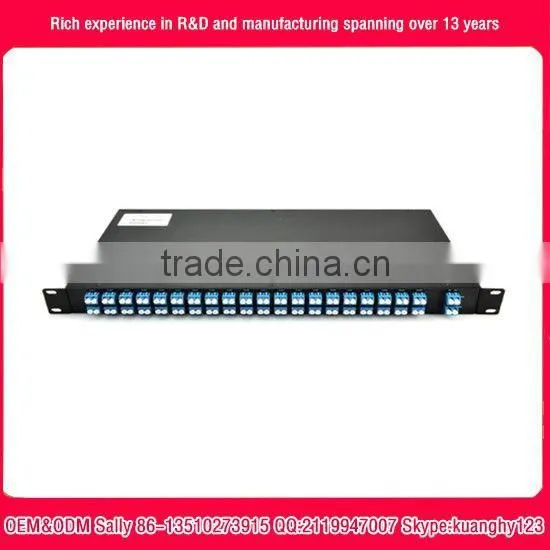

Detailed Image
Detailed Images
