Home > Products > Valves > PP TRUE UNION BALL VALVE 4"

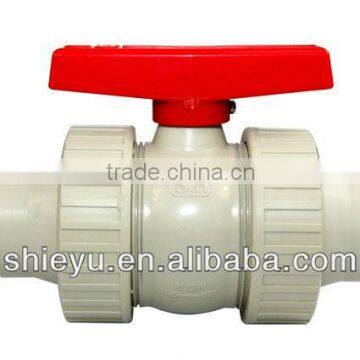

PP TRUE UNION BALL VALVE 4"

FOB Price

US$ 1 - 500 / Piece

100 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Ball
Pressure	High Pressure	Power	Hydraulic
Material	Other, PP, UPVC,PP,CPVC,PVDF	Temperature of Media	High Temperature
Media	Other, Oil, Gas, Acid, Water	Port Size	1/2"~4"
Place of Origin	Jiangsu, China	Model Number	CD100/CD200/CD300
Brand Name	SH

Product Description

SHIE YU Professional in PIPE&FITTINGS AND DIAPHRAGM VALVE&BUTTERFLY VALVE&BALL VALVE&CHECK VALVE

SHIE YU Milestones

-1973, Shieyu Group is established in Taichung

-1994, first company in Taiwan gained NSF listing

-1997, obtained ISO9001

-1999, established Kaohsiung facility to produce fittings and pipes

-2002, established manufacturing facility in China

-2008, China facility obtained NSF listing for CPVC CTS fittings.

-2012, Group annual turnover rate is 100 million USD.

-2013.05, Celebrated 40thanniverysary

-2013.08, China facility obtained NSF listing for UPVC SCH80 pipes and fittings

-2013.12, Set up second facility in Kunshan specializing in PPH/PVDF/ECTFE/HDPE products under the brand ASIAN VALVE.

Company information

1.We have own factoty for over 40 years with good quality and Service.

2.Good Quality: Implement NSF and ISO quality system on all products.

3.Good reputation in Southeast Asian,Middle east, South America market.

4.We have complete product ranges.

Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards

5.Flexible lead time.

Product Name:Plastic PP True Union Ball Valve

Description:

1.Materials:	PP
2.Size Available:	1/2"(DN15)~4"(DN100)
3.Standard:	ANSI, DIN , JIS
4.Connector:	CD100SOCKET/CD200THREAD/CD300FLANGE
5.Seat Carrier O-Ring:	EPDM/VITON
6.Brand:	SH
7.Color:	cream-coloured
8.MOQ:	50~100Pieces
9.Production Capatity:	4000Pieces per Month
10.Product Tests:	100% Tested
11.Certification Available:	NSF/ISO

Products Picture:

Material Overview:

Material:Polypropylene

Symbol: PP

Chemical Compatibility: Excellent chemical resistance of regular acids

Max.Temperature Rate: PP 90°C ~ 110°C

Product Advantages:

1,Good thermal resistance under a recommended maximum working temperature

of 90°c

2,Lightweight,high purity,and tough

3,Corrosion and abrasion resistance

4.Mechanical strength and toughness,excellent flexibility for adjustments

Typical Application:

PP----Hot corrosive liquids

Valve Tests:

1.Measure the diameters

2.Inner diameters

3.Outer diameters

4.Wall thickness

5.100% pressure testing

6.Inject air into valves then place them in the water to check for leakages

7.If there’s leakage, bubbles will appear

ALL VALVES ARE 100% TESTED
