SHIE YU Professional in UPVC, CPVC, HDPE, PPH, PVDF PIPE&FITTINGS
SHIE YU Milestones
-1973, Shieyu Group is established in Taichung
1.We have own factoty for over 40 years with good quality and Service.
2.Good Quality: Implement NSF and ISO quality system on all products.
3.Good reputation in Southeast Asian,Middle east, South America market.
4.We have complete product ranges.
UPVC 1/2“~24”
CPVC 1/2”~24”
PPH 12 ~1200mm
HDPE 12 ~1200mm
PVDF 12 ~630 mm
ABS 12 ~630 mm
Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards
5.Flexible lead time.

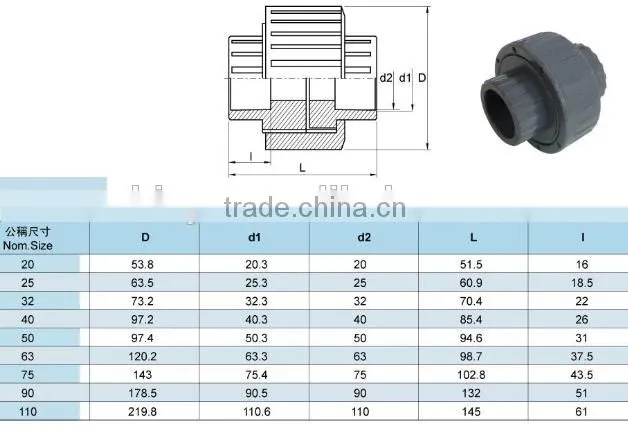

Product Name:Plastic PVC UNION
Description:
| 1.Materials: | UPVC |
| 2.Size Available: | 1/2"(DN15)~4"(DN100) |
| 3.Standard: | ANSI, DIN , JIS |
| 4.Connector: | EU100:SOCKET/EU200:THREAD |
| 5.Seat Carrier O-Ring: | EPDM/VITON |
| 6.Brand: | DFP |
| 7.Color: | Gray |
| 8.MOQ: | 50~100Pieces |
| 9.Production Capatity: | 3000Pieces per Week |
| 10.Product Tests: | 100% Tested |
| 11.Certification Available: | NSF/ISO |

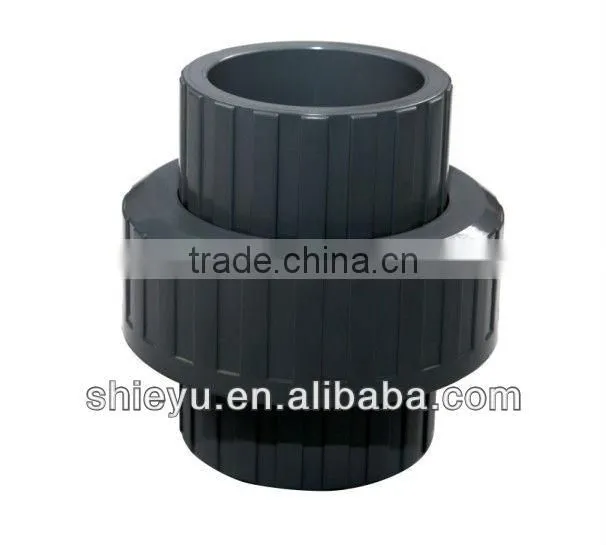

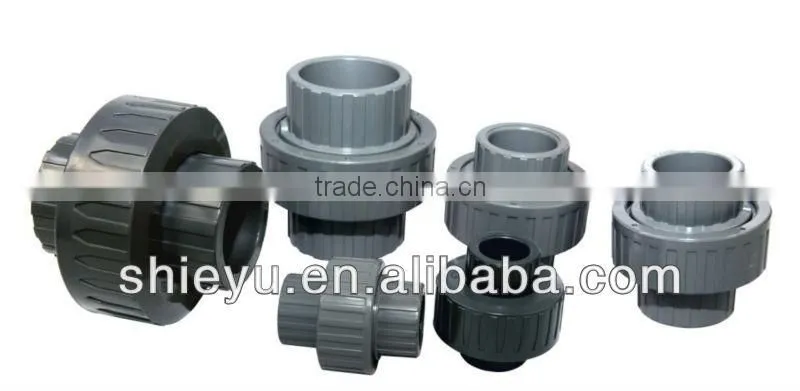

Products Picture:
Material Overview:
Material: Polyvinyl Chloride
Symbol: PVC/UPVC
Chemical Compatibility: Withstand low to high levels of chemical corrosions
such as most acids,alkalis,and salt solutions
Max.Temperature Rate: PVC 55°C ~ 60°C
Product Advantages:
1,Non-toxic, ageless, compatible in PH solutions, abrasion-resistant, non-deforming, smooth inner surface, no scaling, less dirt, thermal retention, cold weld, hassle-free installation.
2,Longer performance life, easy and quick maintenance
3,Easy handling, lower installation costs
Typical Application:
UPVC: Pressure water application for non-potable water:
l Purified water
l Agricultural drainage
l Environmental construction
l Industrial air flow system
l Sterile room ventilation
