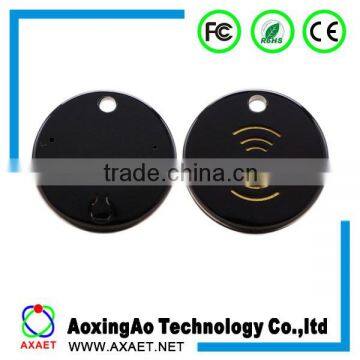

Axaet Ibeacon Bluetooth Beacon Oem TI CC2541 Ibeacon for IOS and Android

Shenzhen Aoxingao Technology Co., Ltd.

US$ 2.98 - 5.15 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

PC032

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number PC032

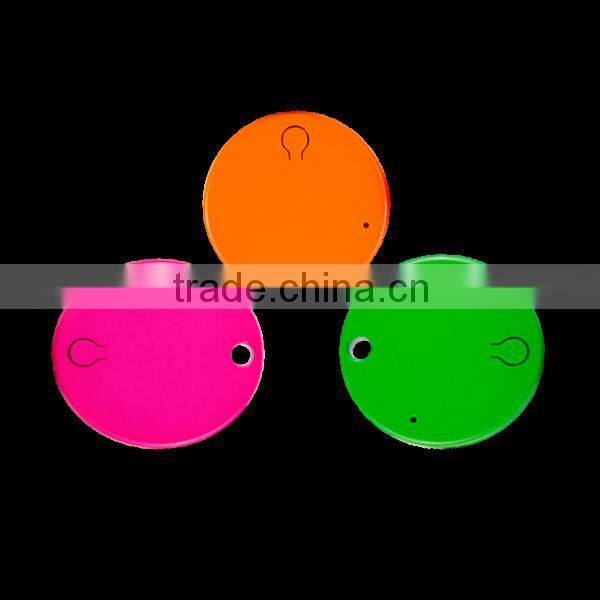

Axaet ibeacon bluetooth beacon oem TI CC2541 ibeacon for IOS and Android

Product description of Ibeacon

Axaet ibeacon bluetooth beacon oem TI CC2541 ibeacon for IOS and Android

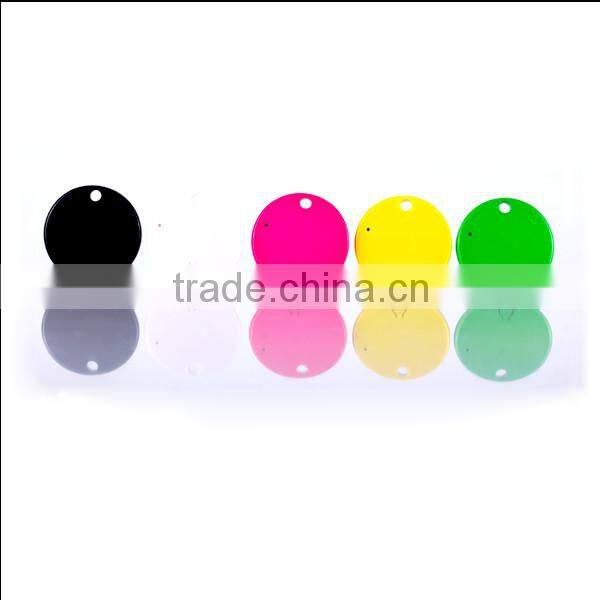

1, Easy and Rapid to customize a casing in very low cost;

2,UUID, Major, Minor, Pairing Password and other parameters can be changed by customer;

3,Beacon with bar code and easy for recognize;

4,Based on TI's CC2541/CR2016,bluetooth low energy module;

5,Support for IOS7.0+,Android 4.3 +;

6,Effected range:5 to 120M ;

7,low energy module for battery life 2 years .

Product instructions of Ibeacon

Axaet ibeacon bluetooth beacon oem TI CC2541 ibeacon for IOS and Android

1, Long press the power button to turn on iBeacon, turn on phone Bluetooth, phone App or Wechat shake,

then it can receive information transmitted from iBeacon.

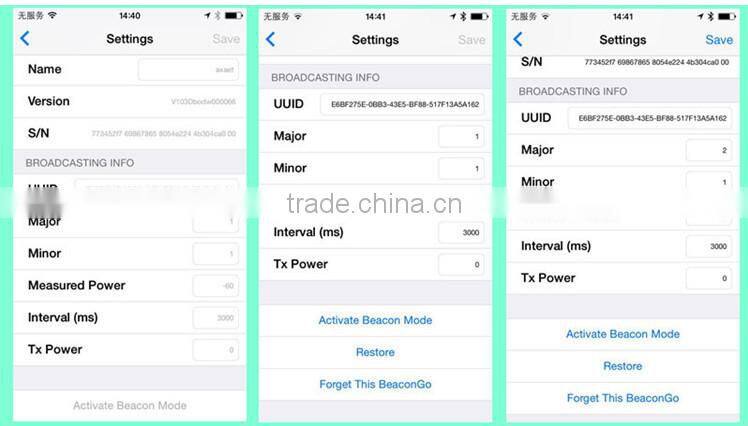

2, Parameter modification. Turn on the iBeacon, for one button iBeacon, press three times the function button,

and long press at the third time; for two button iBeacon, long press the function button. After the Red and

Green flash light, click the App search, then name of the revisable iBeacon parameter with suffix “N” will show

up. Click the name to enter the revisable interface, the hardware will automatically update UUID and related

parameters. When connect successfully, you can modify related parameters. After modification, click enable

and the hardware will automatically shutdown. It means successful modification.

Default Parameter of Ibeacon

Axaet ibeacon bluetooth beacon oem TI CC2541 ibeacon for IOS and Android

Parameter	Default Value
UUID	FDA50693-A4E2-4FB1-AFCF-C6EB07647825
Major	0-65535(Default:10004)
Minor	0-65535(Default:54481)
Measured power	Default 0dBm
Transmission Power	-30To 0dBm(Default:0dBm)
Change Password	8 Characters(Letter Or Number)
Broadcasting Interval	100-2000ms(Default:1000ms)
Serial ID	0-65535 Random
iBeacon Name	1-14 Characters,Default:AXAET Beacon_
Connection Mode	Yes(Connect)No(Disconnect)
Soft Reboot	Default Password:
Battery Service	The Front Battery Symbol,100% Power
