Rotating Torque Measure Rotary Torque Transducer Sensor

Rotating Torque Measure Rotary Torque Transducer Sensor thumbnail-1
Rotating Torque Measure Rotary Torque Transducer Sensor photo-1
US$ 400 - 700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
NS-WTQ1050D
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name CZS
Model Number NS-WTQ1050D
Usage Position Sensor
Theory Resistance Sensor
Output Switching Transducer
Product Description

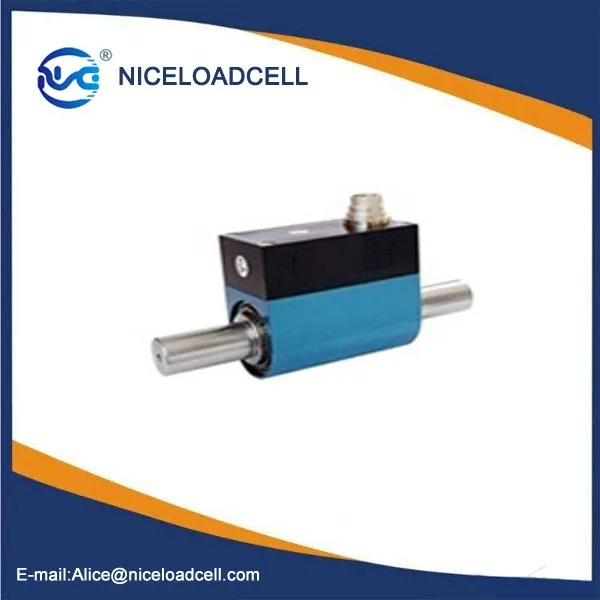

Rotating torque measure rotary torque transducer
Type: rotatary torque transducer

Resistive strain sensitive components and integrated circuits integrated production
Products, high precision, stable and reliable performance.
No collector rings and other wear parts, high-speed long-term operation, reversing an output torque signal,
Both ends linkage,
maximum speed of not more than 4000 rev / min.

Model: NS-WTQ1050D



Rotating torque measure rotary torque transducer
Specifications
Capacity:0～0.1/0.2/0.3/0.5/1/2/3/5 Nm 　　　　
Comprehensive precision：±0.1; ±0.3; ±0.5%F.S(linearity+repeatability+hysteresis)
Rated output: 1.0～2.0 mV/V
Working Temperature: 10～+60 ℃ 　
Temperature compensated range:room temperature ~+60 ℃
Temperature effect on zero:±0.1 %F.S/10 ℃　　　
Excitation voltage :12 VDC　
insulation resistance:2000 MΩ/100VDC 　　　
Input resistance:700±10/350±10 Ω
Output resistance:700±5/350±5 Ω　　
Zero output:0~±1 %F.S
Safety overload: 120 %F.S　　　
Cable length: 3 m
Cable connection:　　

　　   Input（Excitation+） RED　　Output（Signal+) YELLOW　　

           Output（Signal-) WHITE           Input （Excitation-）GREEN


Related Products
Our Company

Certifications
Packing & Delivery
FAQ


Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
